Filmtec Replacement Parts

Part-number

Description

Description / Application

Quantity

Reverse Osmosis

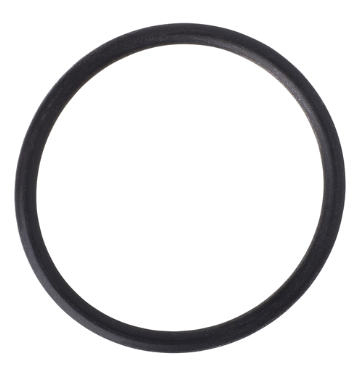

102284 O-ring Size 2-125 for OLD 1.5" ID tube coupler, 2 required per coupler 30

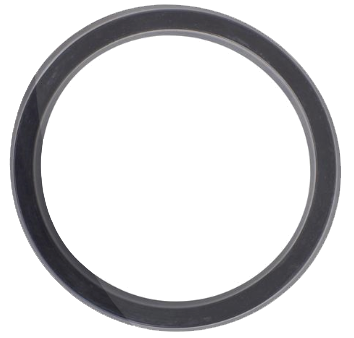

104038 Brine Seal Used for 2.5" diameter elements  10
151705 O-ring O-ring for 1.125" couplers , Size 3-912, 2 required per coupler. Fits current couplers 266935 and 255289 as well as older styles 129768 and 103971 30
216370 O-ring O-ring for coupler 259171 , Size 2-218, 2 required per coupler 10
232009 O-ring O-ring for iLEC endcaps , Size 2-225, 1 required per element or adapter 5

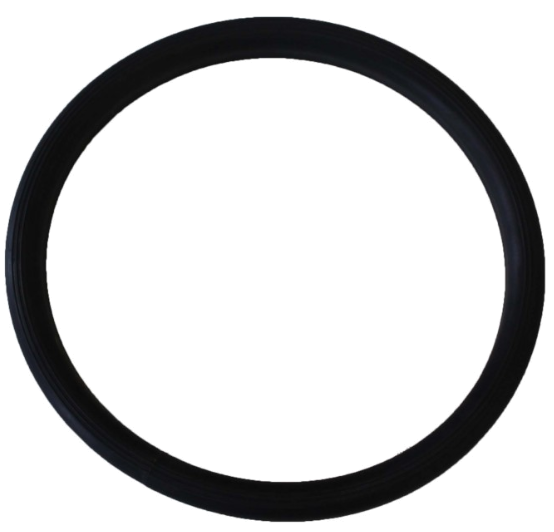

305289 Brine Seal Used for all 8" diameter elements ,  Seal pc epr brine 8.0 u-cup 30
89255 O-ring O-ring for 89055 and 89048 , Size 2-210, 2 required per coupler 30
94109 Brine Seal 4" Brine Seal , Used for all 4" diameter elements 10

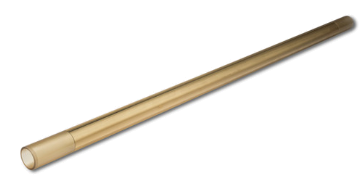

110038658 Spacer 8" PS HSRO Spacer Tube with 1.125" ID ,
Polysulfone tube for HSRO systems utilizing 8-inch elements
1
11038659 Spacer 4" PS HSRO Spacer Tube with 0.5" ID , Polysulfone tube for HSRO systems utilizing 4-inch elements 1

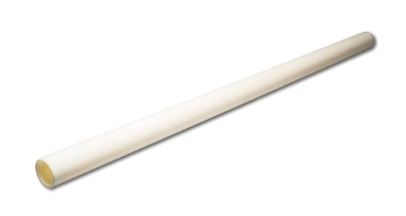

121302 Spacer 8" Large Spacer Tube with 1.5" ID , For Low Energy and Nanofiltration systems 1

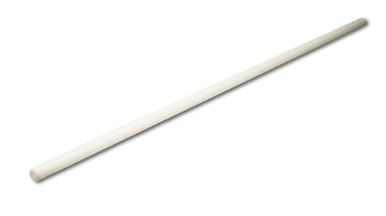

124513 Spacer 4" Spacer Tube with 0.5" ID , For systems using 4" diameter elements 1
124515 Spacer 8" Spacer Tube with 1.125" ID , For systems with seawater elements and most brackish water elements 1
196309 Coupler 8" "Step-Down" Coupler ,
Couples elements with a 1.125" ID tube to elements with 1.5" ID tubes
1
255289 Coupler 8" Full-fit Element Coupler , Polysulfone coupler for 8-inch full-fit elements. Uses size 3-912 o-rings 1
259171 Coupler 8" Large Tube Coupler- 1.5" ID Tube , Coupler for XLE-440. Uses size 2-218 o-rings 1
313198 Coupler 8" BW Coupler- 1.125" ID Tube , coupler for BW30-365, BW30-400, LE-400. Use with all other 8" diameter seawater elements and most 8" brackish water elements. Uses size 3-912 o-rings 1
89048 Coupler 4" HSRO Full-fit Element Coupler , Polysulfone coupler for connecting 4" HSRO full-fit elements. Uses size 2-210 o-rings 1
89055 Coupler 2.5" and 4" Element Coupler , Used for 2.5" and 4" diameter elements. Uses size 2-210 o-rings 2
249095 Adapter 8" Adaptor for iLEC Endcaps (with o-ring) , Downstream side of housing; Fits CodeLine housings 1
249101 Adapter 8" Adaptor for iLEC Endcaps (no o-ring) , Upstream side of housing; Fits CodeLine housings 1
245831 Puller tool Puller Tool for elements with iLEC endcaps , Helps ease the removal of elements 1
153407 Lubricant Lubricant Dow Corning 111 , Used for lubricating o-rings or brine seals 12
299916 Band Clamp Ratcheting Band Clamp for elements with iLEC endcaps , for elements with iLEC endcaps. Helps ease the loading of elements 1

Ultra-filtration

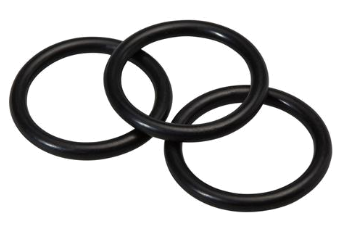

10385715 O-ring O-Ring for EDI-310 Concentrate Nipple, Dilute Nipple, and Electrolyte Connector 10

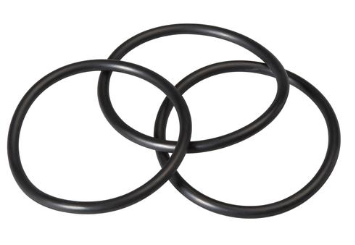

10385905 O-ring O-ring sealing on the inter-connector for the top end cap. Fits SFP/SFD-2860, 2880, and IntegraPac modules 10

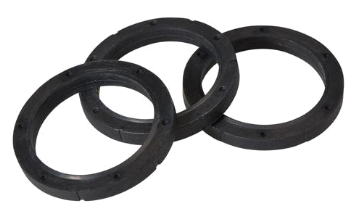

10385958 O-ring Composite O-ring for air quick tube connector for all Dow modules 10

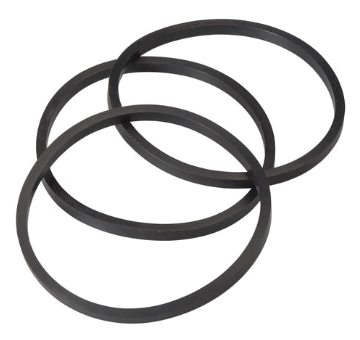

10385962 Rectangular Seal Seal between interconnector or end flat for SFP/SFD-2860 and 2880 modules 10

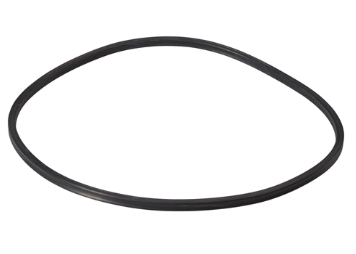

10385963 X-ring Seal between the module end cap and the module vessel. Fits all Dow modules 5

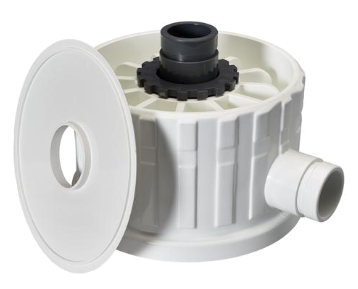

10380901 Top End Cap Includes full end cap, interconnector tube, interconnector o-ring (2), threaded bushing, rectangular seal, and head cover. Fits SFP/SFD-2860 and 2880 modules 1

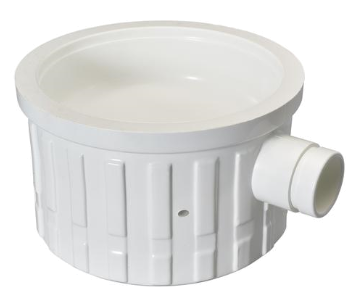

10380902 Bottom End Cap Includes end cap, end flat, threaded plug, threaded bushing, rectangular seal, and composite o-ring for air connector. Fits SFP/SFD-2860 and 2880 modules 1

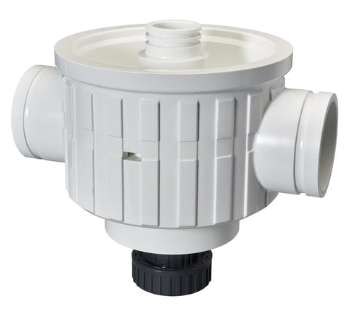

10410127 IntegraPac Top End Cap Includes top end cap and interconnector o-ring (2) for all IntegraPac modules 1

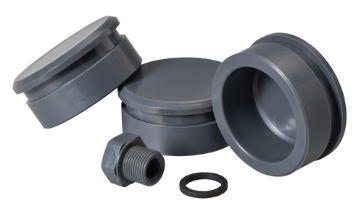

10380911 Isolation Package Includes 3 port plugs , 3/8" threaded air plug, and composite o-ring. Fits IntegraFlo, SFP/SFD-2860, and 2880 modules 5

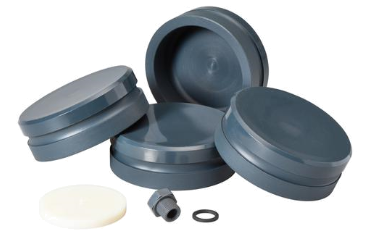

11111893 Isolation Package Includes DN40 filtrate port plug, 4 port plugs(4"), 3/8" threaded air plug, and composite o-ring. Fits all IntegraPac modules 1

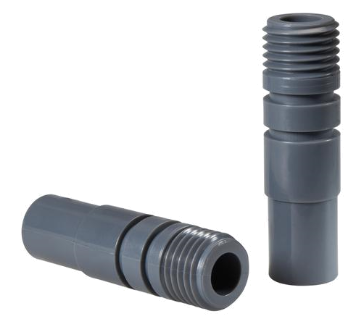

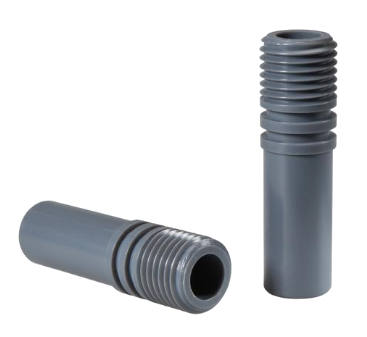

10385720 Nipple Threaded concentrate nipple for the EDI-310 module 10
10385721 Nipple Threaded dilute chamber nipple for the EDI-310 module 10

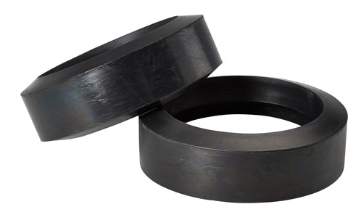

10385964 Coupling gasket Rubber gasket for sealing the 2" port couplings. Fits all Dow modules 6

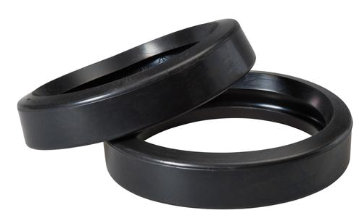

10410855 Coupling gasket Rubber gasket for sealing 4" port couplings for all IntegraPac modules 2

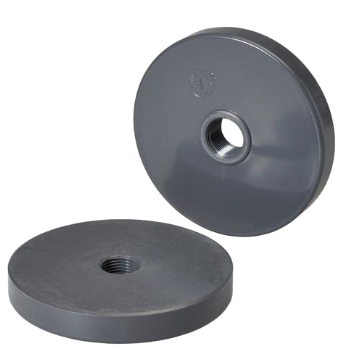

10407245 End Flat 2.0 Bottom end flat, version 2.0 matched based on serial number of SFP/SFD-2860 and 2880 modules 5

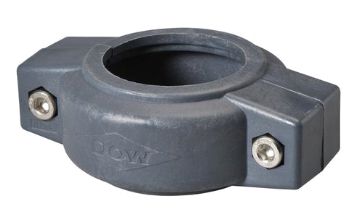

10404024 2" Coupling Set Victaulic couplings with hex head screw and nuts. Fits all Dow modules 3

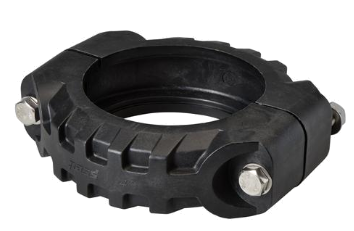

11111891 IntegraPac 4" Coupling Set Victaulic couplings with hex head screw and nuts. Fits all IntegraPac modules 2

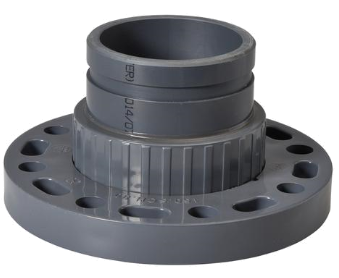

101106877 IntegraPac End Flange (4" NPS) End Flange 4" NPS for all IntegraPac skids 1

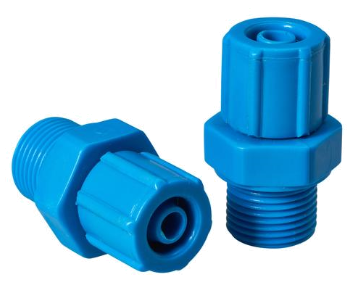

10387811 Quick Tube Connector Threaded quick tube connector for UF bottom air port. Fits 3/8" or 10mm diameter tube. Fits IntegraFlo, SFP/SFD-2860, and 2880 modules 10

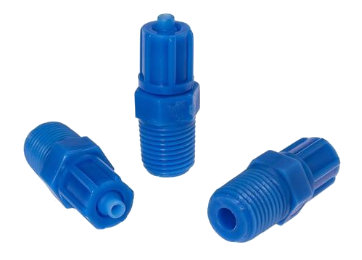

10407241 EDI 310 Electrolyte Connector Threaded electrolyte connector for the EDI-310 module 10

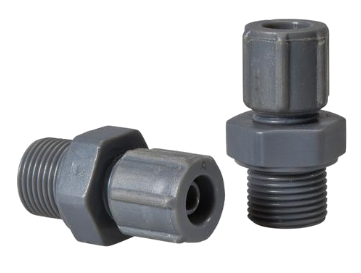

10410926 IntegraPac Quick Tube Connector Threaded 3/8" air connect for all IntegraPac modules 10

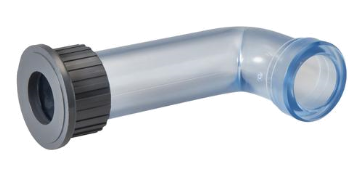

10409998 IntegraPac Filtrate Pipe Elbow Transparant filtrate pipe elbow for all IntegraPac modules 1

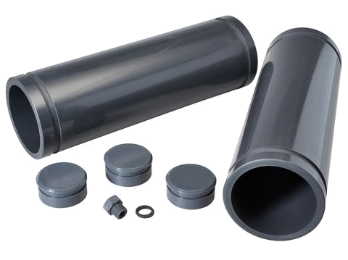

10412272 IntegraPac Spare Bay Kit Kit includes 2" Coupling Set with plug, 2 spacer pipes, and 3/8" air plug with composite O-ring 1

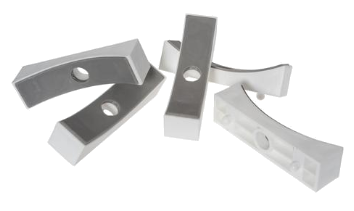

10411893 Module saddle Module saddle for all UF products 5

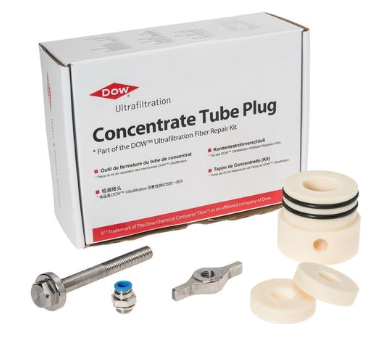

10380918 Fiber Repair Kit I Concentrate tube plug for all Dow modules. Air quick connector included 1

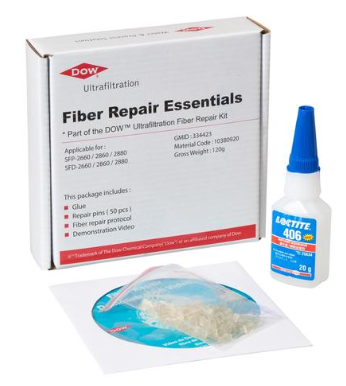

10380920 Fiber Repair Kit III Fiber repair essentials: 30 repair pins with Loctite 406 glue 1
Dow-Filmtec spares
Overview Filmtec Parts

For more information or quotation, please contact us: Feedback Form or call us on +31 152 610 900
