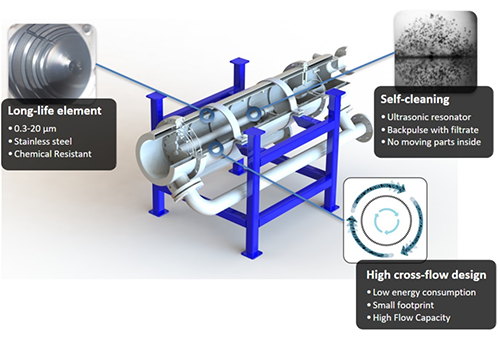

Self Cleaning Cross-Flow Microfiltration
The filtration systems are designed for flow rates from 5 up to 200 m3/hr for containerized system. It is distinguished by its ability to operate with relatively high solids loadings up to 1,000 mg/l with filtration capabilities down to 0.3 µm particulates.
For perspective, most other products in this class operate with less than 50 mg/l loadings. The elements and housings are steel and can be made with chloride corrosion resistant alloys. Although such performance can has opportunities in many markets, thus far, the most pull has been from marine & power generation flue gas and upstream oil and gas applications.
| Capacity (m3/h) | 0.5 to 5 | 5 to 35 | 40 to 280 |
| Separation Size (μm) | 0.3-20 | ||
| Method | Patented High Cross-Flow Filtration | ||
| Self-Cleaning Feature | Backpulse and Integrated Ultrasonic | ||
| Feed Pressure | 0.5 to 1.5 Bar (50 to 150 Kpa) | ||
| Temperature (oC) | 85 | ||
| pH Range | 2-11 | ||
| Weight (Kg approx.) | 40 | 200 | 1600 |
| Measures (cm approx.) | 50x50x100 | 100x200x100 | 200x400x200 |
Applications
| 1. Providing solids-free water for reverse osmosis |
| 2. Treating flue gas wastewater |
| 3. Cooling water treatment |
| 4. Replacing existing cartridge/bag filters |
| 5. Treating wastewater before discharge |
| 6. Recirculating process water |
