Grundfos SQE 3-65
Product ID: 96160521
Request Price and Availability
Grundfos SQE 3-65
Grundfos SQE 3-65
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 0 .. 35 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 10700 rpm |

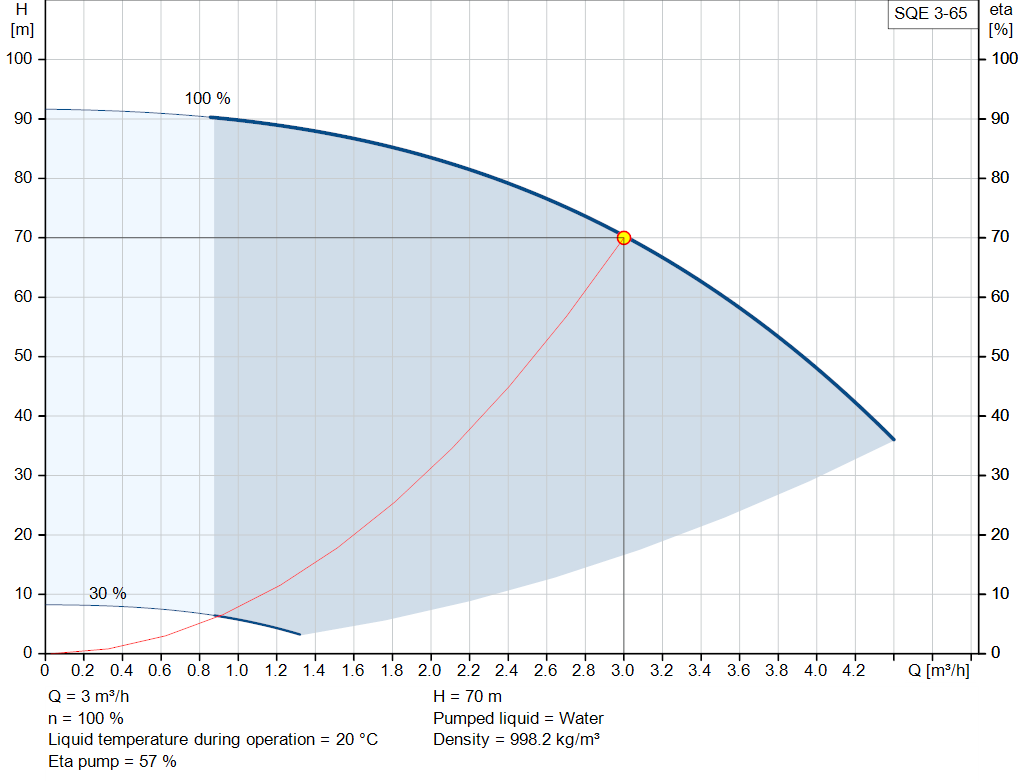

| Rated flow: | 3 m³/h |
| Rated head: | 70 m |
| Approvals: | CE,PCBC,RCM,EAC,CN Rohs Exempt,Morocco,UKCA,SEPRO |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Composite |
| ZYTEL 70G30 HSLR PA6.6-GF30 | |
| Motor: | Stainless steel |
| DIN W.-Nr. 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum operating pressure: | 15 bar |
| Pump outlet: | RP1 1/4 |

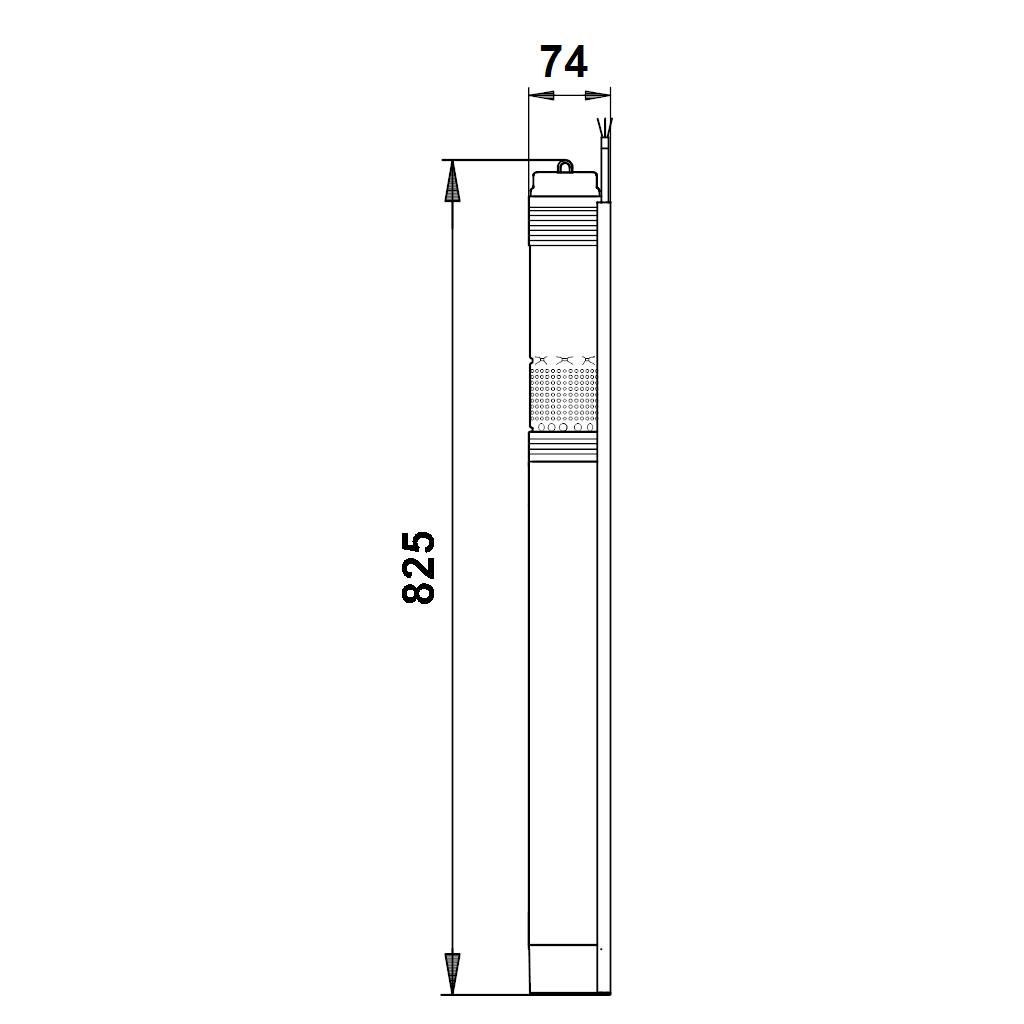

| Minimum borehole diameter: | 76 mm |
| Electrical data: | |
| Motor type: | MSE3 |
| Power input - P1: | 1.55 kW |
| Rated power - P2: | 1.15 kW |
| Power (P2) required by pump: | 1.1 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 200-240 V |
| Rated current: | 8.4 A |
| Power factor: | 1.00 |
| Rated speed: | 10700 rpm |
| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Length of cable: | 1.5 m |
| Motor No: | 96160855 |
| Others: | |
| Net weight: | 6.1 kg |
| Gross weight: | 6.4 kg |
| Shipping volume: | 0.01 m³ |
Applications
- Domestic ground water intake — Groundwater is essential for water supply. Providing a reliable, fresh supply of water for all homeowners is equally essential, particularly for those whose water source is a private groundwater well.
- Domestic water pressure boosting — Low or varying water pressure in the home? A water pressure pump solves the very common problems of low-pressure showers and trickling taps that reduce comfort in one- or two-family homes.
- Ground water intake — You require a cost-effective, reliable and energy-optimised submersible pumping solution for borehole installations. Our pumps and pump systems are optimised for the highest performance and reliability for groundwater installations.
category
- Submersible groundwater pumpsGrundfos submersible pumps represent advanced hydraulic design and offer high efficiency, high resistance to sand and other abrasives, motor burnout protection and easy maintenance. Made entirely of corrosion-resistant stainless steel, Grundfos submersible pumps are ideal for applications including groundwater supply, irrigation, groundwater lowering and pressure boosting.
