Grundfos SP 11-15 R
Product ID: 98899923
Request Price and Availability
Grundfos SP 11-15 R
Grundfos SP 11-15 R
Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in high-grade stainless steel, EN 1.4539 (AISI 904L), that ensures high corrosive resistance. This pump does not carry drinking water approval.
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |

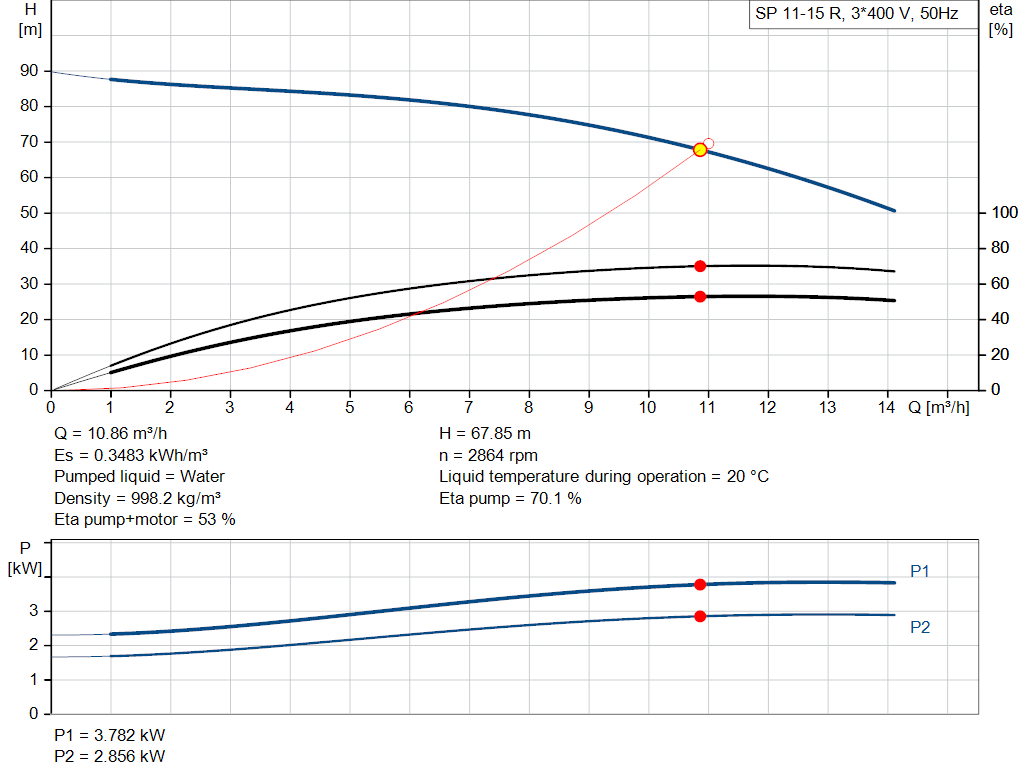

| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |
| Rated flow: | 11 m³/h |
| Rated head: | 69.6 m |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Approvals for motor: | CE,EACMOROCCO,UKCA,SEPRO,RCM |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T40 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4539 | |
| AISI 904L | |
| Impeller: | Stainless steel |
| EN 1.4539 | |
| AISI 904L | |
| Motor: | Stainless steel |
| EN 1.4539 | |
| Shaft seal: | SiC/SiC |

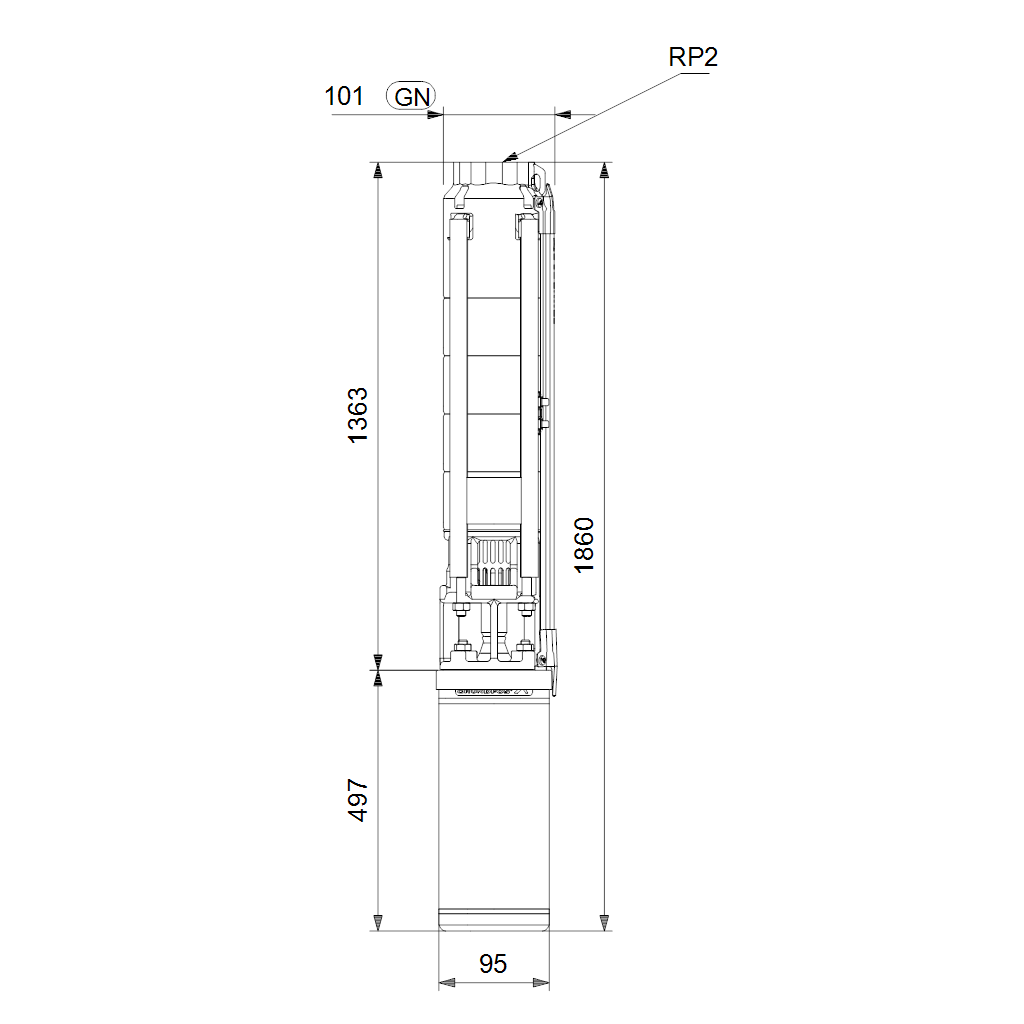

| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Maximum operating pressure: | 60 bar |
| Maximum outlet pressure: | 9.2 bar |
| Type of connection: | Rp |
| Size of connection: | 2 inch |
| Motor diameter: | 4 inch |
| Minimum borehole diameter: | 105 mm |

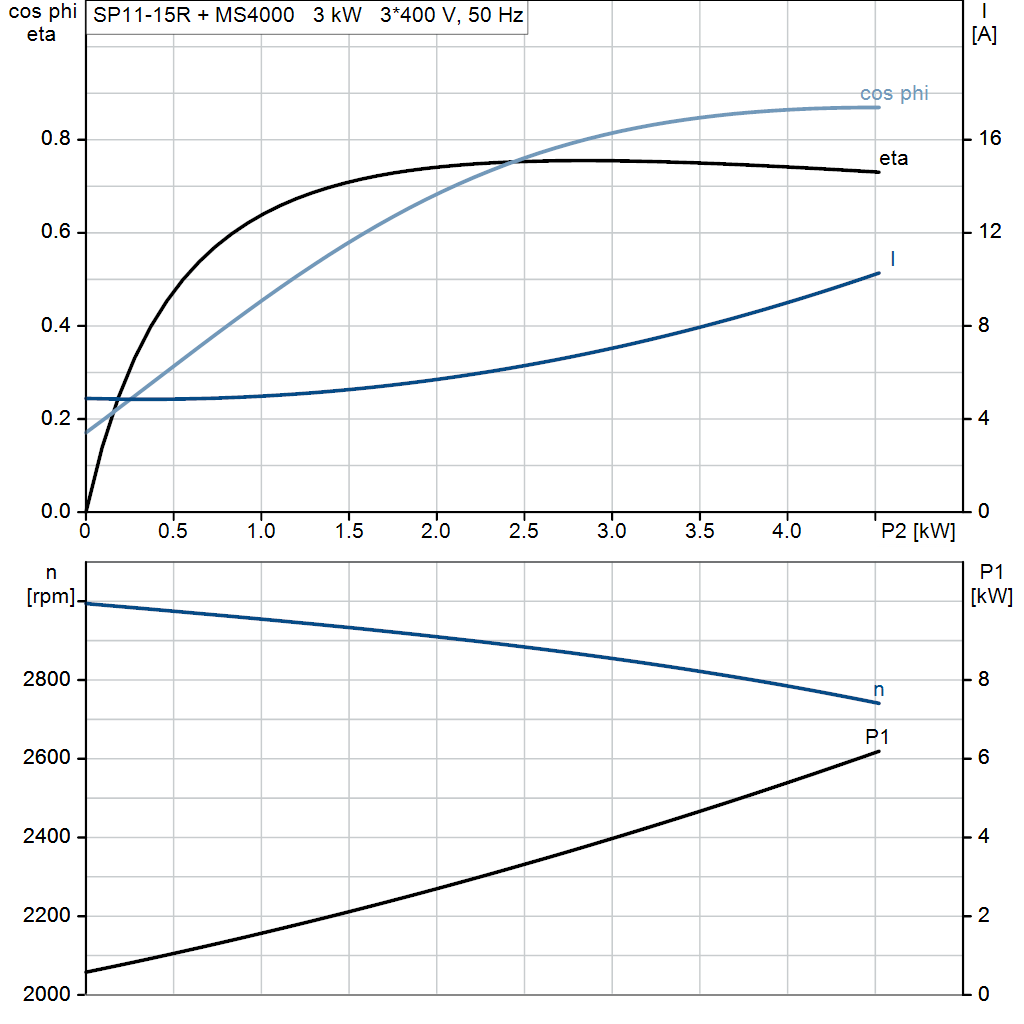

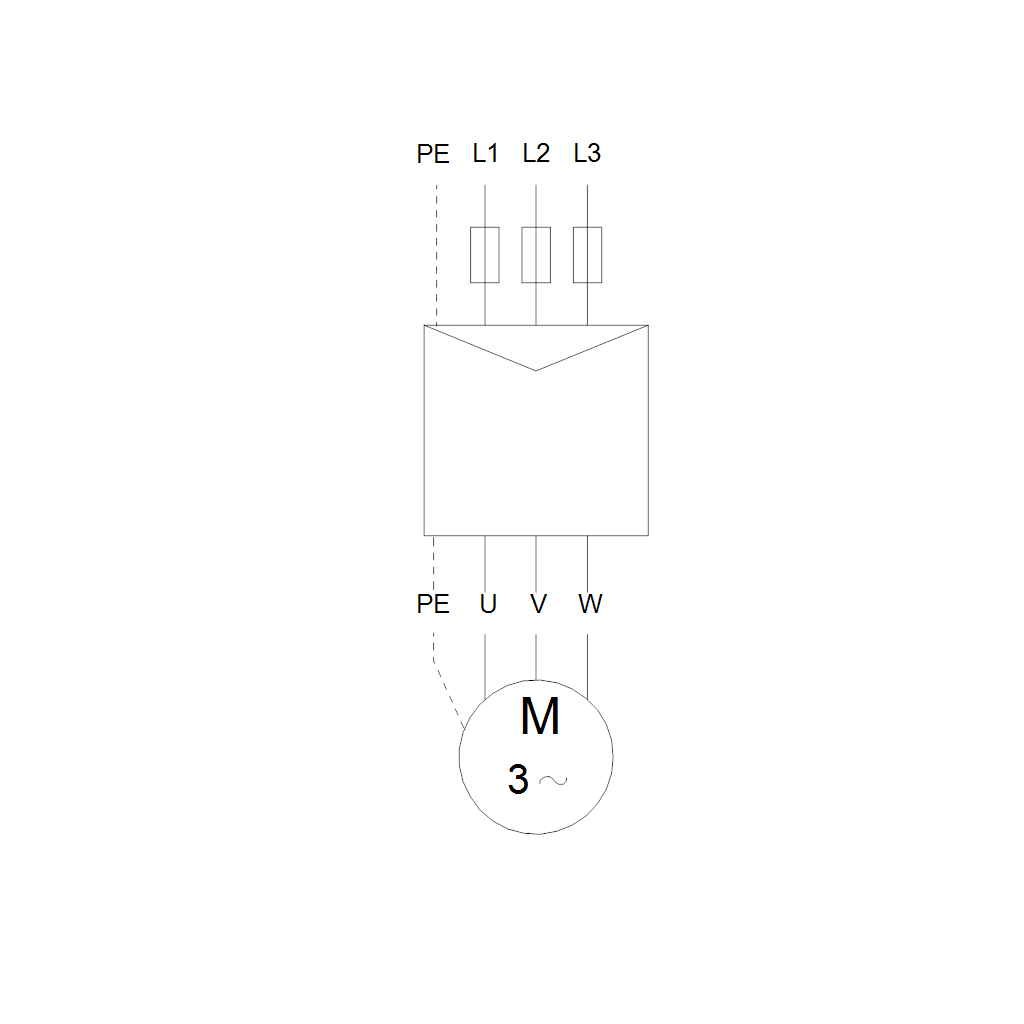

| Electrical data: | |
| Motor type: | MS4000 |
| Motor flange design: | NEMA |
| Rated power - P2: | 3 kW |
| Power (P2) required by pump: | 3 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Rated current: | 7.7-7.9-8.1 A |
| Starting current: | 430-450-460 % |
| Cos phi - power factor: | 0.86-0.81-0.77 |
| Rated speed: | 2830-2850-2870 rpm |
| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | No |
| Length of cable: | 2.5 m |
| Power cable type: | FLAT |
| Motor No: | 7C192708 |
| Windings: | Enameled |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.60 |
| Net weight: | 33.1 kg |
| Gross weight: | 38.7 kg |
| Shipping volume: | 0.068 m³ |
| Country of origin: | DK |
| Custom tariff no.: | 84137029 |
| Environmental approvals: | WEEE |
Spare Parts
| Part Number | Product Name |
|---|---|
| 98766927 | Kit, Wear parts 1 Stg |
| 98766933 | Kit, Wear parts 5 Stg |
| 98766939 | Kit, Wear parts 10 Stg |
| 98766947 | Kit, Wear parts 50 Stg |
