Grundfos SP 14-4 R
Product ID: 98899858
Request Price and Availability
Grundfos SP 14-4 R
Grundfos SP 14-4 R
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 60 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |

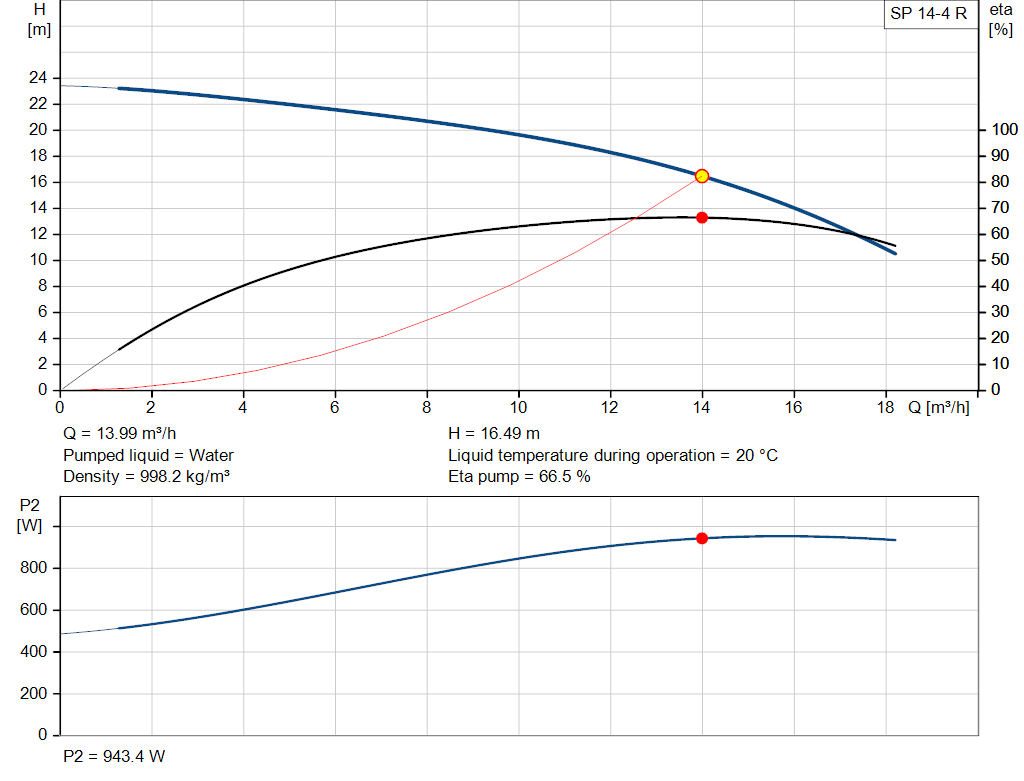

| Rated flow: | 14 m³/h |
| Rated head: | 16.5 m |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Curve tolerance: | ISO9906:2012 3B |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4539 | |
| AISI 904L | |
| Impeller: | Stainless steel |
| EN 1.4539 | |
| AISI 904L | |
| Installation: | |
| Maximum operating pressure: | 15 bar |
| Maximum outlet pressure: | 2.5 bar |
| Type of connection: | Rp |

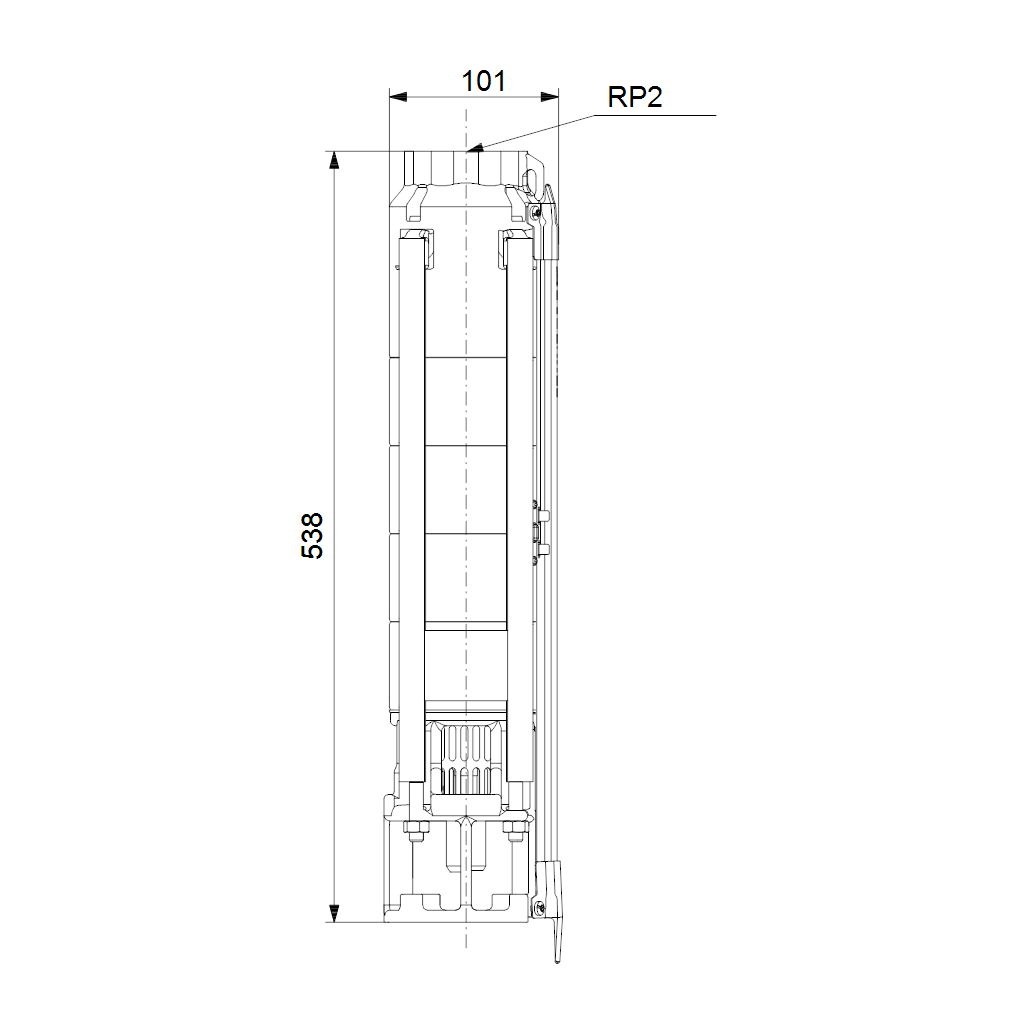

| Size of connection: | 2 inch |
| Motor diameter: | 4 inch |
| Minimum borehole diameter: | 105 mm |
| Electrical data: | |
| Motor flange design: | NEMA |
| Power (P2) required by pump: | 1.1 kW |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.50 |
| Net weight: | 6.6 kg |
| Gross weight: | 7.7 kg |
| Shipping volume: | 0.011 m³ |
Spare Parts
| Part Number | Product Name |
|---|---|
| 98766927 | Kit, Wear parts 1 Stg |
| 98766933 | Kit, Wear parts 5 Stg |
| 98766939 | Kit, Wear parts 10 Stg |
| 98766947 | Kit, Wear parts 50 Stg |
Applications
- Community water supply — Reliable, sustainable and low-risk community water systems from source to tap, including water management and revenue collection systems, for low-income remote or informal urban settlement areas in developing countries.
- Domestic ground water intake — Groundwater is essential for water supply. Providing a reliable, fresh supply of water for all homeowners is equally essential, particularly for those whose water source is a private groundwater well.
- Domestic water pressure boosting — Low or varying water pressure in the home? A water pressure pump solves the very common problems of low-pressure showers and trickling taps that reduce comfort in one- or two-family homes.
- Ground water intake — You require a cost-effective, reliable and energy-optimised submersible pumping solution for borehole installations. Our pumps and pump systems are optimised for the highest performance and reliability for groundwater installations.
- Irrigation — Our high-efficiency pumping solutions work seamlessly with modern irrigation systems for agricultural and non-agricultural applications and can operate with on- and off-grid energy sources.
category
- Submersible groundwater pumpsGrundfos submersible pumps represent advanced hydraulic design and offer high efficiency, high resistance to sand and other abrasives, motor burnout protection and easy maintenance. Made entirely of corrosion-resistant stainless steel, Grundfos submersible pumps are ideal for applications including groundwater supply, irrigation, groundwater lowering and pressure boosting.
