Grundfos SP 160-3A R
Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in high-grade stainless steel, EN 1.4539 (AISI 904L), that ensures high corrosive resistance. This pump does not carry drinking water approval. The pump is fitted with a 55 kW MMS8000 motor with sand shield, water-lubricated journal bearings and a volume compensating diaphragm. The rewindable motor contruction allows complete access to the windings for easy rewinding. The stator windings are PE/PA insulated made for continous operations (S1). Suitable for temperatures up to 50 °C. The motor is fitted with a mechanical shaft seal. The motor is not fitted with a temperature sensor. If temperature monitoring is desired, a Pt100 or Pt1000 sensor can be fitted. The motor is for direct-on-line starting (DOL).
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 45 °C |
| Max liquid t at 0.15 m/sec: | 40 °C |
| Max liquid t at 0.5 m/sec: | 45 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 3450 rpm |

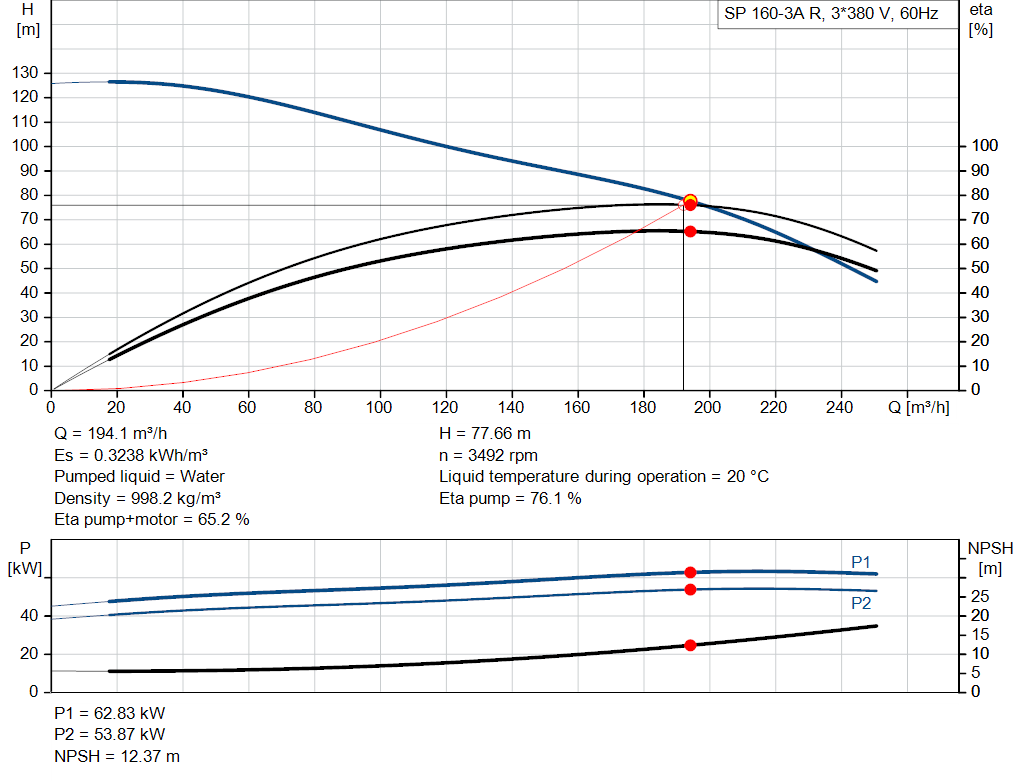

| Rated flow: | 192 m³/h |
| Rated head: | 76 m |
| Shaft seal for motor: | SIC/SIC |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T45 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4539 | |
| AISI 904L | |
| Impeller: | Stainless steel |
| EN 1.4539 | |
| AISI 904L | |
| Motor: | Stainless steel |
| DIN W.-Nr. 1.4539 | |
| AISI 904L | |
| Installation: | |
| Maximum operating pressure: | 60 bar |
| Maximum outlet pressure: | 12.8 bar |
| Type of connection: | Rp |

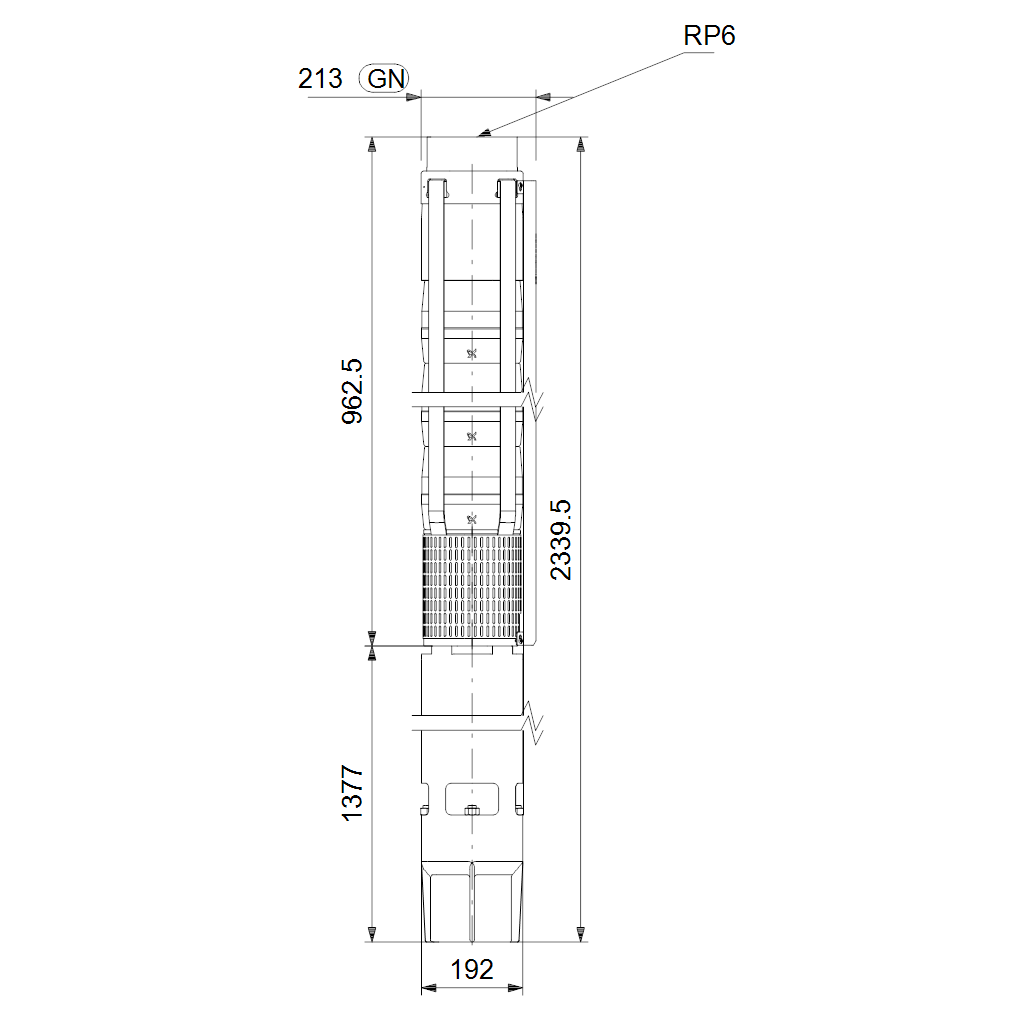

| Size of connection: | 6 inch |
| Motor diameter: | 8 inch |
| Minimum borehole diameter: | 225 mm |
| Electrical data: | |

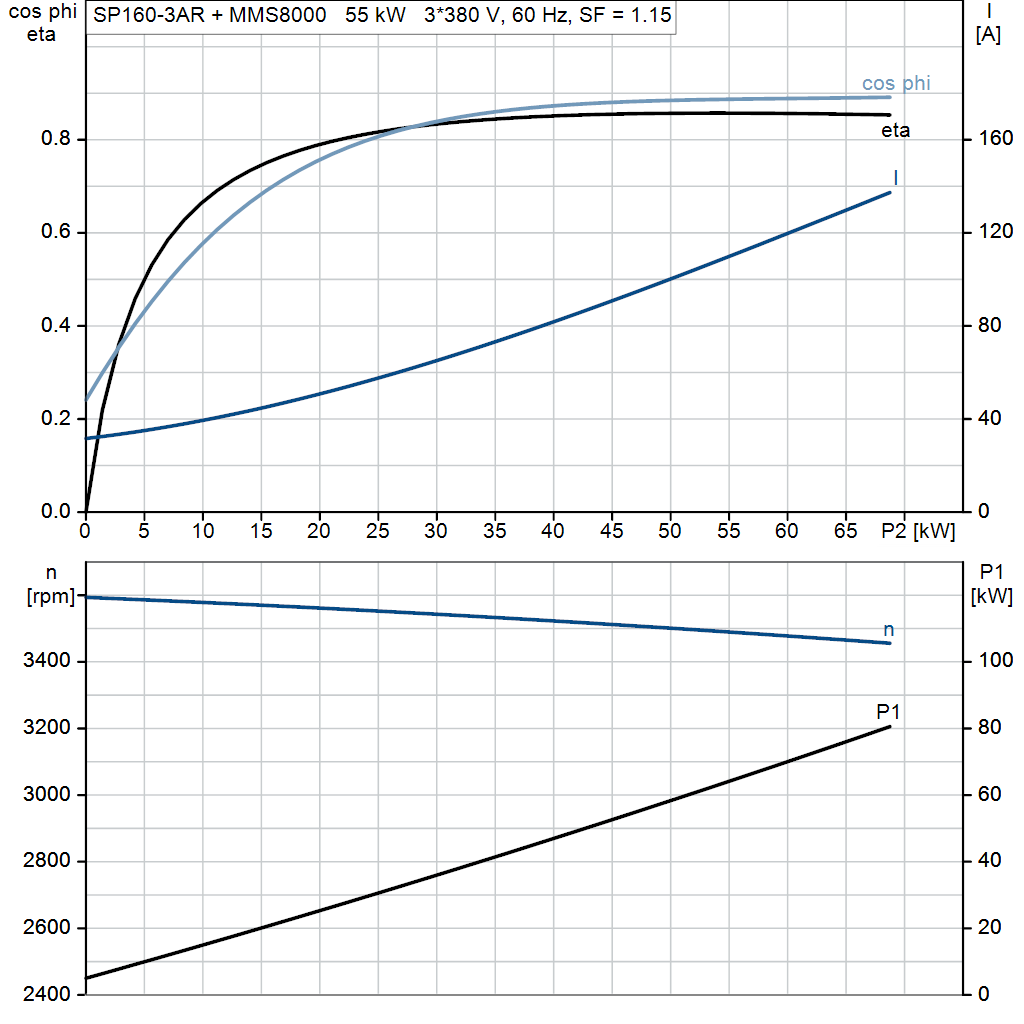

| Motor type: | MMS8000 |
| Motor flange design: | Grundfos |
| Rated power - P2: | 55 kW |
| Power (P2) required by pump: | 55 kW |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 380-400 V |
| Service factor: | 1.15 |
| Rated current: | 133-128 A |
| Starting current: | 600-665 % |
| Cos phi - power factor: | 0.88 |
| Rated speed: | 3495-3505 rpm |

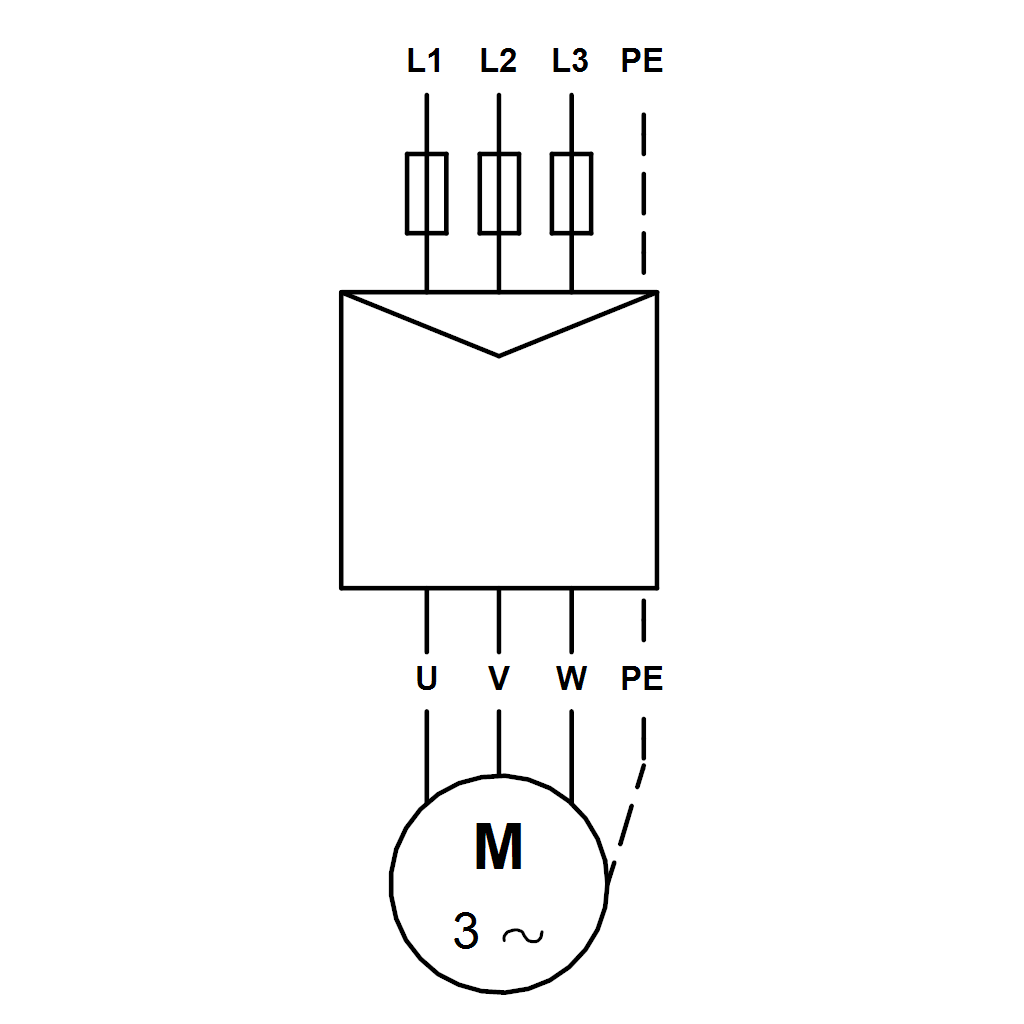

| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Built-in temp. transmitter: | no |
| Motor No: | 96605054 |
| Windings: | PE2/PA |
| Others: | |
| Net weight: | 241 kg |
| Gross weight: | 285 kg |
| Shipping volume: | 0.393 m³ |
| Environmental approvals: | WEEE |
