Grundfos SP 160-2A R
Product ID: 20F218A2
Request Price and Availability
Grundfos SP 160-2A R
Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in high-grade stainless steel, EN 1.4539 (AISI 904L), that ensures high corrosive resistance. This pump does not carry drinking water approval. The pump is fitted with a 22 kW MS6000 motor with sand shield, mechanical shaft seal, water-lubricated journal bearings and a volume compensating diaphragm. The motor is a canned type submersible motor offering good mechanical stability and high efficiency. Suitable for temperatures up to 40 °C. The motor is fitted with the Grundfos Tempcon sensor that, by use of powerline communication together with a MP204 control panel, enables temperature monitoring. The motor is for direct-on-line starting (DOL).
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 40 °C |
| Max liquid t at 0.15 m/sec: | 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |

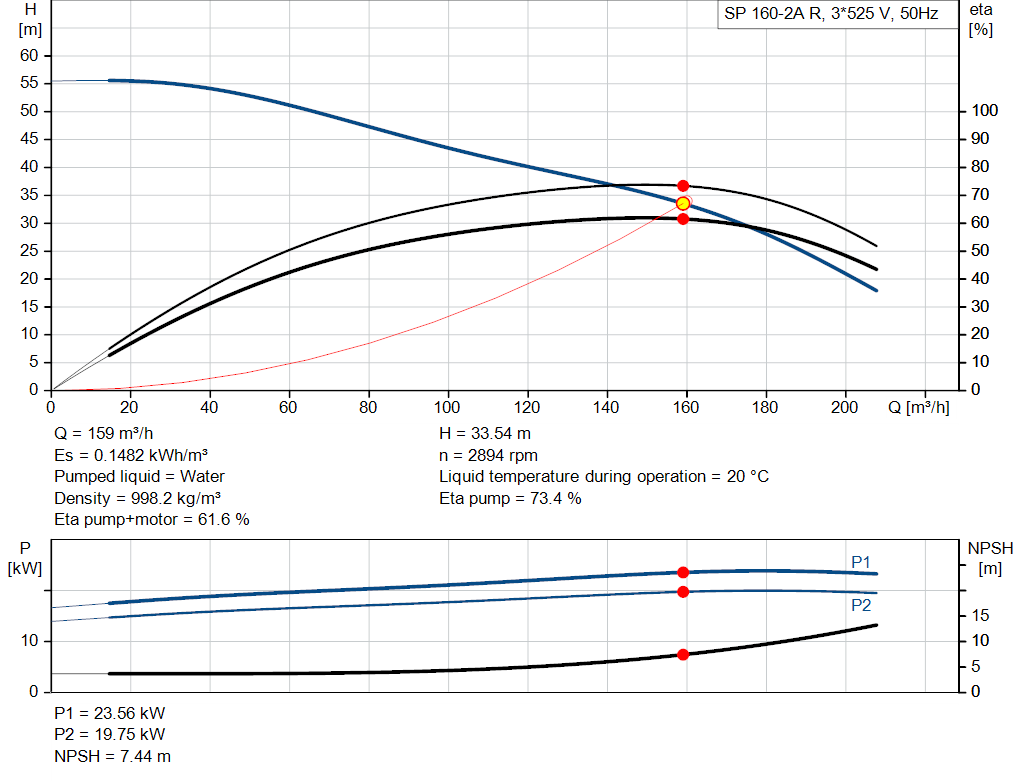

| Rated flow: | 160 m³/h |
| Rated head: | 34 m |
| Shaft seal for motor: | SIC/SICFKM |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T40 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4539 | |
| AISI 904L | |
| Impeller: | Stainless steel |
| EN 1.4539 | |
| AISI 904L | |
| Motor: | Stainless steel |
| DIN W.-Nr. 1.4539 | |
| AISI 904L | |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Maximum operating pressure: | 60 bar |
| Maximum outlet pressure: | 5.5 bar |
| Type of connection: | Rp |

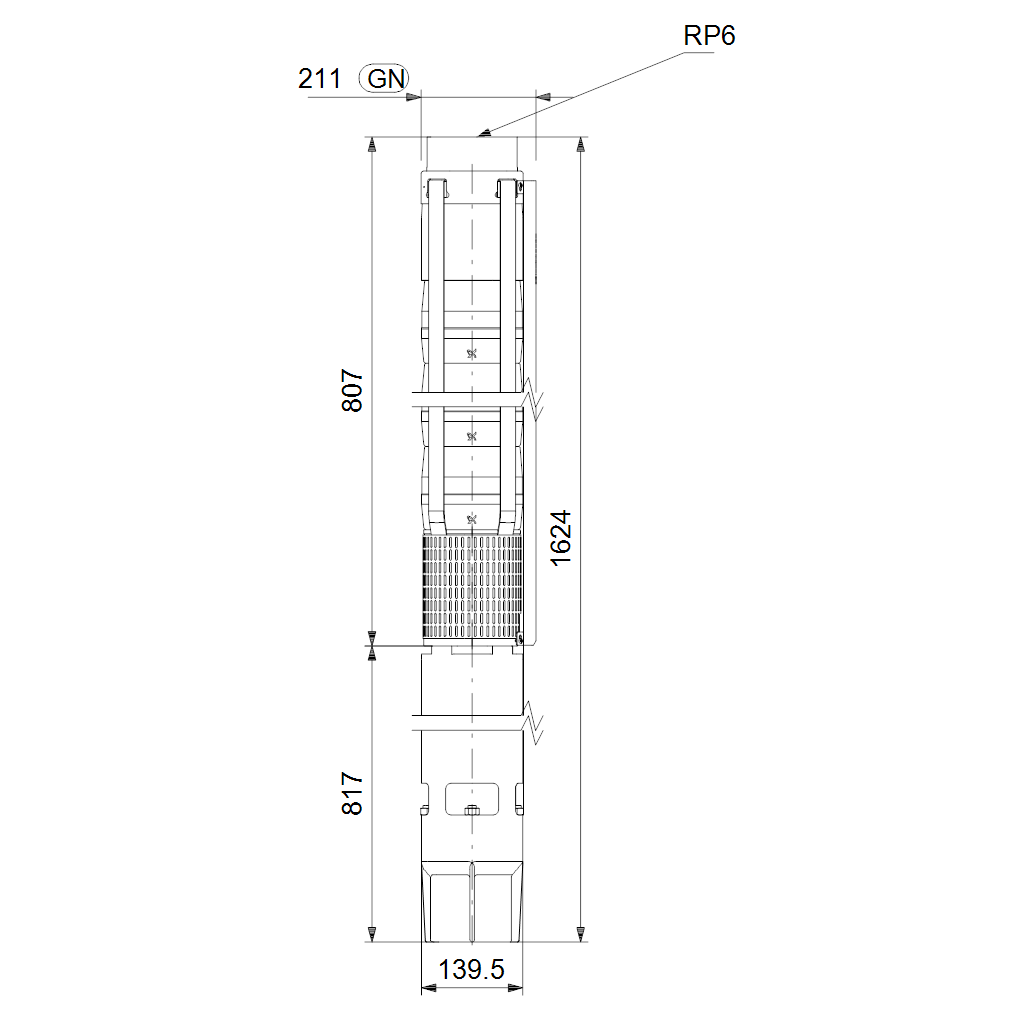

| Size of connection: | 6 inch |
| Motor diameter: | 6 inch |
| Minimum borehole diameter: | 215 mm |
| Electrical data: | |
| Motor type: | MS6000 |
| Motor flange design: | Grundfos |

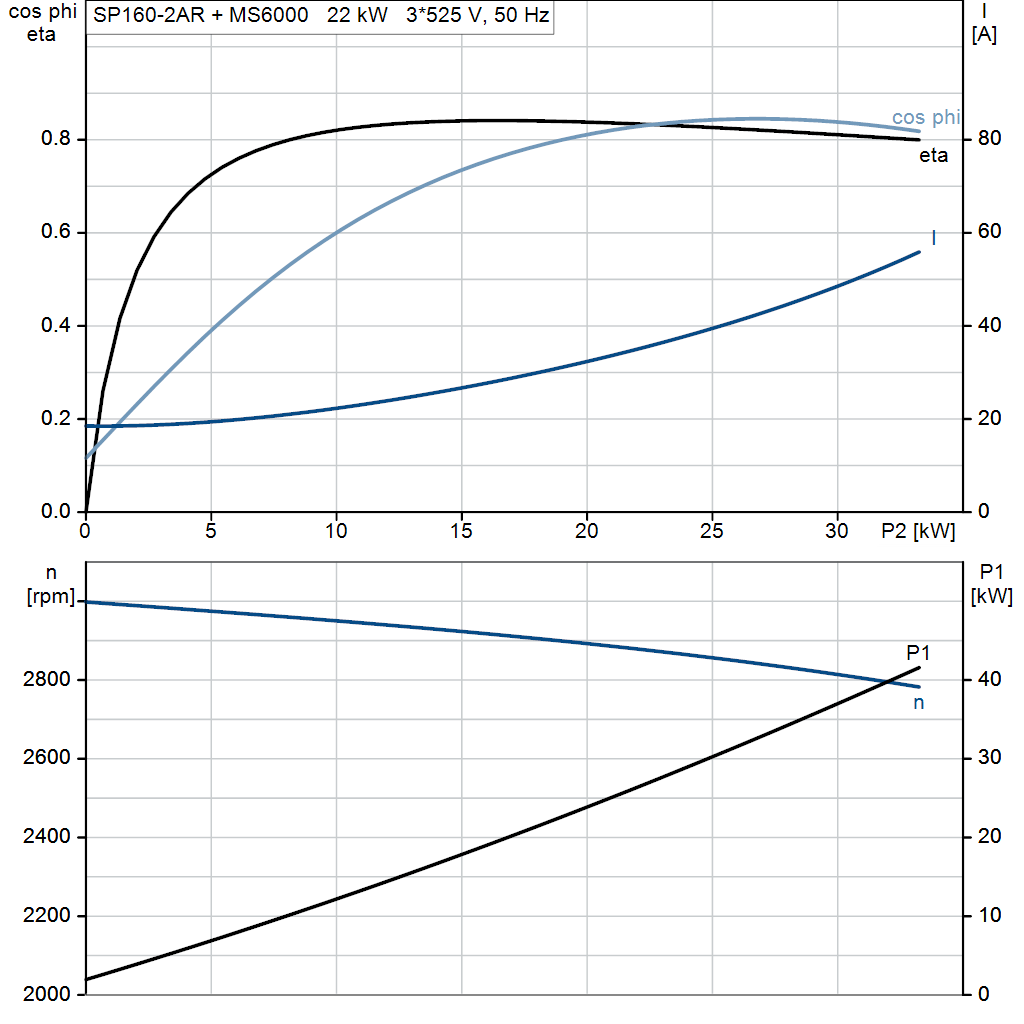

| Rated power - P2: | 22 kW |
| Power (P2) required by pump: | 22 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 500-525 V |
| Rated current: | 37.5-36.5 A |
| Starting current: | 520-560 % |
| Cos phi - power factor: | 0.85-0.82 |
| Rated speed: | 2860-2880 rpm |

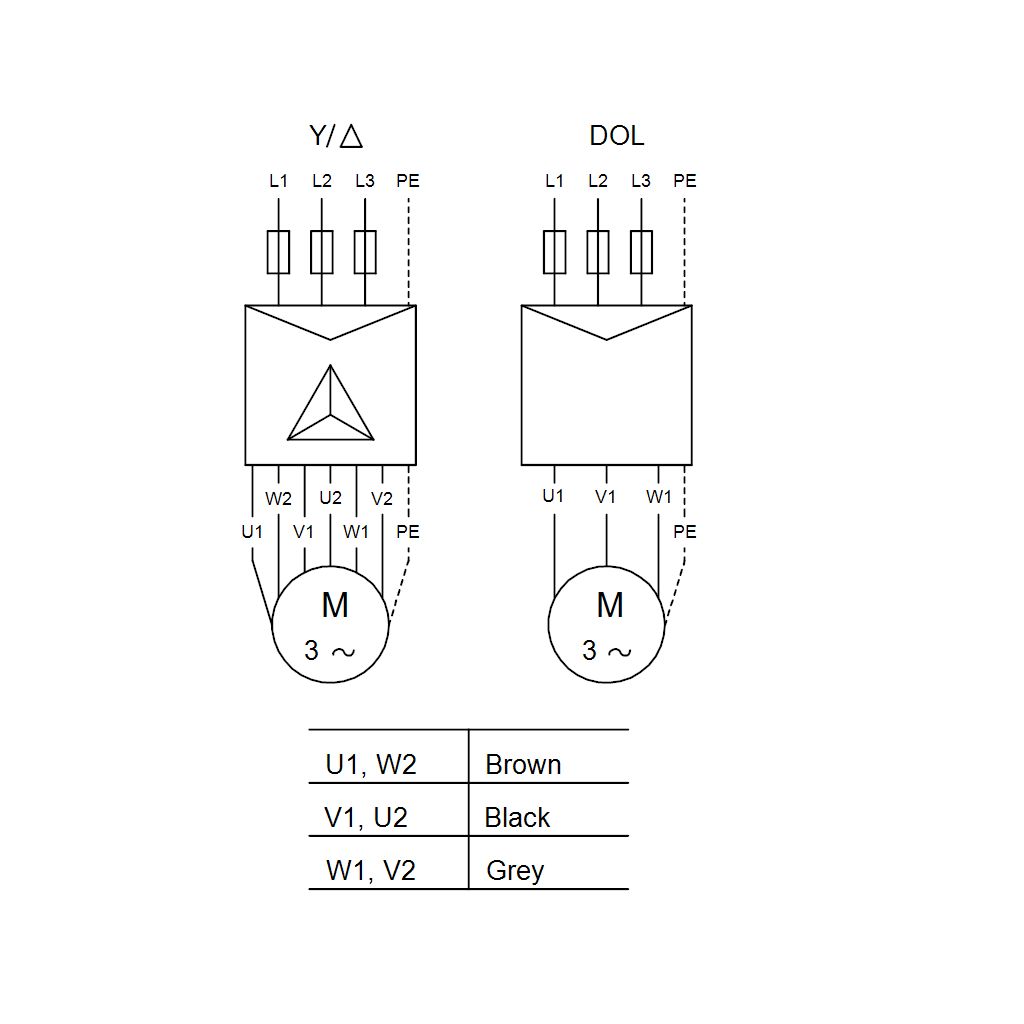

| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in temp. transmitter: | yes |
| Length of cable: | 5 m |
| Power cable type: | FLAT |
| Motor No: | 78185618 |
| Windings: | Enamelled |
| Others: | |
| Net weight: | 107 kg |
| Gross weight: | 137 kg |
| Shipping volume: | 0.232 m³ |
| Environmental approvals: | WEEE |
