Grundfos SP 125-2AA N

Product ID: 17D033B2

Request Price and Availability

Grundfos SP 125-2AA N
Part Number: 17D033B2

Grundfos SP 125-2AA N

Liquid:
Pumped liquid:Water
Liquid temperature range:-15 .. 40 °C
Max liquid t at 0.15 m/sec:40 °C
Selected liquid temperature:20 °C
Density:998.2 kg/m³

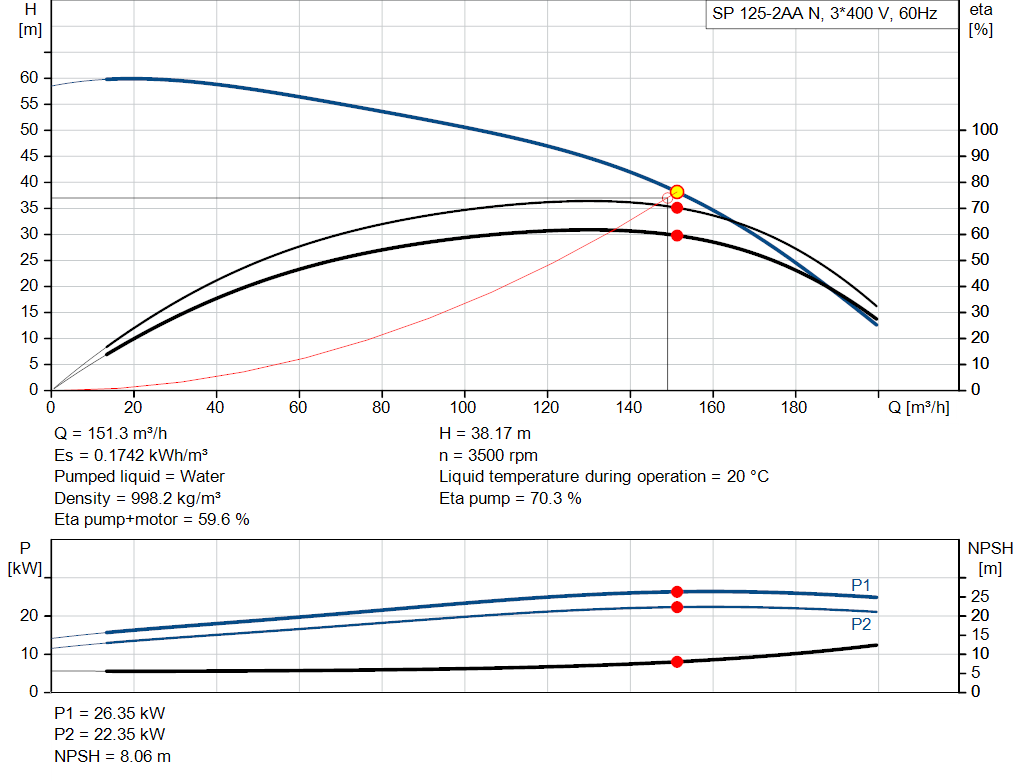

Technical:
Pump speed on which pump data are based:3450 rpm
Rated flow:149 m³/h
Rated head:37 m
Shaft seal for motor:SIC/SICFKM
Approvals:CE,EAC,UKCA,SEPRO,MOROCCO
Curve tolerance:ISO9906:2012 3B
Motor version:T40
Return valve:YES
Materials:
Pump:Stainless steel
 EN 1.4401
 AISI 316
Impeller:Stainless steel
 EN 1.4401
 AISI 316
Motor:Stainless steel
 DIN W.-Nr. 1.4539
 AISI 904L

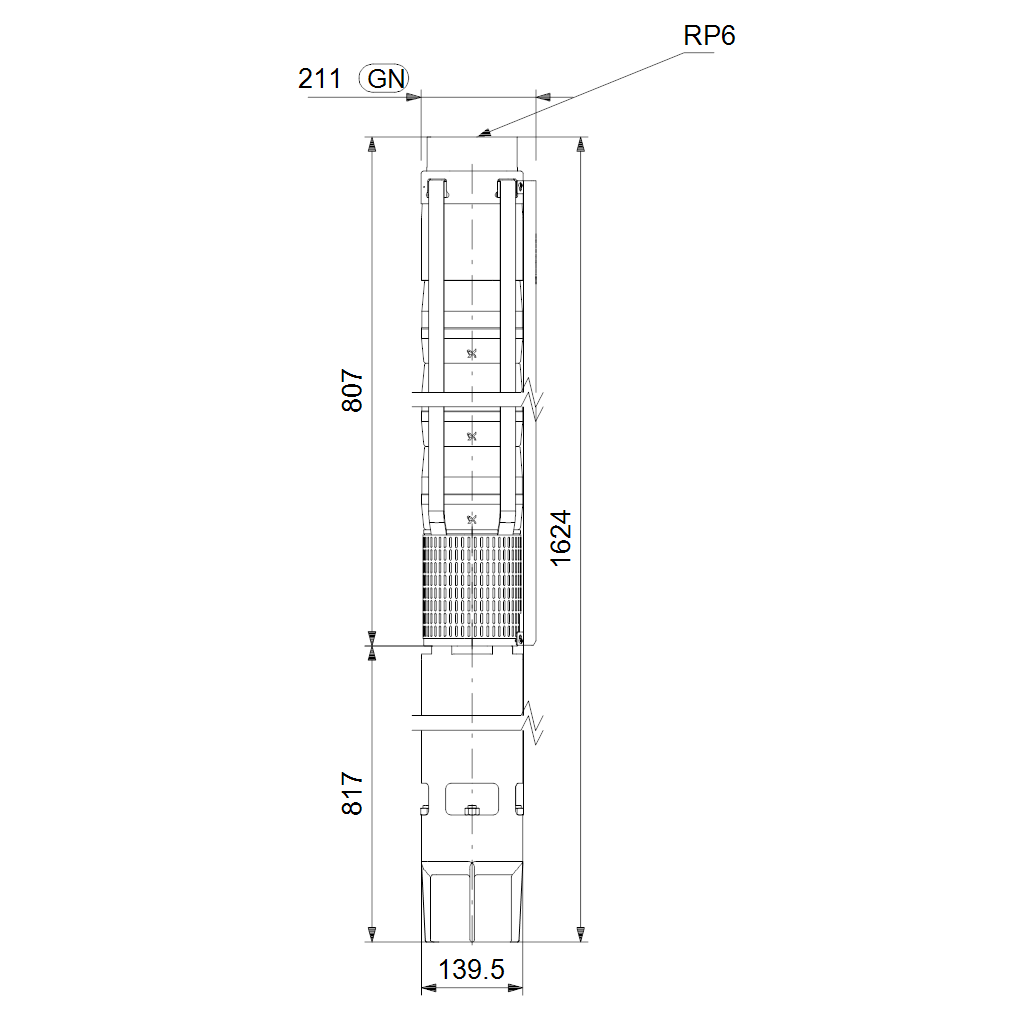

Installation:
Maximum ambient pressure:60 bar
Maximum operating pressure:60 bar
Maximum outlet pressure:5.9 bar
Type of connection:Rp
Size of connection:6 inch
Motor diameter:6 inch
Minimum borehole diameter:215 mm

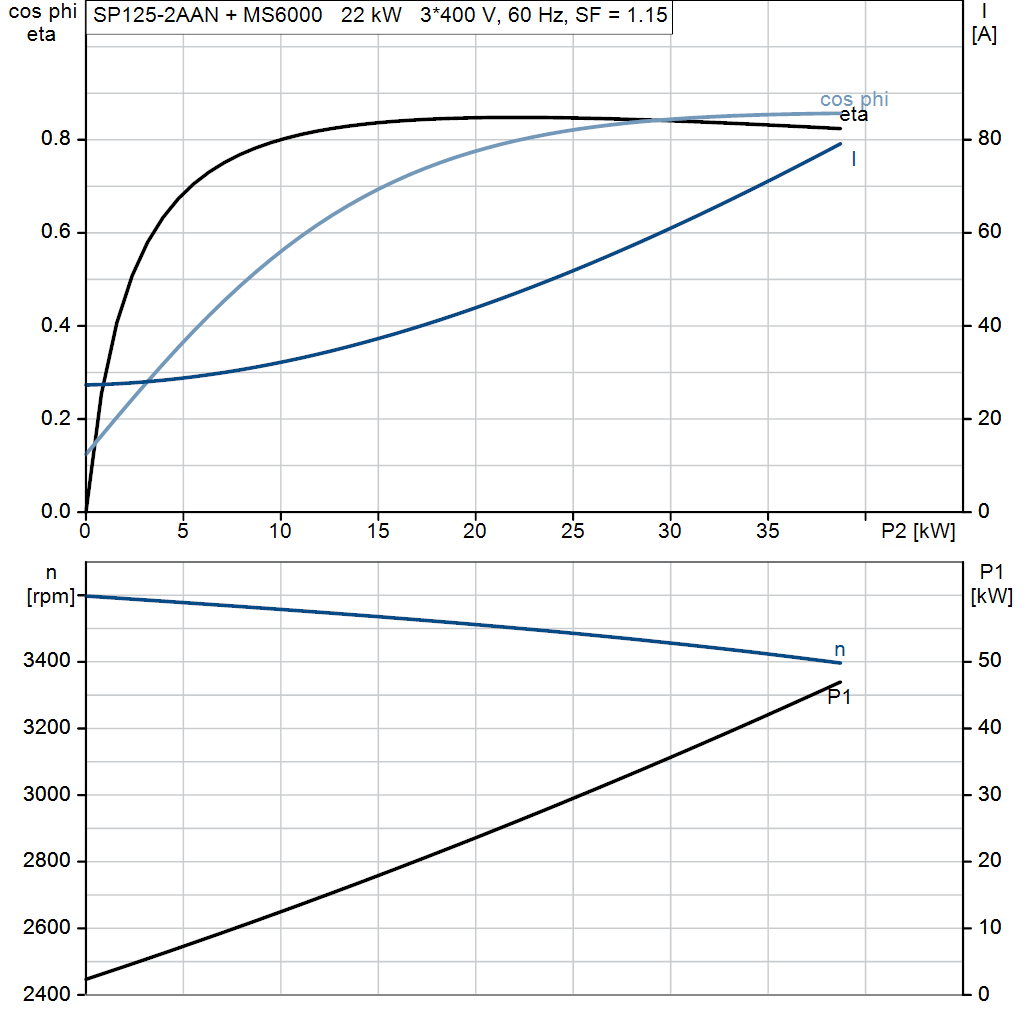

Electrical data:
Motor type:MS6000
Motor flange design:Grundfos
Rated power - P2:22 kW
Power (P2) required by pump:22 kW
Mains frequency:60 Hz
Rated voltage:3 x 380-400 V
Service factor:1.15
Rated current:56.0-55.0 A
Starting current:590-630 %
Cos phi - power factor:0.85-0.82
Rated speed:3470-3480 rpm

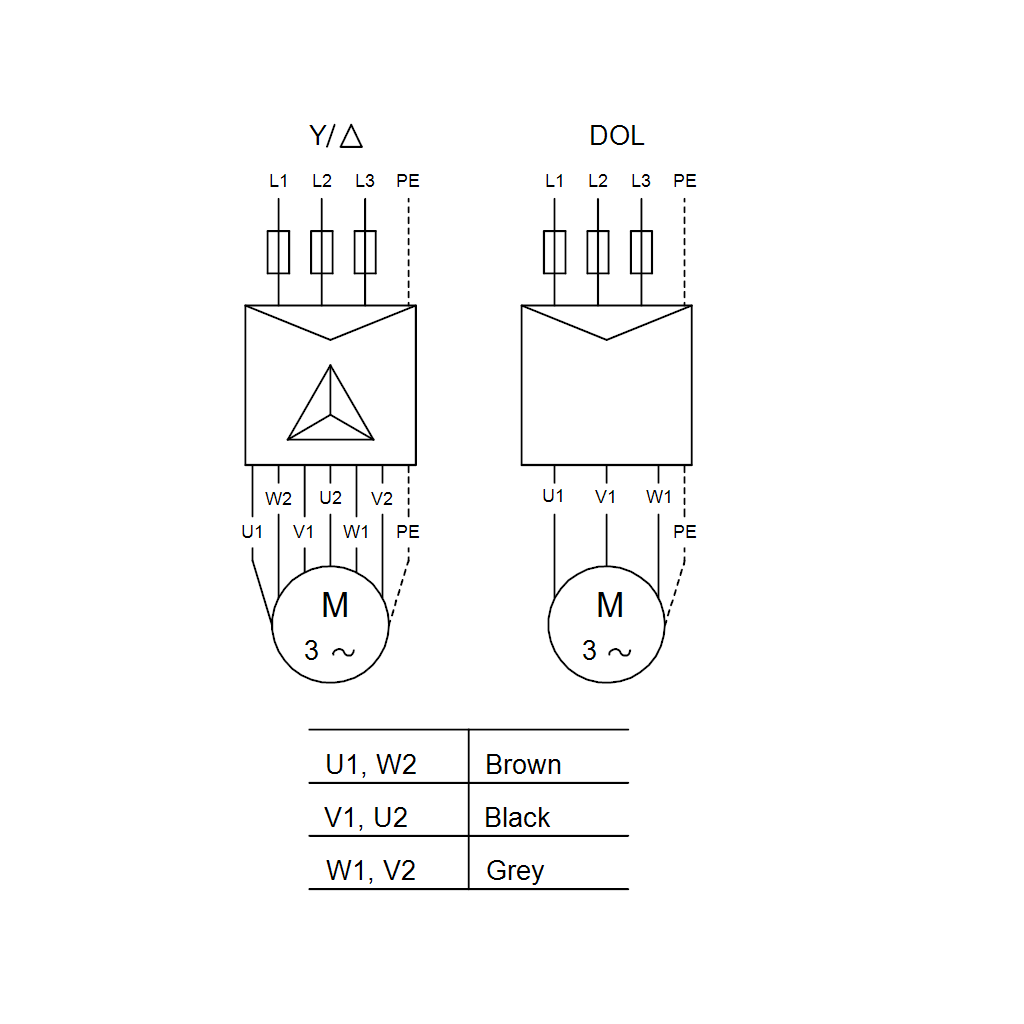

Start. method:direct-on-line
Enclosure class (IEC 34-5):IP68
Insulation class (IEC 85):F
Built-in temp. transmitter:yes
Length of cable:5 m
Power cable type:FLAT
Motor No:78335618
Windings:Enamelled
Others:
Net weight:107 kg
Gross weight:137 kg
Shipping volume:0.232 m³
Environmental approvals:WEEE

Applications

  • Community water supply — Reliable, sustainable and low-risk community water systems from source to tap, including water management and revenue collection systems, for low-income remote or informal urban settlement areas in developing countries.
  • Domestic ground water intake — Groundwater is essential for water supply. Providing a reliable, fresh supply of water for all homeowners is equally essential, particularly for those whose water source is a private groundwater well.
  • Domestic water pressure boosting — Low or varying water pressure in the home? A water pressure pump solves the very common problems of low-pressure showers and trickling taps that reduce comfort in one- or two-family homes.
  • Ground water intake — You require a cost-effective, reliable and energy-optimised submersible pumping solution for borehole installations. Our pumps and pump systems are optimised for the highest performance and reliability for groundwater installations.
  • Irrigation — Our high-efficiency pumping solutions work seamlessly with modern irrigation systems for agricultural and non-agricultural applications and can operate with on- and off-grid energy sources.

category

  • Submersible groundwater pumps
    Grundfos submersible pumps represent advanced hydraulic design and offer high efficiency, high resistance to sand and other abrasives, motor burnout protection and easy maintenance. Made entirely of corrosion-resistant stainless steel, Grundfos submersible pumps are ideal for applications including groundwater supply, irrigation, groundwater lowering and pressure boosting.
