Grundfos SP 125-7 N
Product ID: 17C00207
Request Price and Availability
Grundfos SP 125-7 N
Grundfos SP 125-7 N
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 45 °C |
| Max liquid t at 0.15 m/sec: | 40 °C |
| Max liquid t at 0.5 m/sec: | 45 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |

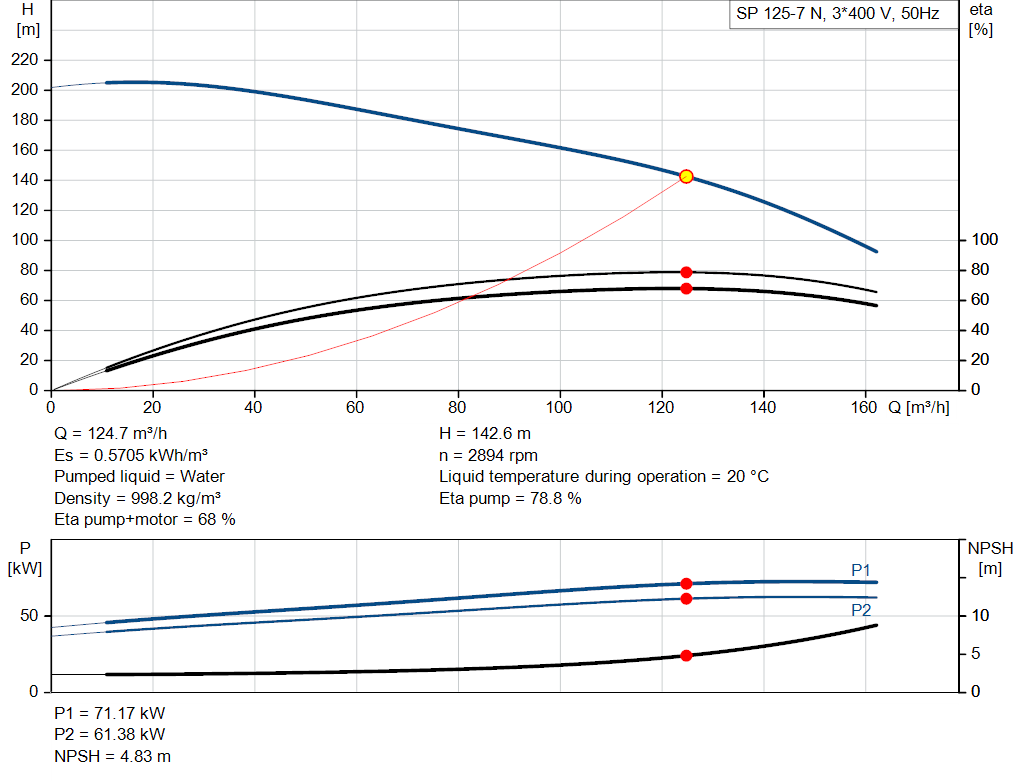

| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |
| Rated flow: | 125 m³/h |
| Rated head: | 143 m |
| Shaft seal for motor: | SIC/SIC |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T45 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Impeller: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Motor: | Stainless steel |
| DIN W.-Nr. 1.4401 | |
| AISI 316 | |

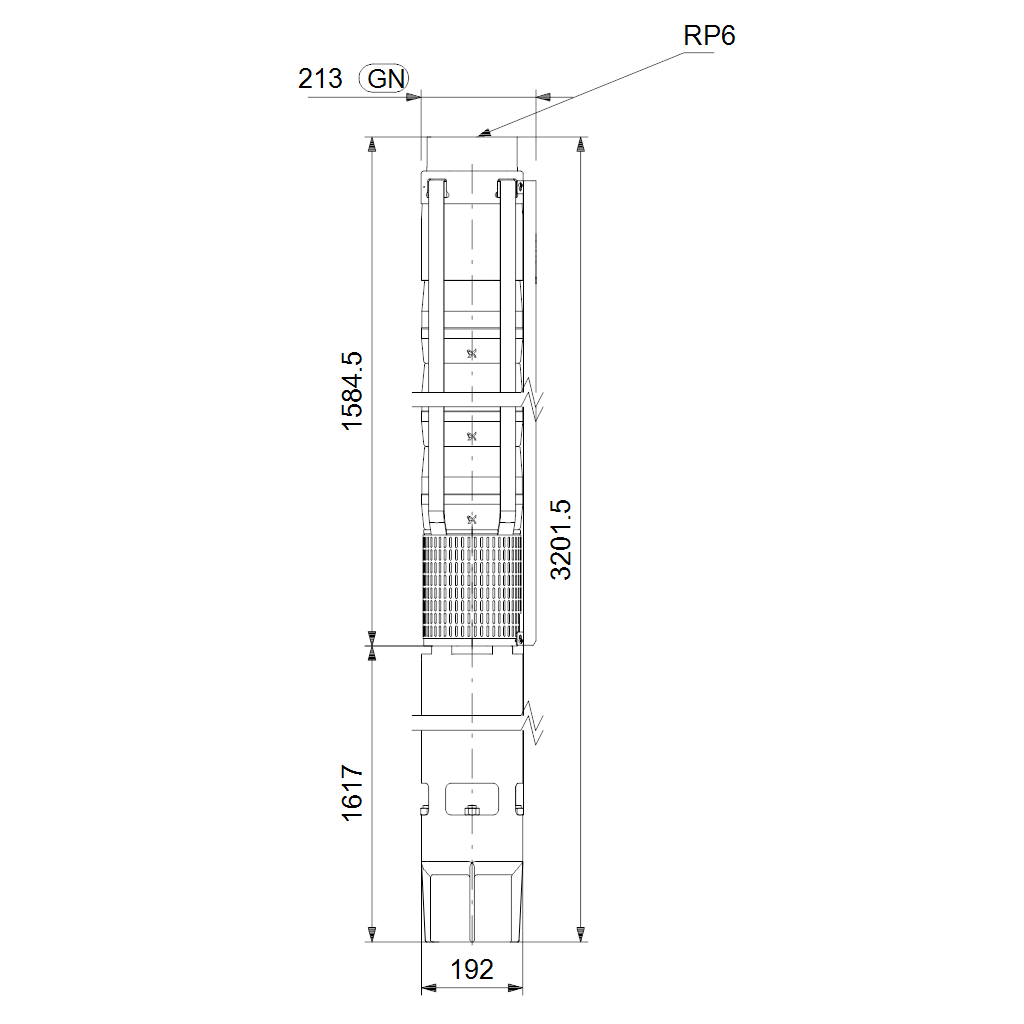

| Installation: | |
| Maximum operating pressure: | 60 bar |
| Maximum outlet pressure: | 20.5 bar |
| Type of connection: | Rp |
| Size of connection: | 6 inch |
| Motor diameter: | 8 inch |
| Minimum borehole diameter: | 225 mm |

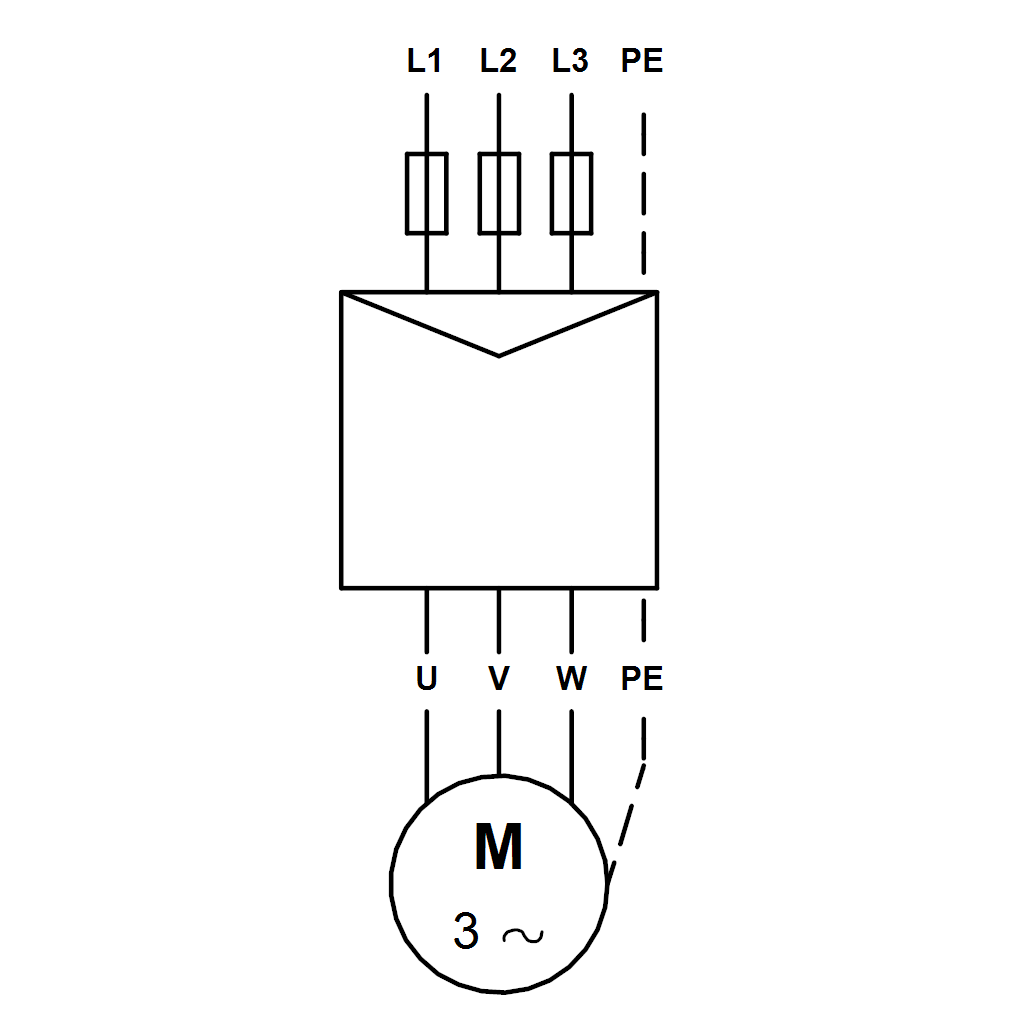

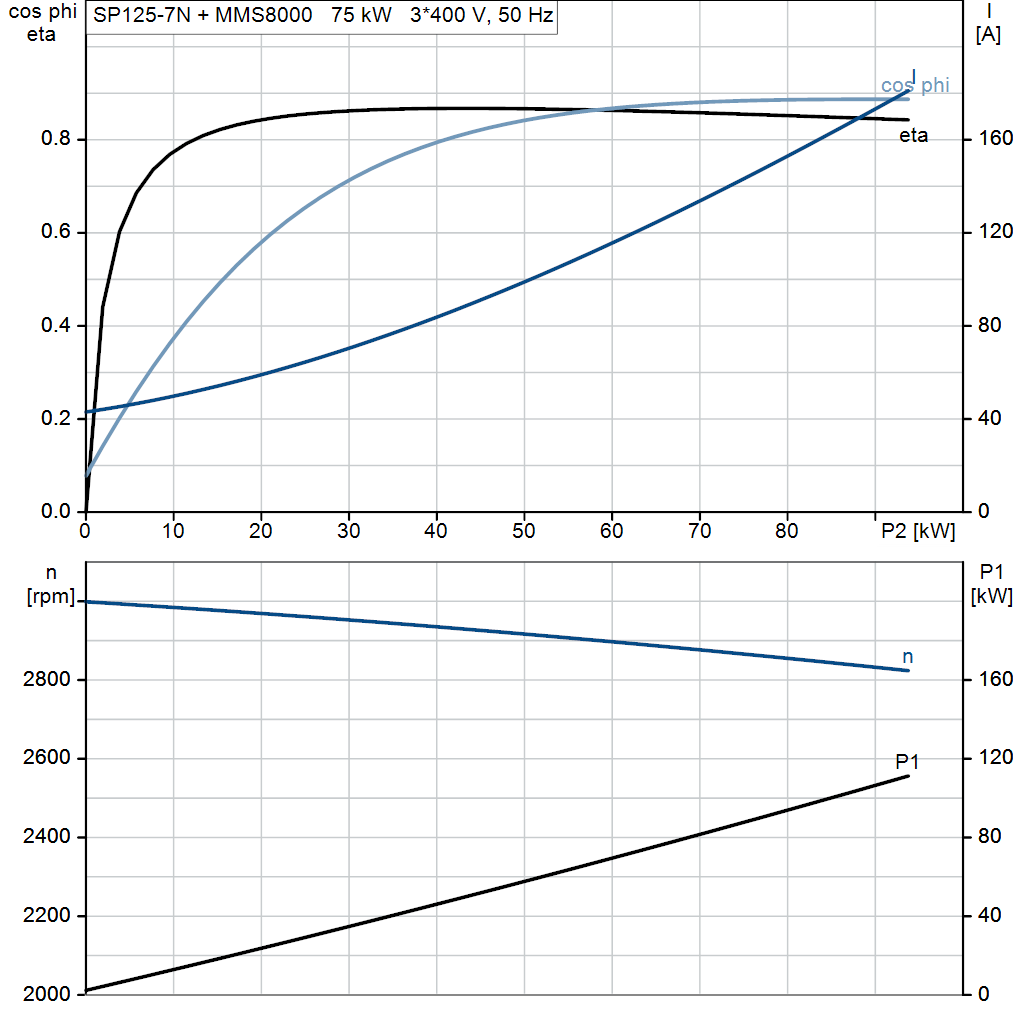

| Electrical data: | |
| Motor type: | MMS8000 |
| Motor flange design: | Grundfos |
| Rated power - P2: | 75 kW |
| Power (P2) required by pump: | 75 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 400-415 V |
| Rated current: | 150-146 A |
| Starting current: | 570-610 % |
| Cos phi - power factor: | 0.89 |
| Rated speed: | 2880-2890 rpm |
| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Built-in temp. transmitter: | no |
| Motor No: | 96521611 |
| Windings: | PE2/PA |
| Others: | |
| Net weight: | 310 kg |
| Gross weight: | 362 kg |
| Shipping volume: | 0.475 m³ |
| Environmental approvals: | WEEE |
Applications
- Community water supply — Reliable, sustainable and low-risk community water systems from source to tap, including water management and revenue collection systems, for low-income remote or informal urban settlement areas in developing countries.
- Domestic ground water intake — Groundwater is essential for water supply. Providing a reliable, fresh supply of water for all homeowners is equally essential, particularly for those whose water source is a private groundwater well.
- Domestic water pressure boosting — Low or varying water pressure in the home? A water pressure pump solves the very common problems of low-pressure showers and trickling taps that reduce comfort in one- or two-family homes.
- Ground water intake — You require a cost-effective, reliable and energy-optimised submersible pumping solution for borehole installations. Our pumps and pump systems are optimised for the highest performance and reliability for groundwater installations.
- Irrigation — Our high-efficiency pumping solutions work seamlessly with modern irrigation systems for agricultural and non-agricultural applications and can operate with on- and off-grid energy sources.
category
- Submersible groundwater pumpsGrundfos submersible pumps represent advanced hydraulic design and offer high efficiency, high resistance to sand and other abrasives, motor burnout protection and easy maintenance. Made entirely of corrosion-resistant stainless steel, Grundfos submersible pumps are ideal for applications including groundwater supply, irrigation, groundwater lowering and pressure boosting.
