Grundfos SP 125-10
Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in stainless steel, EN 1.4301 (AISI 304), that ensures high corrosive resistance. This pump carries drinking water approval. The pump is fitted with a 147 kW MMS10000 motor with sand shield, water-lubricated journal bearings and a volume compensating diaphragm. The rewindable motor contruction allows complete access to the windings for easy rewinding. The stator windings are PE/PA insulated made for continous operations (S1). Suitable for temperatures up to 50 °C. The motor is fitted with a mechanical shaft seal. The motor is not fitted with a temperature sensor. If temperature monitoring is desired, a Pt100 or Pt1000 sensor can be fitted. The motor is for direct-on-line starting (DOL).
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 45 °C |
| Max liquid t at 0.15 m/sec: | 40 °C |
| Max liquid t at 0.5 m/sec: | 45 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

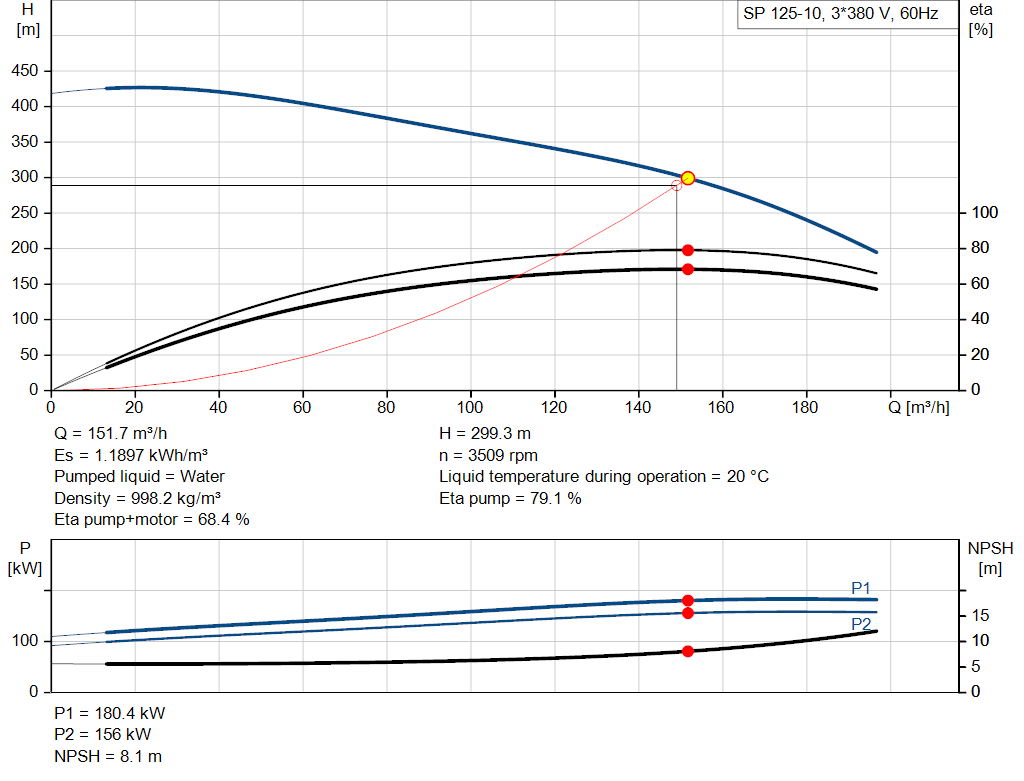

| Pump speed on which pump data are based: | 3450 rpm |
| Rated flow: | 149 m³/h |
| Rated head: | 289 m |
| Shaft seal for motor: | CER/CARBON |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Approvals for drinking water: | ACS,DM174 |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T45 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Motor: | Cast iron |
| DIN W.-Nr. 0.6025 | |
| ASTM Class 35-40 | |
| Installation: | |
| Maximum operating pressure: | 60 bar |
| Maximum outlet pressure: | 42.5 bar |

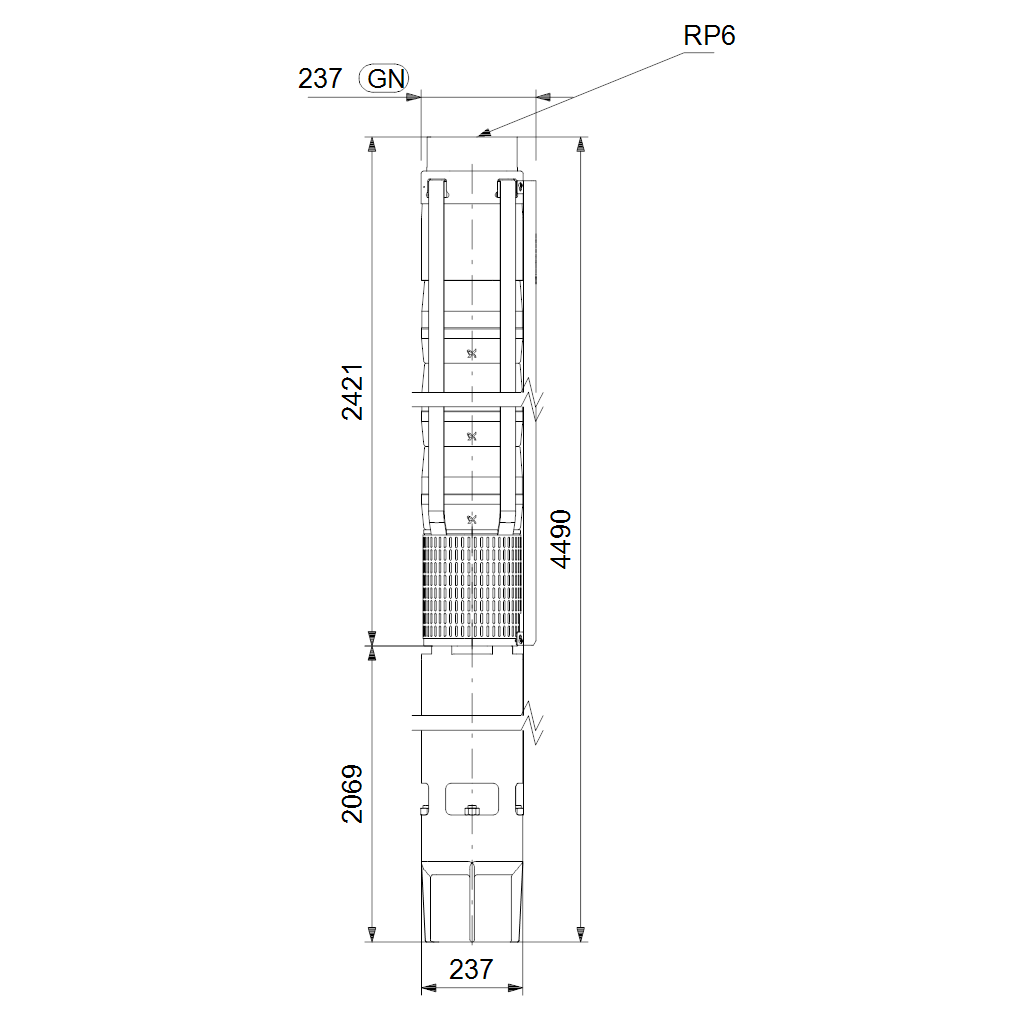

| Type of connection: | Rp |
| Size of connection: | 6 inch |
| Motor diameter: | 10 inch |
| Electrical data: | |

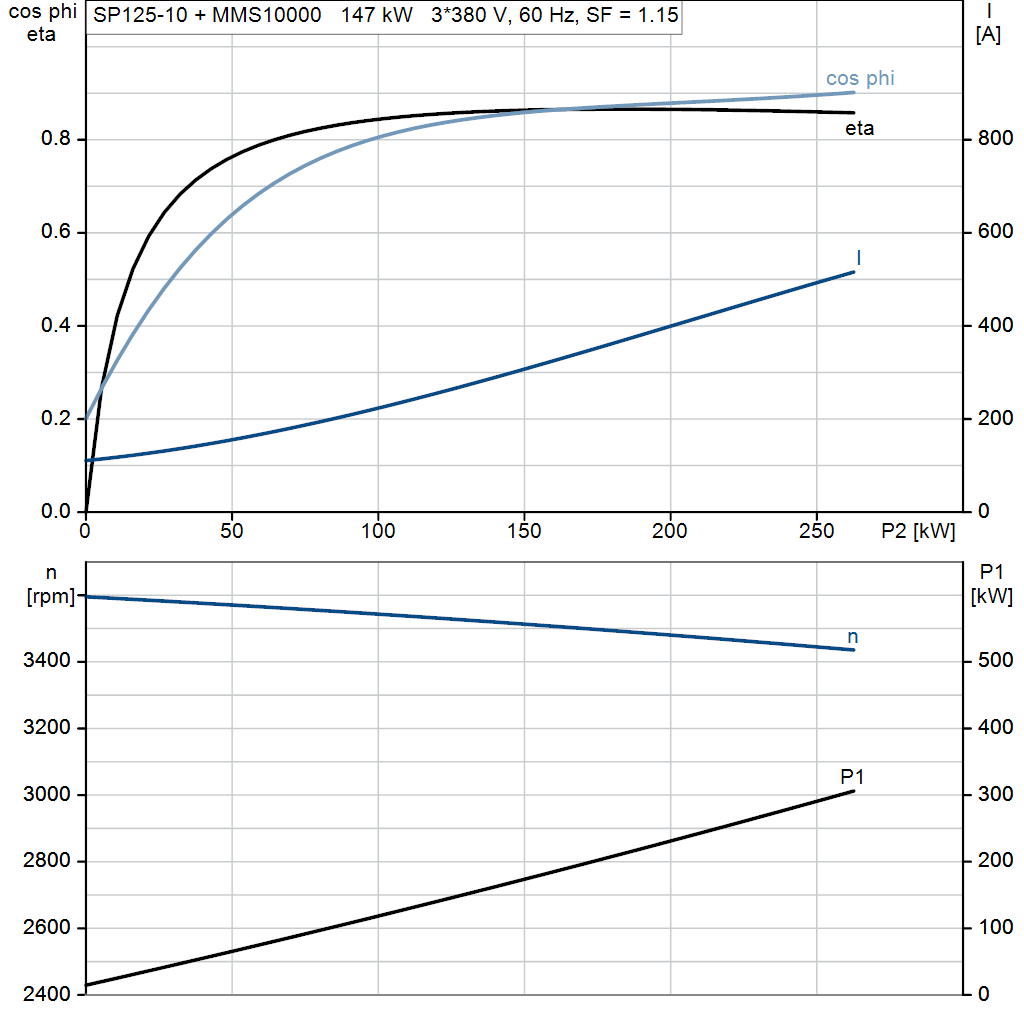

| Motor type: | MMS10000 |
| Motor flange design: | Grundfos |
| Rated power - P2: | 147 kW |
| Power (P2) required by pump: | 147 kW |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 380-400 V |
| Service factor: | 1.15 |
| Rated current: | 363-356 A |
| Starting current: | 490-530 % |
| Cos phi - power factor: | 0.86 |
| Rated speed: | 3510-3520 rpm |

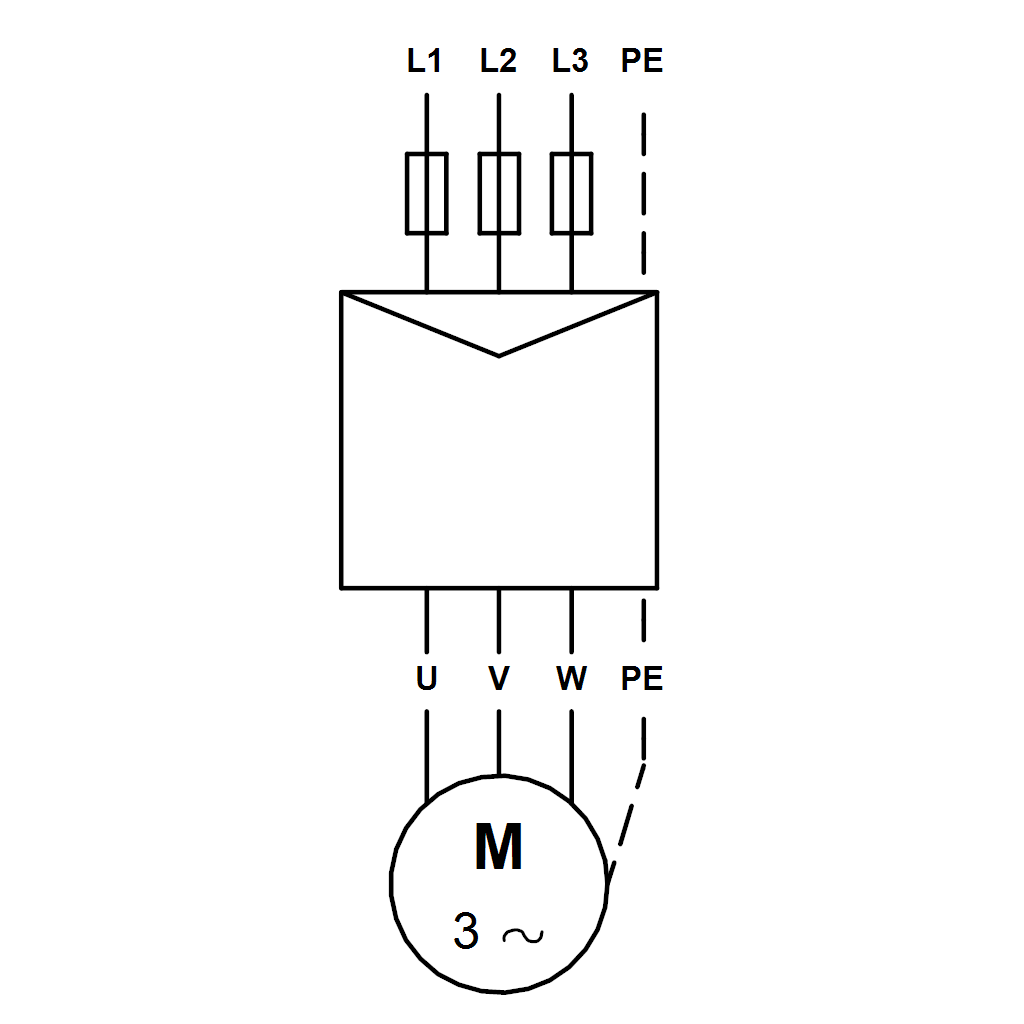

| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Built-in temp. transmitter: | no |
| Motor No: | 96507901 |
| Windings: | PE2/PA |
| Others: | |
| Net weight: | 621 kg |
| Gross weight: | 707 kg |
| Shipping volume: | 0.973 m³ |
| Environmental approvals: | WEEE |
