Grundfos SP 125-1A
Product ID: 17BG33A1
Request Price and Availability
Grundfos SP 125-1A
Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in stainless steel, EN 1.4301 (AISI 304), that ensures high corrosive resistance. This pump carries drinking water approval. The pump is fitted with a 11 kW MS6000 motor with sand shield, mechanical shaft seal, water-lubricated journal bearings and a volume compensating diaphragm. The motor is a canned type submersible motor offering good mechanical stability and high efficiency. Suitable for temperatures up to 40 °C. The motor is fitted with the Grundfos Tempcon sensor that, by use of powerline communication together with a MP204 control panel, enables temperature monitoring. The motor is for direct-on-line starting (DOL).
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 40 °C |
| Max liquid t at 0.15 m/sec: | 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

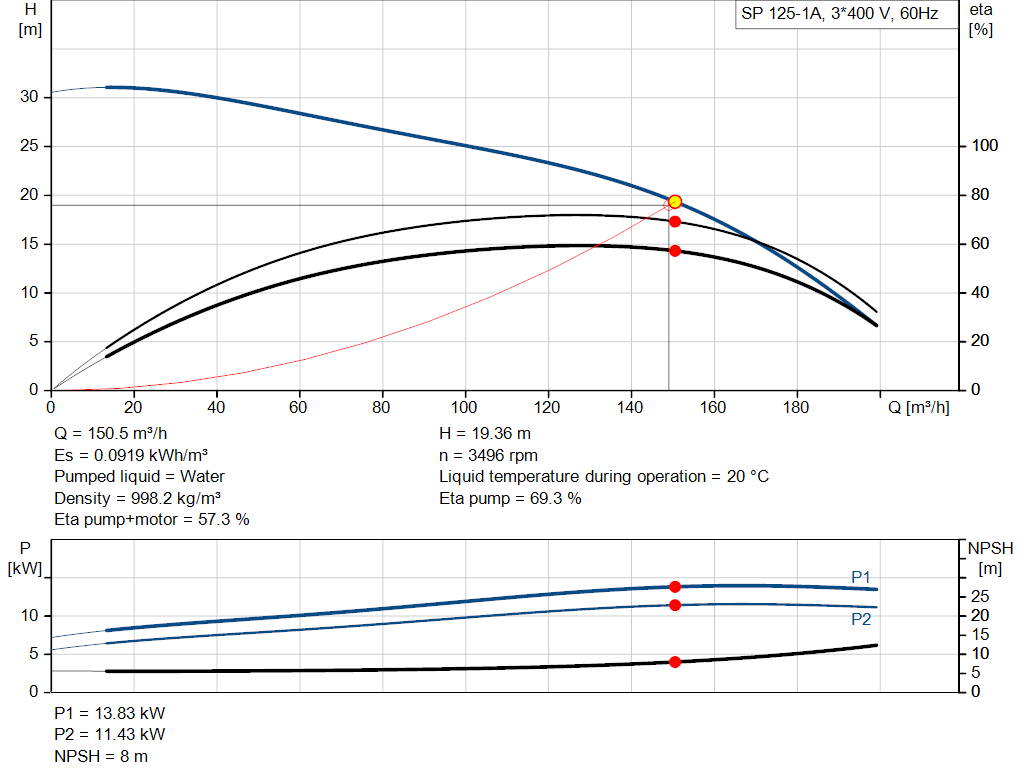

| Pump speed on which pump data are based: | 3450 rpm |
| Rated flow: | 149 m³/h |
| Rated head: | 19 m |
| Shaft seal for motor: | CER/CARNBR |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Approvals for drinking water: | ACS,DM174 |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T40 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Motor: | Stainless steel |
| DIN W.-Nr. 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Maximum operating pressure: | 60 bar |
| Maximum outlet pressure: | 3.1 bar |
| Type of connection: | NPT(F) |
| Size of connection: | 6 inch |
| Motor diameter: | 6 inch |
| Minimum borehole diameter: | 215 mm |
| Electrical data: | |
| Motor type: | MS6000 |
| Motor flange design: | Grundfos |
| Rated power - P2: | 11 kW |
| Power (P2) required by pump: | 11 kW |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 380-400 V |
| Service factor: | 1.15 |
| Rated current: | 29.5 A |
| Starting current: | 460-500 % |
| Cos phi - power factor: | 0.82-0.79 |
| Rated speed: | 3470-3480 rpm |

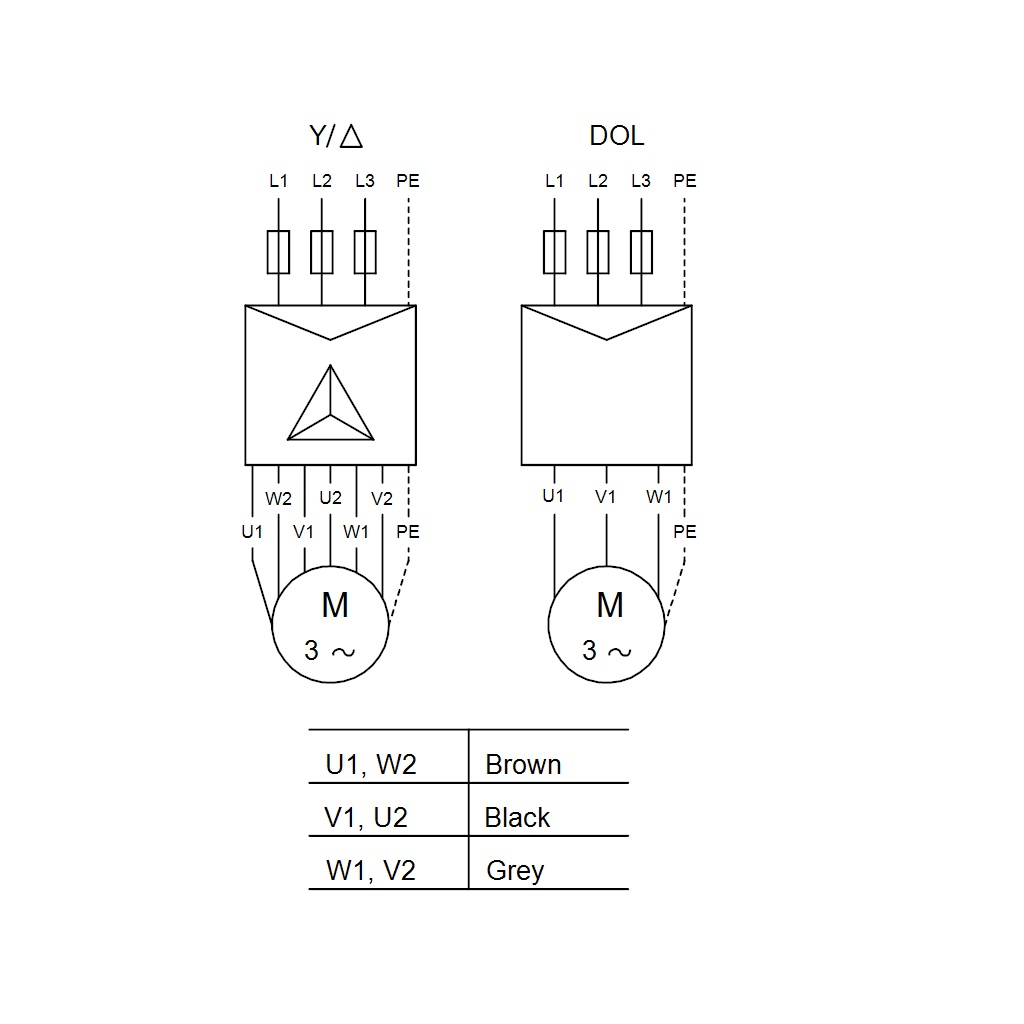

| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in temp. transmitter: | yes |
| Length of cable: | 5 m |
| Power cable type: | FLAT |
| Motor No: | 78335514 |
| Windings: | Enamelled |
| Others: | |
| Net weight: | 81.6 kg |
| Gross weight: | 106 kg |
| Shipping volume: | 0.179 m³ |
| Environmental approvals: | WEEE |
