Grundfos 625S1500-7A

Product ID: 17BG00A7

Part Number: 17BG00A7

Quantity

Name

Company

Country

Phone

Comment / Question / Quotation request:

Liquid:
Pumped liquid:	Water
Liquid temperature range:	-15 .. 60 °C
Selected liquid temperature:	20 °C
Density:	998.2 kg/m³
Technical:

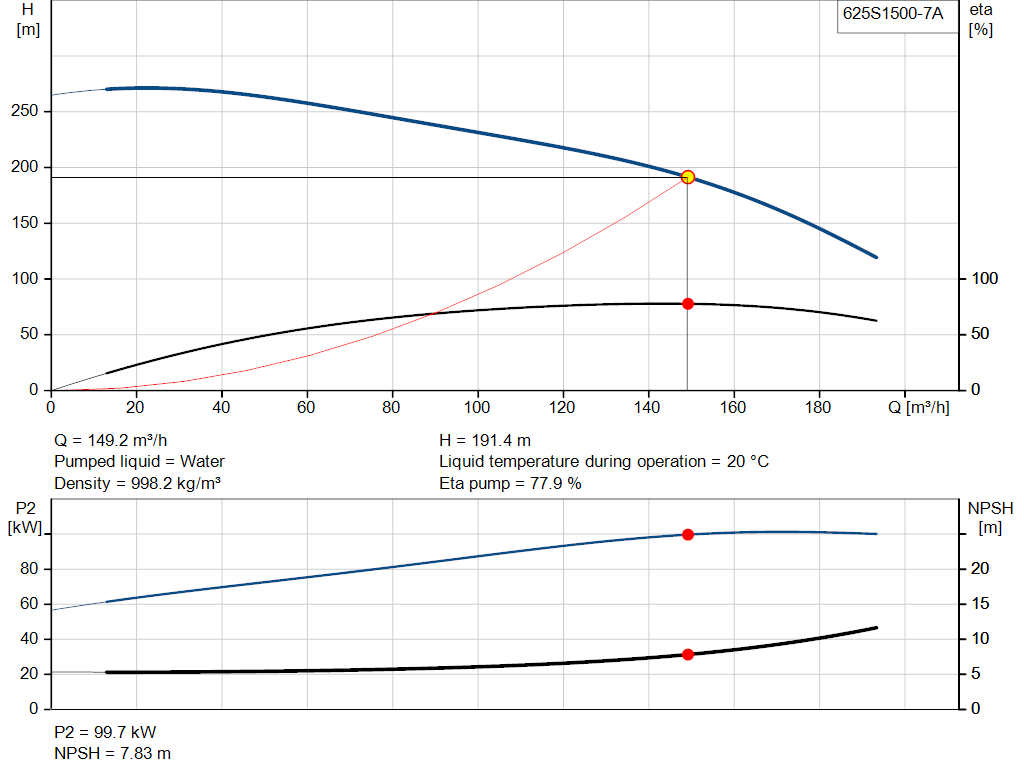

Pump speed on which pump data are based:	3450 rpm
Rated flow:	149 m³/h
Rated head:	191 m
Approvals:	CULDWUS,CCSAUS
Approvals for drinking water:	PROP65
Curve tolerance:	ISO9906:2012 3B
Return valve:	YES
Materials:
Pump:	Stainless steel
	EN 1.4301
	AISI 304
Impeller:	Stainless steel
	EN 1.4301
	AISI 304
Installation:
Maximum operating pressure:	60 bar
Maximum outlet pressure:	19.7 bar

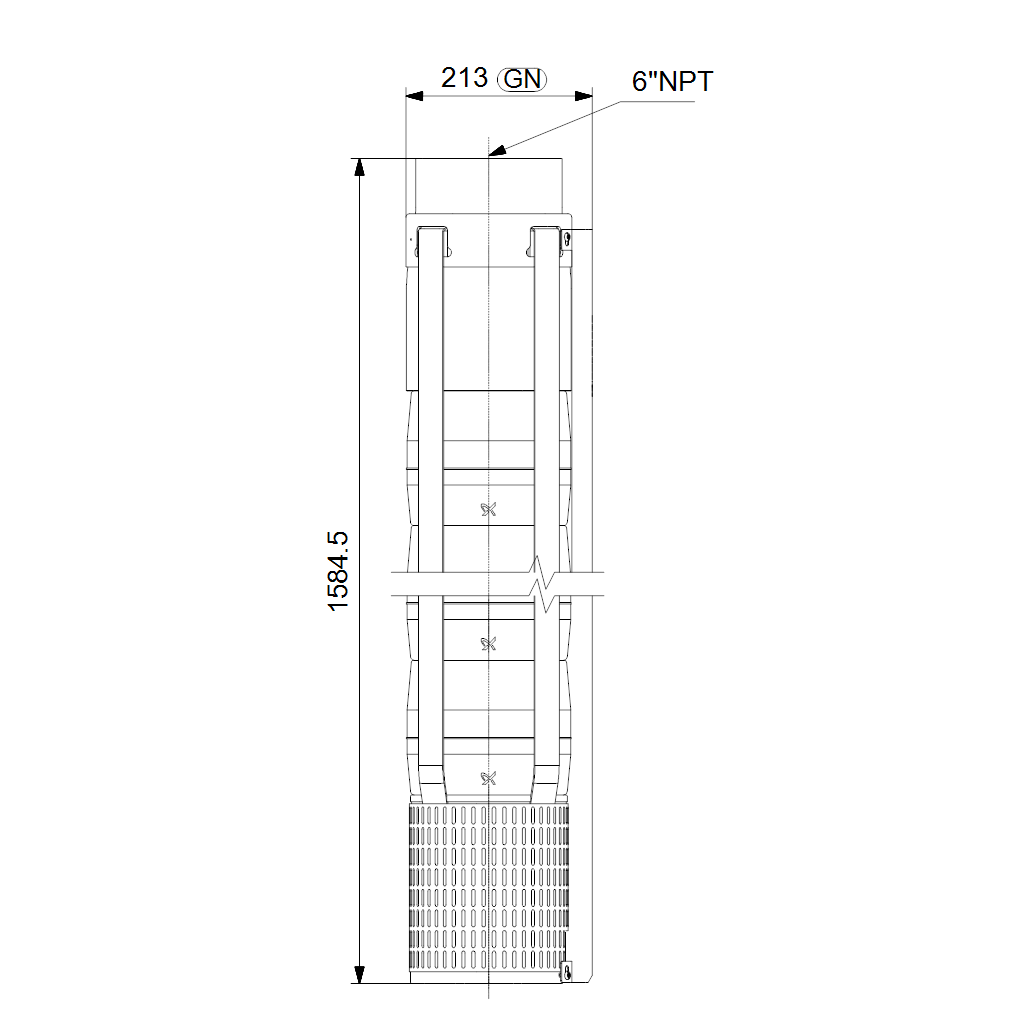

Type of connection:	NPT(F)
Size of connection:	6 inch
Motor diameter:	8 inch
Minimum borehole diameter:	225 mm
Electrical data:
Motor flange design:	Grundfos
Power (P2) required by pump:	110 kW
Others:
Minimum efficiency index, MEI ≥:	-.--
Net weight:	73 kg
Gross weight:	104 kg
Shipping volume:	0.284 m³
