Grundfos NK 32-200/219 AA1F2KESBQQEHW3
Product ID: 98943126
Request Price and Availability
Grundfos NK 32-200/219 AA1F2KESBQQEHW3
Grundfos NK 32-200/219 AA1F2KESBQQEHW3
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

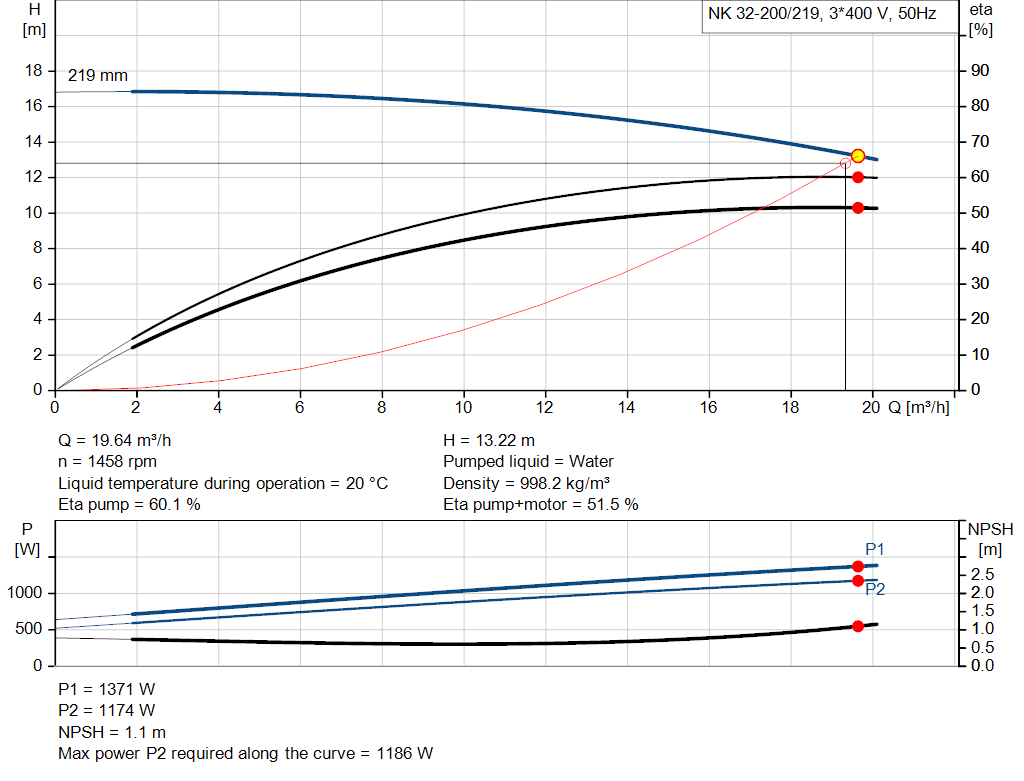

| Pump speed on which pump data are based: | 1445 rpm |
| Rated flow: | 19.33 m³/h |
| Pump with motor (Yes/No): | Y |
| Rated head: | 12.81 m |
| Actual impeller diameter: | 219 mm |
| Nominal impeller diameter: | 200 |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Mechanical seal type: | Single |
| Curve tolerance: | ISO9906:2012 3B2 |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Wear ring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Impeller: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Internal pump house coating: | No coating |
| Shaft: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Installation: | |
| Maximum ambient temperature: | 55 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-1 |
| Type of inlet connection: | DIN |
| Type of outlet connection: | DIN |
| Size of inlet connection: | DN 50 |
| Size of outlet connection: | DN 32 |
| Pressure rating for connection: | PN 16 |
| Coupling type: | Flexible w/o spacer |
| Base frame design: | EN/ISO |
| Code for base frame: | 4B ST |
| Grouting (Yes/No): | N |

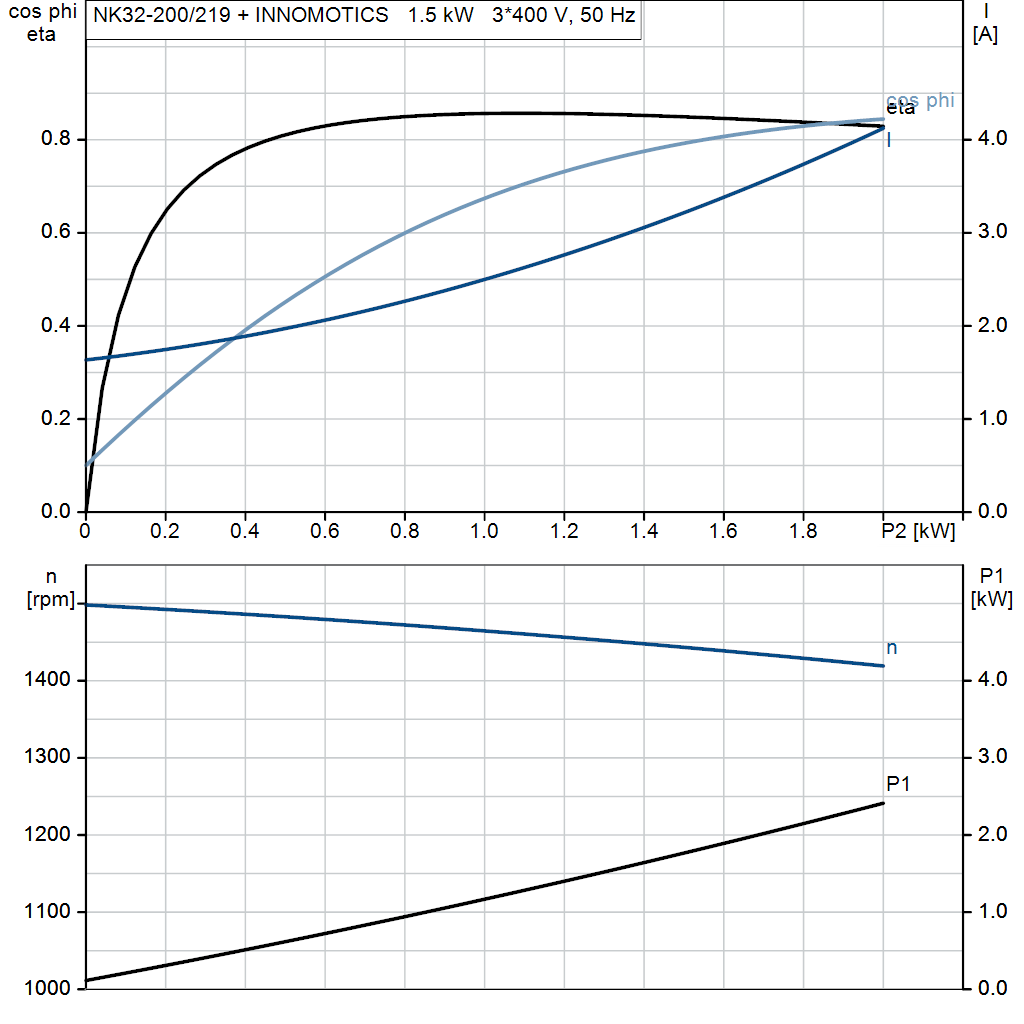

| Electrical data: | |
| Motor type: | INNOMOTICS |
| Rated power - P2: | 1.5 kW |
| Mains frequency: | 50 Hz |

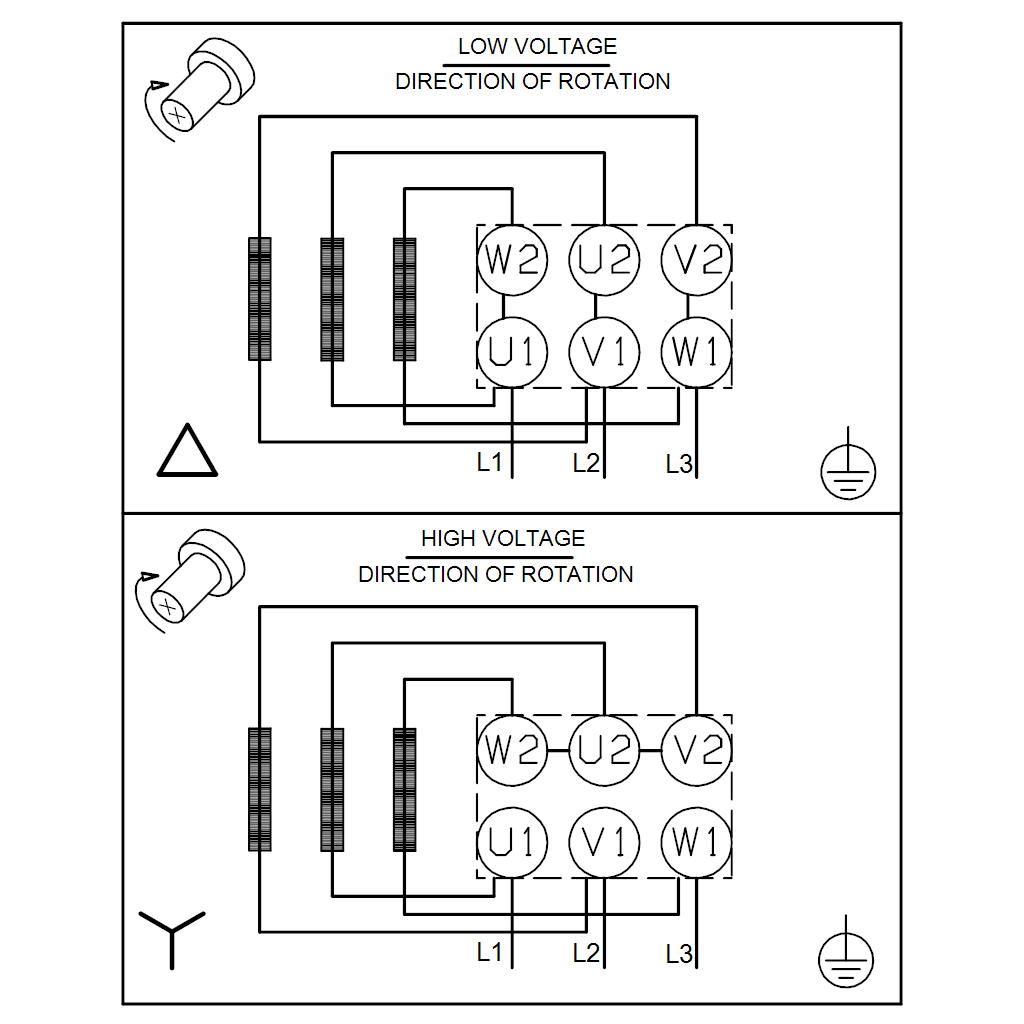

| Rated voltage: | 3 x 220-240D/380-420Y V |
| Rated current: | 5.5/3.15 A |
| Starting current: | 730 % |
| Cos phi - power factor: | 0.8 |
| Rated speed: | 1445 rpm |
| IE efficiency: | IE3 85,3% |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 85.3 % |
| Motor efficiency at 3/4 load: | 86 % |
| Motor efficiency at 1/2 load: | 85.2 % |
| Number of poles: | 4 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 98957730 |
| Bearing insulation type N-end: | N |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.69 |
| Net weight: | 123 kg |
| Gross weight: | 136 kg |
| Shipping volume: | 0.306 m³ |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 96039654 | Kit, Shaft |
| 96579598 | Kit, Bearing |
| 96789247 | Kit, Rubber blocks f. coupling |
| 96810117 | Kit, Wear ring |
| 96848894 | Kit, Coupling |
| 96939128 | Kit, Nut |
