Grundfos NK 150-500/548 AIA2F2KESBQQEVW5
Product ID: 98324990
Request Price and Availability
Grundfos NK 150-500/548 AIA2F2KESBQQEVW5
Grundfos NK 150-500/548 AIA2F2KESBQQEVW5
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

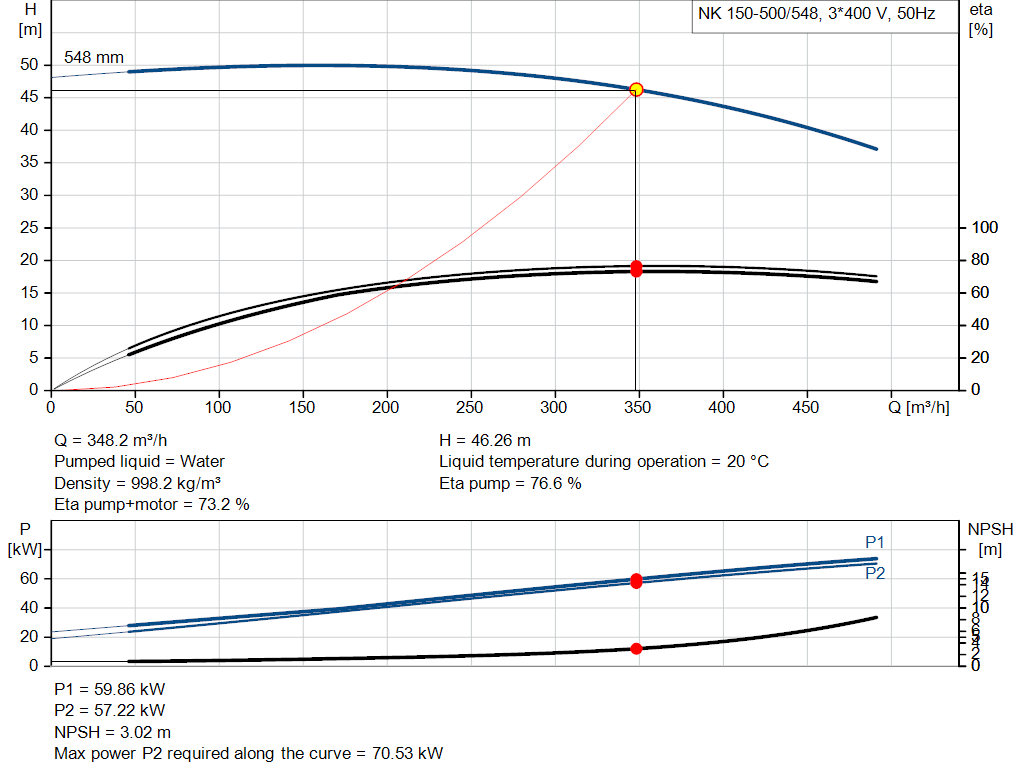

| Pump speed on which pump data are based: | 992 rpm |
| Rated flow: | 347.7 m³/h |
| Pump with motor (Yes/No): | Y |
| Rated head: | 46.12 m |
| Actual impeller diameter: | 548 mm |
| Nominal impeller diameter: | 500 |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Mechanical seal type: | Single |
| Curve tolerance: | ISO9906:2012 3B |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Wear ring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Flange: | Cast iron |
| EN-GJS-500-7 | |
| ASTM 70-50-05 | |
| Impeller: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Internal pump house coating: | No coating |
| Shaft: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Installation: | |
| Maximum ambient temperature: | 40 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-1 |
| Type of inlet connection: | DIN |
| Type of outlet connection: | DIN |
| Size of inlet connection: | DN 200 |
| Size of outlet connection: | DN 150 |
| Pressure rating for connection: | PN 16 |
| Coupling type: | Flexible w/spacer |
| Base frame design: | EN/ISO |
| Code for base frame: | 10 |
| Grouting (Yes/No): | N |
| Electrical data: | |
| Motor type: | INNOMOTICS |
| Rated power - P2: | 75 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-420/660-725 V |
| Rated current: | 135/78 A |
| Starting current: | 820 % |
| Cos phi - power factor: | 0.84 |
| Rated speed: | 992 rpm |
| IE efficiency: | IE4 95,4% |
| IE Efficiency class: | IE4 |
| Motor efficiency at full load: | 95.4 % |
| Motor efficiency at 3/4 load: | 95.6 % |
| Motor efficiency at 1/2 load: | 95.2 % |
| Number of poles: | 6 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 92848352 |
| Bearing insulation type N-end: | CERAMIC SHAFT COATING |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.61 |
| Net weight: | 1780 kg |
| Gross weight: | 1880 kg |
| Shipping volume: | 2.99 m³ |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 95919877 | Kit, Bearing |
| 96861528 | Kit, Shaft |
| 97739700 | Kit, Wear ring |
