Grundfos NK 32-200.1/207 AA1F2BESBAQEMW1
Product ID: 97835126
Request Price and Availability
Grundfos NK 32-200.1/207 AA1F2BESBAQEMW1
Grundfos NK 32-200.1/207 AA1F2BESBAQEMW1
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 0 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

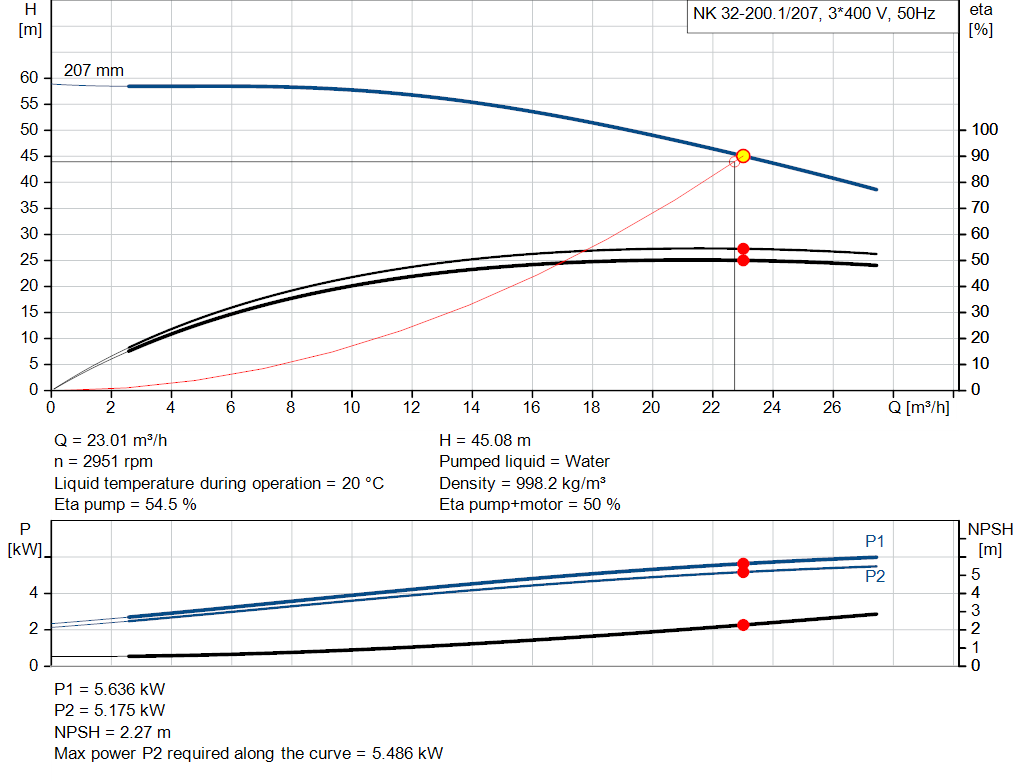

| Pump speed on which pump data are based: | 2915 rpm |
| Rated flow: | 22.72 m³/h |
| Pump with motor (Yes/No): | Y |
| Rated head: | 43.95 m |
| Actual impeller diameter: | 207 mm |
| Nominal impeller diameter: | 200.1 |
| Primary shaft seal: | BAQE |
| Code for shaft seal: | BAQE |
| Mechanical seal type: | Single |
| Curve tolerance: | ISO9906:2012 3B2 |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-250 | |
| ASTM class 35 | |
| Wear ring: | Brass |
| CuZn34Mn3AI2Fe1-C | |
| Impeller: | Bronze |
| CuSn10-C | |
| Internal pump house coating: | CED |
| Shaft: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum ambient temperature: | 60 °C |
| Maximum operating pressure: | 16 bar |

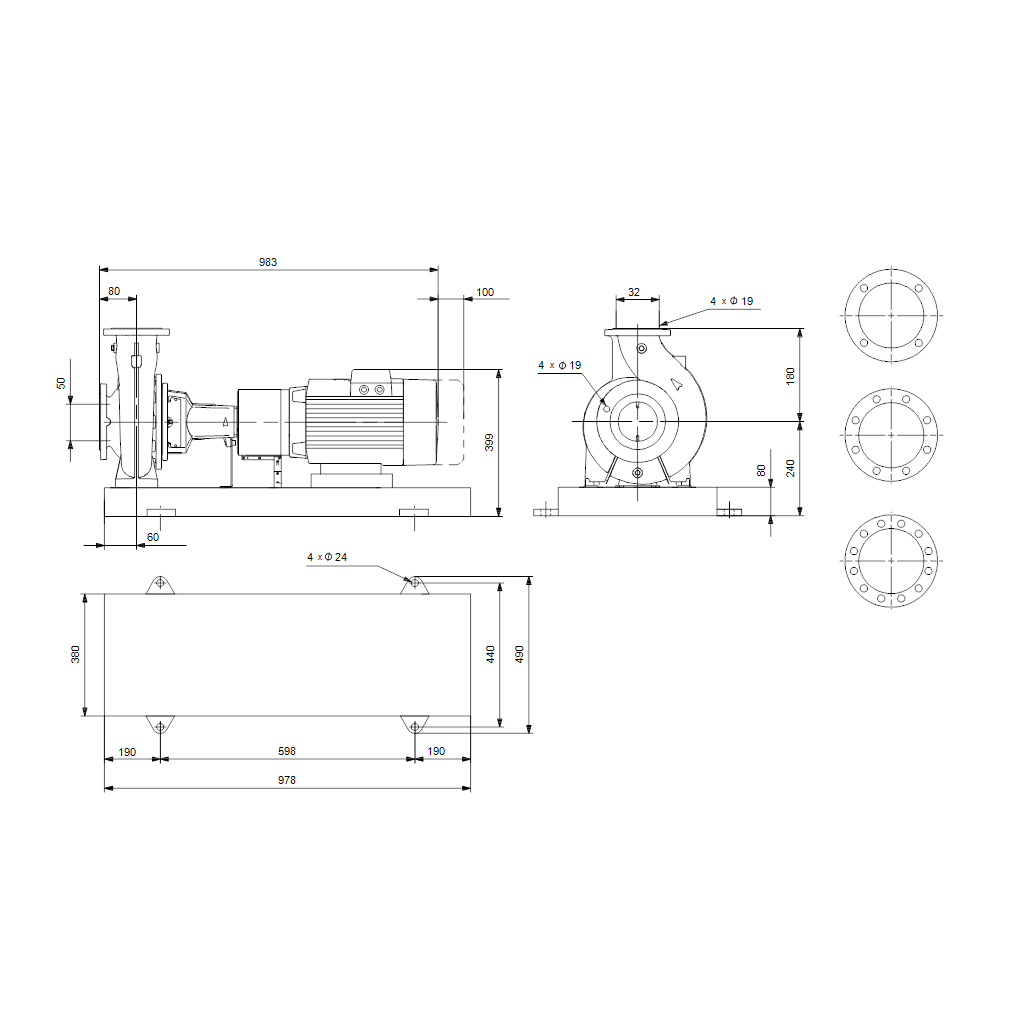

| Pipe connection standard: | EN 1092-2 |
| Type of inlet connection: | DIN |
| Type of outlet connection: | DIN |
| Size of inlet connection: | DN 50 |
| Size of outlet connection: | DN 32 |
| Pressure rating for connection: | PN 16 |
| Coupling type: | Flexible w/o spacer |
| Base frame design: | EN/ISO |
| Code for base frame: | 5 ST |
| Grouting (Yes/No): | N |

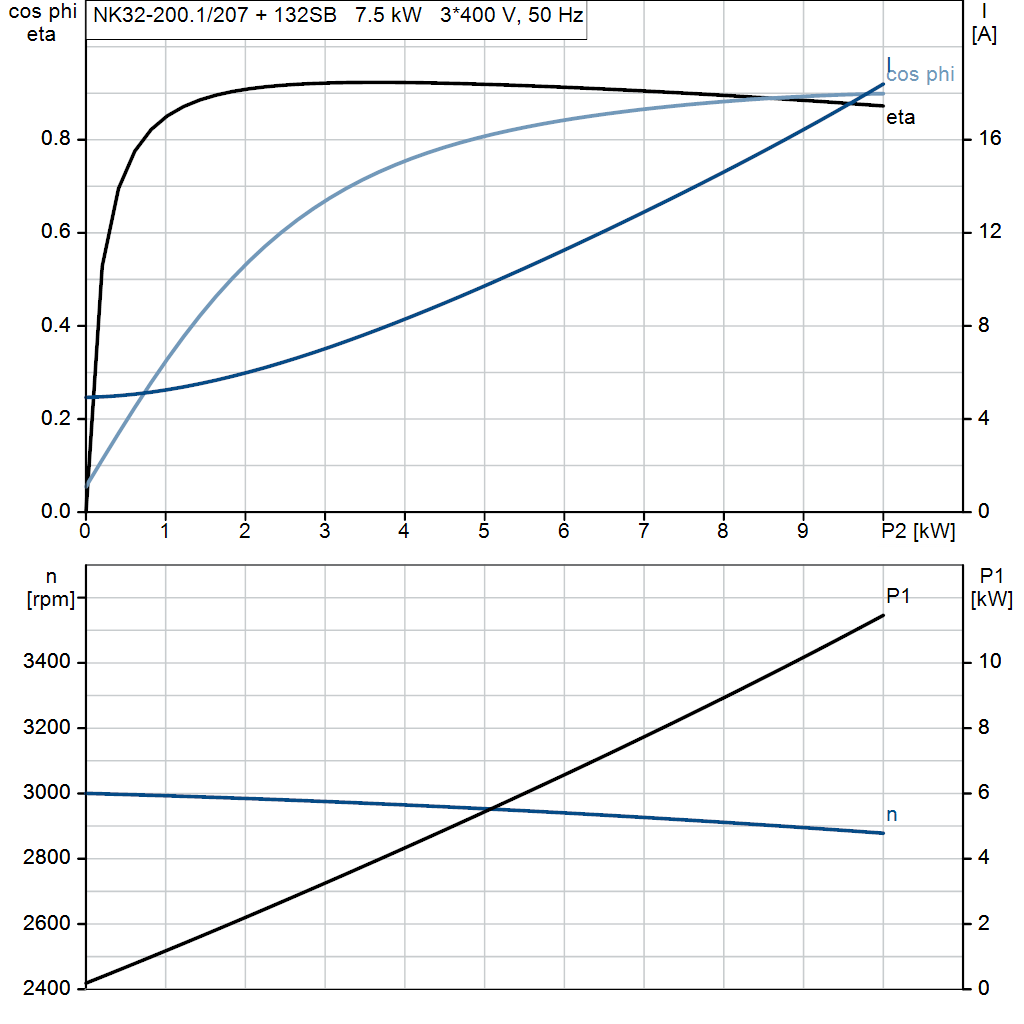

| Electrical data: | |
| Motor type: | 132SB |
| Rated power - P2: | 7.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-415D/660-690Y V |
| Rated current: | 14,4-14,0/8,30-8,10 A |
| Starting current: | 780-910 % |
| Cos phi - power factor: | 0.88-0.86 |
| Rated speed: | 2910-2920 rpm |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 90.1-90.4 % |
| Motor efficiency at 3/4 load: | 90.8-90.9 % |
| Motor efficiency at 1/2 load: | 90.8-90.4 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting |
| Insulation class (IEC 85): | F |
| Motor No: | 87370377 |
| Bearing insulation type N-end: | Steel Bearing |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.52 |
| Net weight: | 172 kg |
| Gross weight: | 193 kg |
| Shipping volume: | 0.395 m³ |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 96039654 | Kit, Shaft |
| 96579598 | Kit, Bearing |
| 96789247 | Kit, Rubber blocks f. coupling |
| 96810098 | Spare, Wear ring |
| 96810102 | Spare, Wear ring |
| 96848896 | Kit, Coupling |
| 96939128 | Kit, Nut |
