Grundfos NBE 50-125/144 AAF2LESBQQEMWB
Product ID: 99102385
Request Price and Availability
Grundfos NBE 50-125/144 AAF2LESBQQEMWB
Grundfos NBE 50-125/144 AAF2LESBQQEMWB
| Controls: | |
| Frequency converter: | Built-in |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

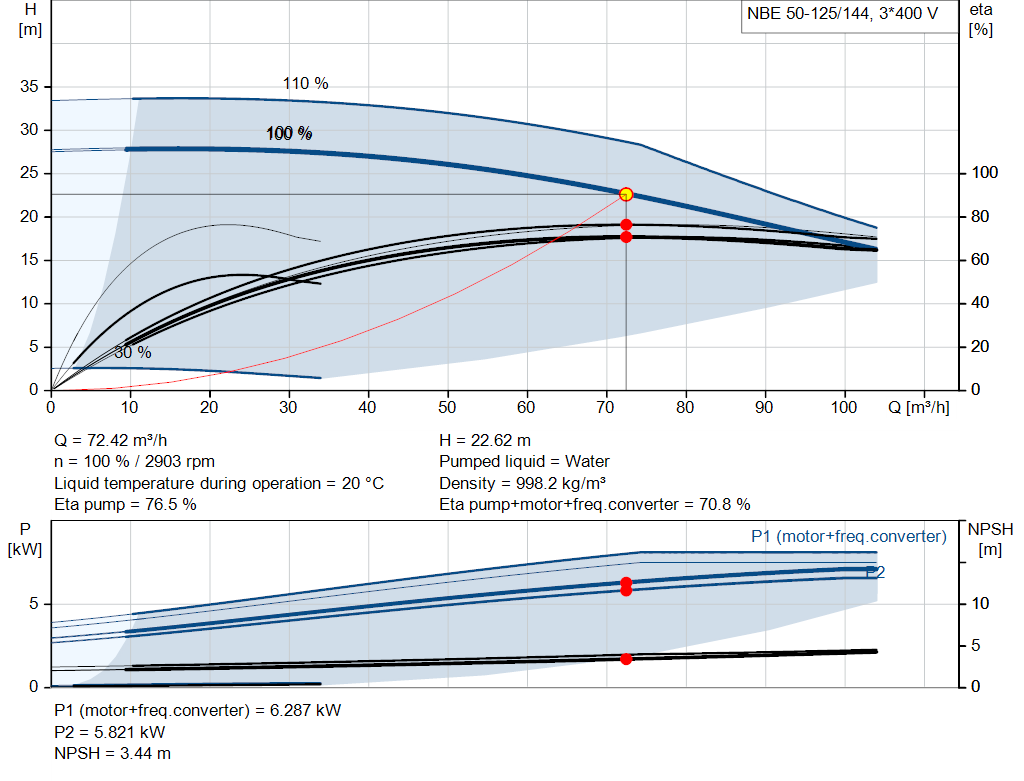

| Pump speed on which pump data are based: | 2901 rpm |
| Rated flow: | 72.42 m³/h |
| Rated head: | 22.62 m |
| Actual impeller diameter: | 144 mm |
| Nominal impeller diameter: | 125 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Curve tolerance: | ISO9906:2012 3B2 |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Wear ring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Impeller: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Internal pump house coating: | No coating |
| Shaft: | Stainless steel |
| EN 1.4462 | |
| SAF 2205 | |
| Installation: | |
| Range of ambient temperature: | -20 .. 50 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-1 |
| Size of inlet connection: | DN 65 |
| Size of outlet connection: | DN 50 |
| Pressure rating for connection: | PN 16 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | N |

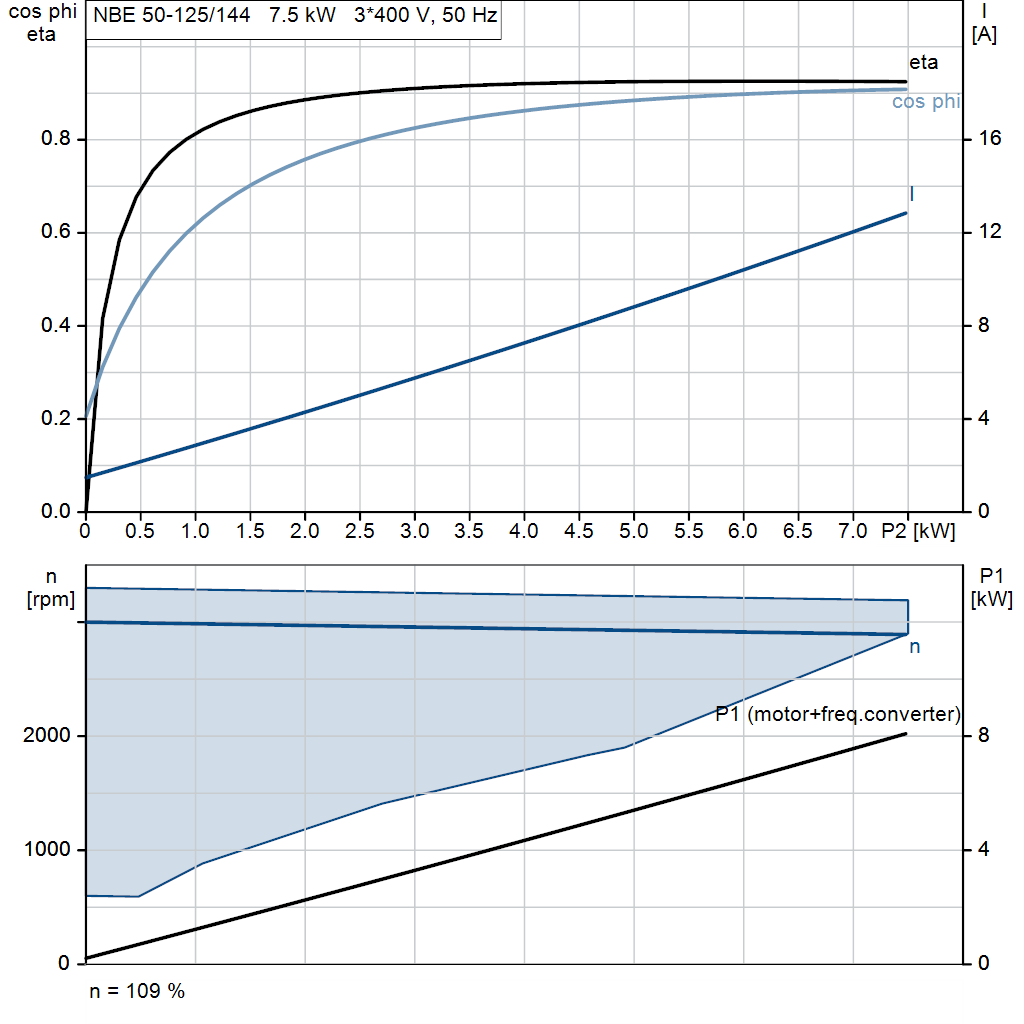

| Electrical data: | |
| Rated power - P2: | 7.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-500 V |
| Rated current: | 14.1-11.2 A |
| Cos phi - power factor: | 0.93-0.89 |
| Rated speed: | 360-4000 rpm |
| IE Efficiency class: | IE5 |
| Motor efficiency at full load: | 92.5 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 93057191 |
| Bearing insulation type N-end: | Steel Bearing |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.48 |
| Net weight: | 83 kg |
| Gross weight: | 100 kg |
| Shipping volume: | 0.315 m³ |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 96658826 | Spare, Shaft seal |
| 96810138 | Kit, Wear ring |
| 96847110 | Kit, Pump shaft |
| 97757659 | Spare, O-ring |
Applications
- Commercial air conditioning — Improve user comfort and reduce life-cycle costs with intelligent pumps that integrate easily into your air-based or hydronic cooling system.
- Industrial heating — Solutions for industrial heating applications meet great demands every day from very high temperatures to delicate processes that require extreme precision. There is a high efficiency heat pump from Grundfos for any need.
- Irrigation — Our high-efficiency pumping solutions work seamlessly with modern irrigation systems for agricultural and non-agricultural applications and can operate with on- and off-grid energy sources.
category
- Endsuction close coupled single stageEnd-suction close-coupled single-stage pumps are common in every industrial facility and water treatment plant in the world. Available in both a vertical and horizontal design, the end-suction close-coupled single-stage pumps are easy to install thanks to the compact size and the 90 degree angle from inlet to outlet.
