Grundfos NBE 125-250/214 AHAF2AESBAQEPW4
Product ID: 96539904
Request Price and Availability
Grundfos NBE 125-250/214 AHAF2AESBAQEPW4
Grundfos NBE 125-250/214 AHAF2AESBAQEPW4
| Controls: | |
| VFD product number: | 99616822 |
| Frequency converter: | Built-in |
| Type of frequency converter: | CUE 3X380-500V IP55 RUG 22KW |
| Appr. for VFD: | CE, CULUS, C-TICK |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 0 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

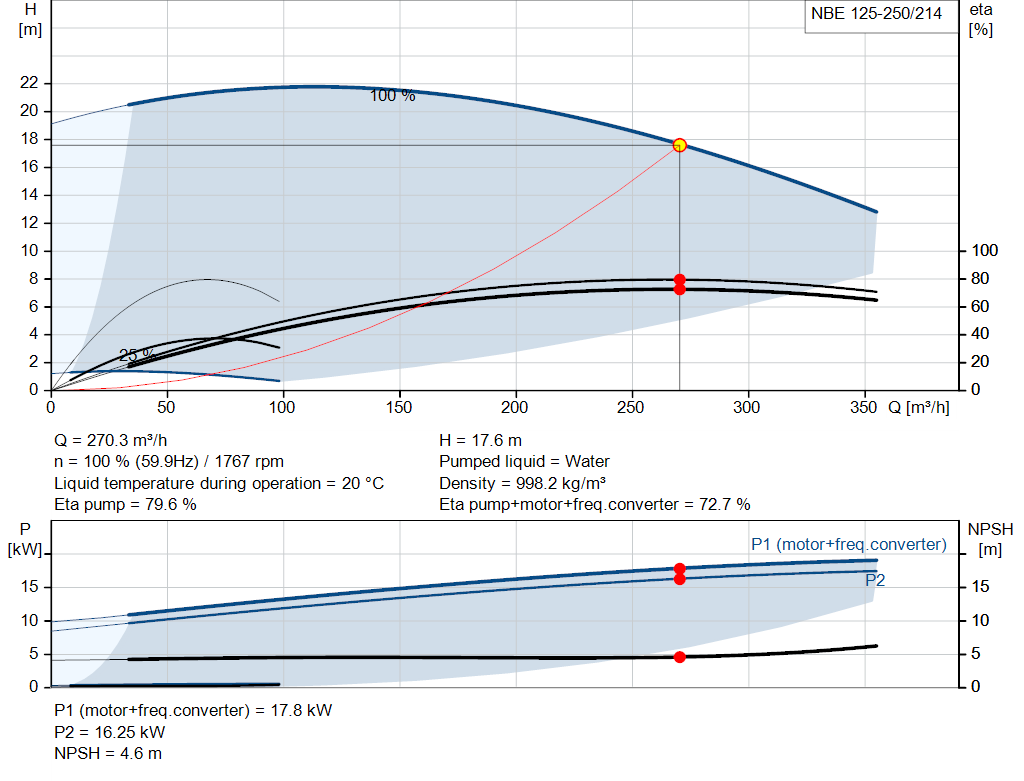

| Pump speed on which pump data are based: | 1765 rpm |
| Rated flow: | 270.3 m³/h |
| Rated head: | 17.6 m |
| Actual impeller diameter: | 214 mm |
| Nominal impeller diameter: | 250 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BAQE |
| Code for shaft seal: | BAQE |
| Curve tolerance: | ISO9906:2012 3B |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-250 | |
| ASTM class 35 | |
| Wear ring: | Brass |
| CuZn34Mn3AI2Fe1-C | |
| Impeller: | Cast iron |
| EN-GJL-200 | |
| ASTM class 30 | |
| Internal pump house coating: | CED |
| Shaft: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Range of ambient temperature: | -10 .. 50 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-2 |
| Size of inlet connection: | DN 150 |
| Size of outlet connection: | DN 125 |
| Pressure rating for connection: | PN 16 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | N |
| Electrical data: | |
| Rated power - P2 2.nd value: | 18.5 kW [21 kW] |
| Mains frequency: | 60 Hz |
| Rated voltage 2.nd value: | 3 x 380-420D/660-725Y V [ x 440-480D V] |
| Rated current: | 36,5-33,5/20,6-19,0 A [36.0-33.5 A] |
| Starting current: | 700 % [830 %] |
| Cos phi - power factor: | 0.82 |
| Rated speed: | 1765 rpm [1775 rpm] |
| IE efficiency 2.nd value: | IE4 93,6% [IE4 94,5%] |
| IE Efficiency class: | IE4 |
| Motor efficiency at full load 2.nd value: | 93.6 % [94.5 %] |
| Motor efficiency at 3/4 load 2.nd value: | 94.3 % [94.9 %] |
| Motor efficiency at 1/2 load: | 94.3 % |
| Number of poles: | 4 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 92582379 |
| Bearing insulation type N-end: | HYBRID BEARING |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.62 |
| DOE Pump Energy Index CL: | 0.96 |
| DOE Pump Energy Index VL: | 0.61 |
| Net weight: | 352 kg |
| Gross weight: | 433 kg |
| Shipping volume: | 1.6 m³ |
| Language on pump nameplate: | GB |
Applications
- Commercial air conditioning — Improve user comfort and reduce life-cycle costs with intelligent pumps that integrate easily into your air-based or hydronic cooling system.
- Industrial heating — Solutions for industrial heating applications meet great demands every day from very high temperatures to delicate processes that require extreme precision. There is a high efficiency heat pump from Grundfos for any need.
- Irrigation — Our high-efficiency pumping solutions work seamlessly with modern irrigation systems for agricultural and non-agricultural applications and can operate with on- and off-grid energy sources.
category
- Endsuction close coupled single stageEnd-suction close-coupled single-stage pumps are common in every industrial facility and water treatment plant in the world. Available in both a vertical and horizontal design, the end-suction close-coupled single-stage pumps are easy to install thanks to the compact size and the 90 degree angle from inlet to outlet.
