Grundfos NBE 150-250/262 BASF1KESBQQERW3
Product ID: 93033137
Request Price and Availability
Grundfos NBE 150-250/262 BASF1KESBQQERW3
Grundfos NBE 150-250/262 BASF1KESBQQERW3
| Controls: | |
| VFD product number: | 99616823 |
| Frequency converter: | Built-in |
| Type of frequency converter: | CUE 3X380-500V IP55 RUG 30KW |
| Appr. for VFD: | CE, CULUS, C-TICK |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |

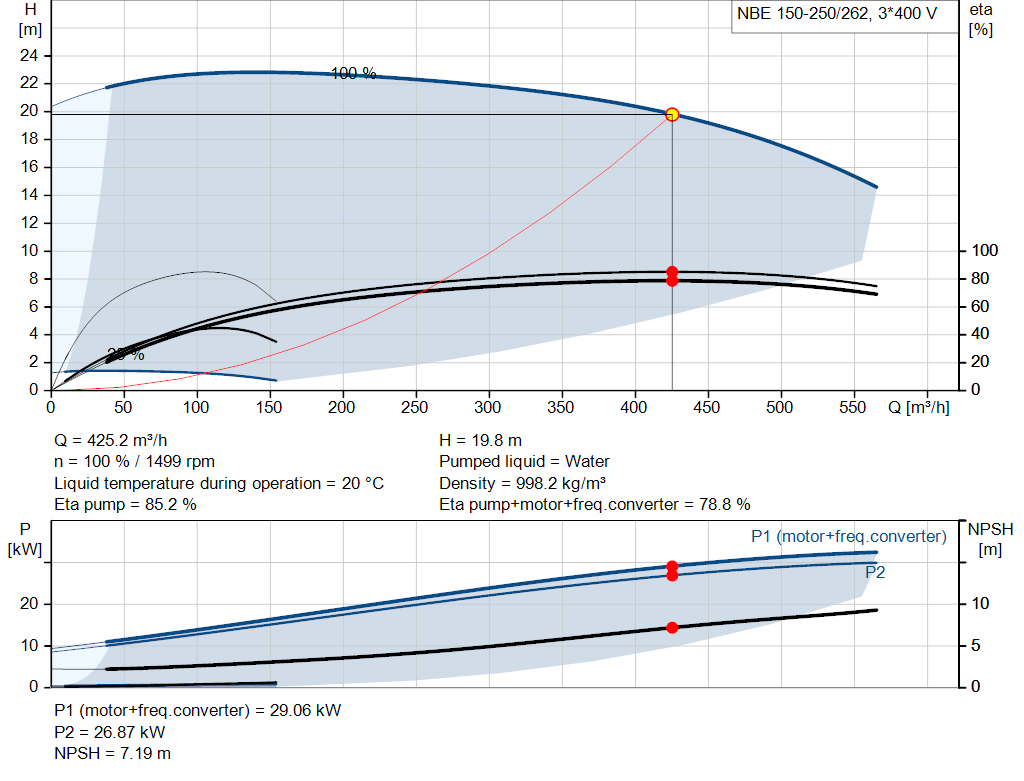

| Technical: | |
| Pump speed on which pump data are based: | 1500 rpm |
| Rated flow: | 425.2 m³/h |
| Rated head: | 19.8 m |
| Actual impeller diameter: | 262 mm |
| Nominal impeller diameter: | 250 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Curve tolerance: | ISO9906:2012 3B |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Wear ring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Flange: | Cast iron |
| EN-GJS-500-7 | |
| ASTM 70-50-05 | |
| Impeller: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Internal pump house coating: | No coating |
| Shaft: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Installation: | |
| Range of ambient temperature: | -10 .. 50 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection standard: | EN 1092-1 |
| Size of inlet connection: | DN 200 |
| Size of outlet connection: | DN 150 |
| Pressure rating for connection: | PN 10 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | Y |

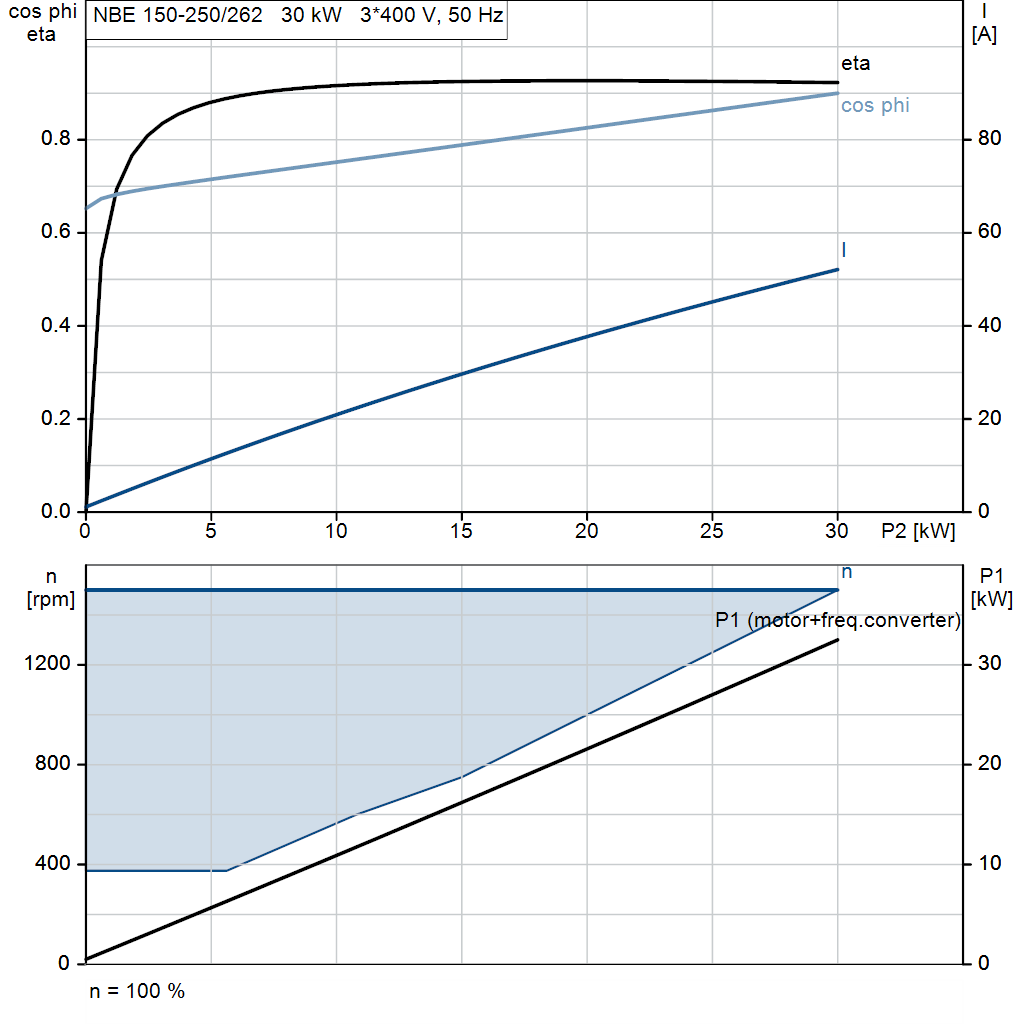

| Electrical data: | |
| Rated power - P2: | 30 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 400 V |
| Rated current: | 57 A |
| Cos phi - power factor: | 0.95 |
| Rated speed: | 150-1500 rpm |
| IE Efficiency class: | IE5 |
| Motor efficiency at full load: | 94.7 % |
| Number of poles: | 4 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 92928097 |
| Bearing insulation type N-end: | N |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.68 |
| Net weight: | 408 kg |
| Gross weight: | 489 kg |
| Shipping volume: | 1.6 m³ |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 96306478 | Kit, Pump shaft |
| 96939132 | Kit, Nut |
| 97757673 | Spare, O-ring |
| 97757693 | Spare, O-ring |
| 98434909 | Spare, Shaft seal |
