Grundfos NBE 125-250/214 AASF2LESBQQEPWA
Product ID: 92968979
Request Price and Availability
Grundfos NBE 125-250/214 AASF2LESBQQEPWA
Grundfos NBE 125-250/214 AASF2LESBQQEPWA
Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). Flanges are PN 16 with dimensions according to EN 1092-1. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The
| Controls: | |
| Frequency converter: | Built-in |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

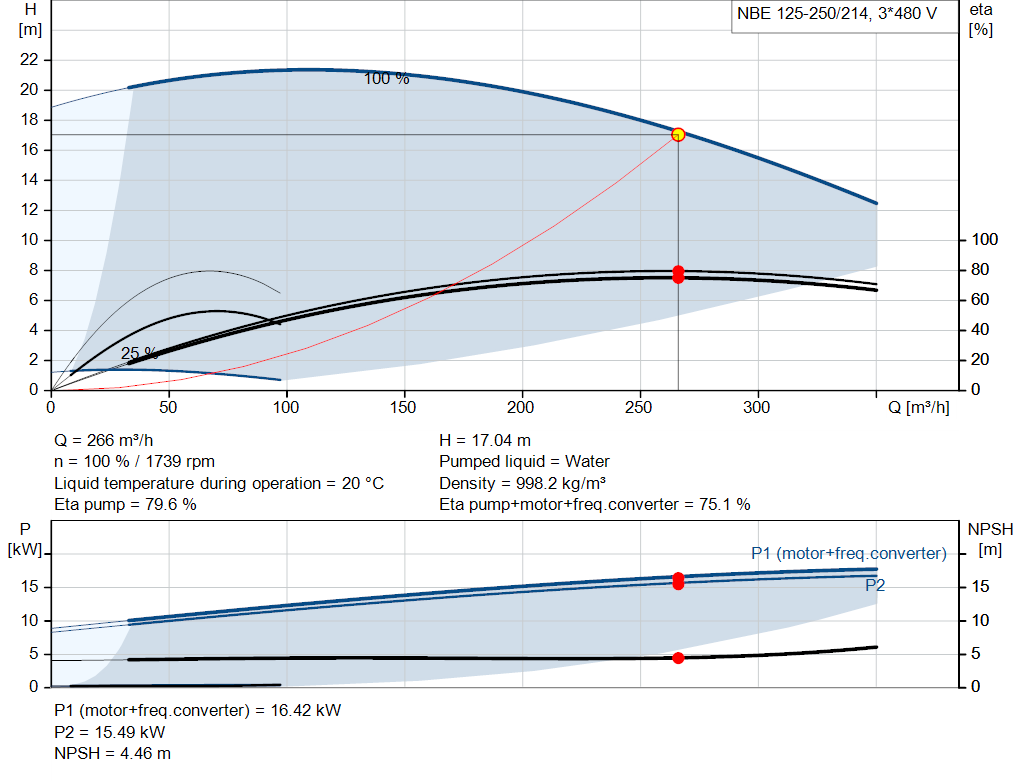

| Pump speed on which pump data are based: | 1737 rpm |
| Rated flow: | 266 m³/h |
| Rated head: | 17.04 m |
| Actual impeller diameter: | 214 mm |
| Nominal impeller diameter: | 250 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Curve tolerance: | ISO9906:2012 3B |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Wear ring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Flange: | Cast iron |
| EN-GJS-500-7 | |
| ASTM 70-50-05 | |
| Impeller: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Internal pump house coating: | No coating |
| Shaft: | Stainless steel |
| EN 1.4462 | |
| SAF 2205 | |
| Installation: | |
| Range of ambient temperature: | -20 .. 50 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-1 |
| Size of inlet connection: | DN 150 |
| Size of outlet connection: | DN 125 |
| Pressure rating for connection: | PN 16 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | Y |

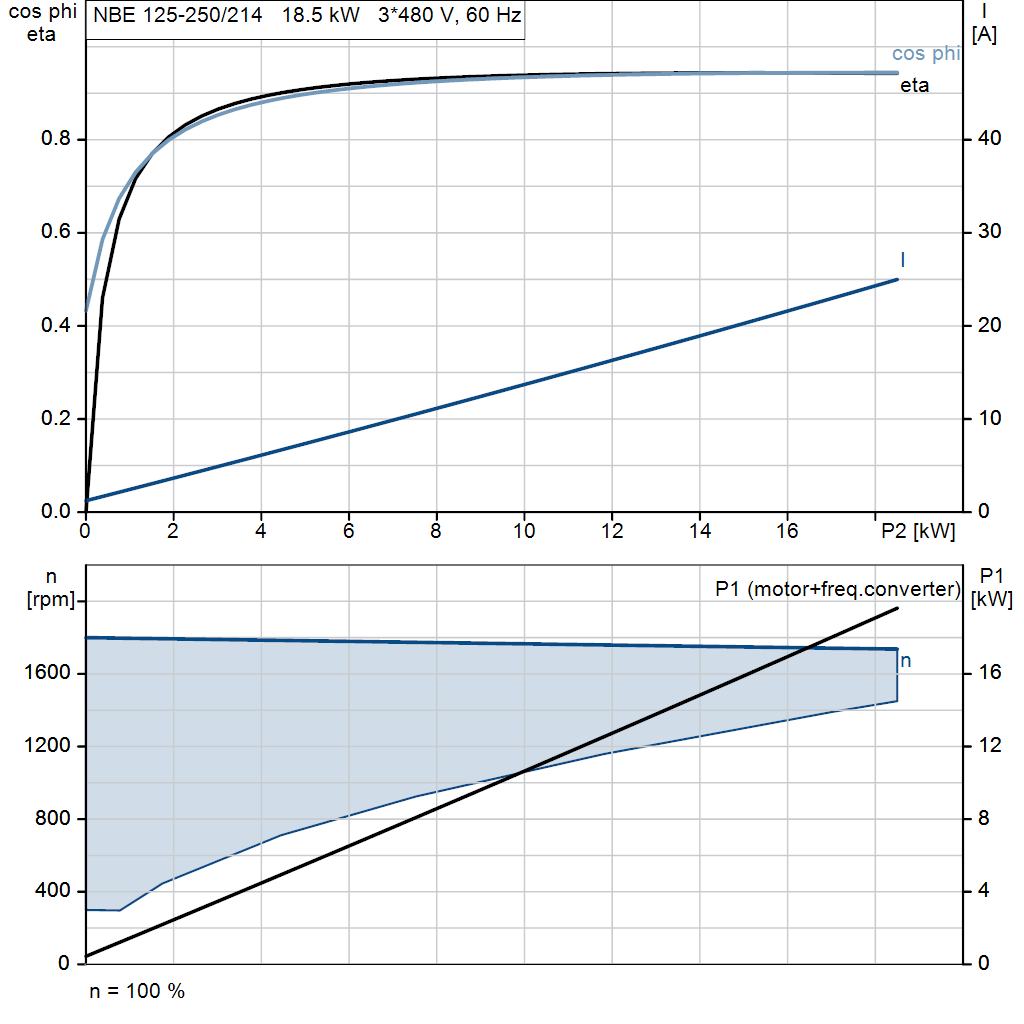

| Electrical data: | |
| Rated power - P2: | 18.5 kW |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 380-480 V |
| Rated current: | 33.2-26.9 A |
| Cos phi - power factor: | 0.94-0.93 |
| Rated speed: | 180-2200 rpm |
| IE Efficiency class: | IE5 |
| Motor efficiency at full load: | 93.2 % |
| Number of poles: | 4 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 92875538 |
| Bearing insulation type N-end: | Steel Bearing |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.62 |
| DOE Pump Energy Index VL: | 0.61 |
| Net weight: | 280 kg |
| Gross weight: | 312 kg |
| Shipping volume: | 0.951 m³ |
| Language on pump nameplate: | GB |
