Grundfos NBE 50-315/300 AIAF2KVSBQQVTW1
Product ID: 92942619
Request Price and Availability
Grundfos NBE 50-315/300 AIAF2KVSBQQVTW1
Grundfos NBE 50-315/300 AIAF2KVSBQQVTW1
| Controls: | |
| VFD product number: | 99616825 |
| Frequency converter: | Built-in |
| Type of frequency converter: | CUE 3X380-500V IP55 RUG 45KW |
| Appr. for VFD: | CE, CULUS, C-TICK |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -10 .. 90 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

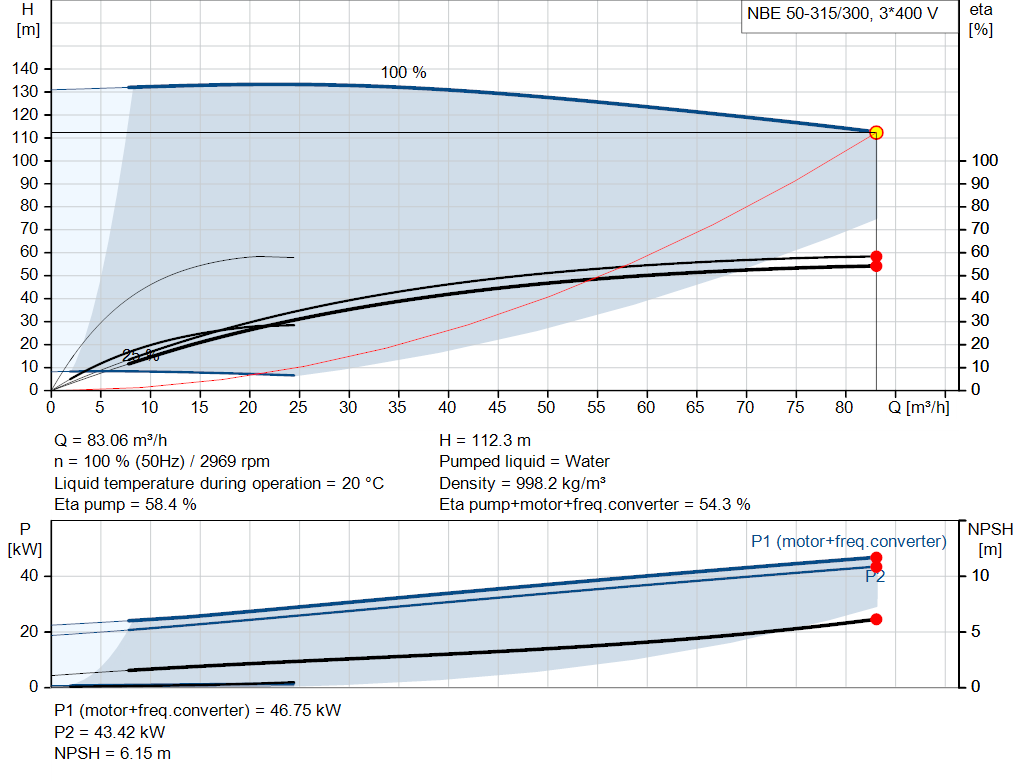

| Pump speed on which pump data are based: | 2970 rpm |
| Rated flow: | 83.06 m³/h |
| Rated head: | 112.3 m |
| Actual impeller diameter: | 300 mm |
| Nominal impeller diameter: | 315 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BQQV |
| Code for shaft seal: | BQQV |
| Curve tolerance: | ISO9906:2012 3B |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Wear ring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Impeller: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Internal pump house coating: | No coating |
| Shaft: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Installation: | |
| Range of ambient temperature: | -10 .. 50 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-1 |
| Size of inlet connection: | DN 65 |
| Size of outlet connection: | DN 50 |
| Pressure rating for connection: | PN 16 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | N |
| Electrical data: | |
| Rated power - P2: | 45 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-420D/660-725Y V |
| Rated current: | 80/46.5 A |
| Starting current: | 880 % |
| Cos phi - power factor: | 0.85 |
| Rated speed: | 2970 rpm |
| IE efficiency: | IE4 95,0% |
| IE Efficiency class: | IE4 |
| Motor efficiency at full load: | 95.0 % |
| Motor efficiency at 3/4 load: | 95.0 % |
| Motor efficiency at 1/2 load: | 94.4 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 92779390 |
| Bearing insulation type N-end: | COATED RING |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.56 |
| Net weight: | 510 kg |
| Gross weight: | 591 kg |
| Shipping volume: | 1.6 m³ |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 96810143 | Kit, Wear ring |
| 96847117 | Kit, Pump shaft |
| 96939130 | Kit, Nut |
| 97757705 | Spare, O-ring |
| 98434908 | Spare, Shaft seal |
Applications
- Commercial air conditioning — Improve user comfort and reduce life-cycle costs with intelligent pumps that integrate easily into your air-based or hydronic cooling system.
- Industrial heating — Solutions for industrial heating applications meet great demands every day from very high temperatures to delicate processes that require extreme precision. There is a high efficiency heat pump from Grundfos for any need.
- Irrigation — Our high-efficiency pumping solutions work seamlessly with modern irrigation systems for agricultural and non-agricultural applications and can operate with on- and off-grid energy sources.
category
- Endsuction close coupled single stageEnd-suction close-coupled single-stage pumps are common in every industrial facility and water treatment plant in the world. Available in both a vertical and horizontal design, the end-suction close-coupled single-stage pumps are easy to install thanks to the compact size and the 90 degree angle from inlet to outlet.
