Grundfos NBE 250-350/294 AIAF1AVSBQQVTW3
Product ID: 92942119
Request Price and Availability
Grundfos NBE 250-350/294 AIAF1AVSBQQVTW3
Grundfos NBE 250-350/294 AIAF1AVSBQQVTW3

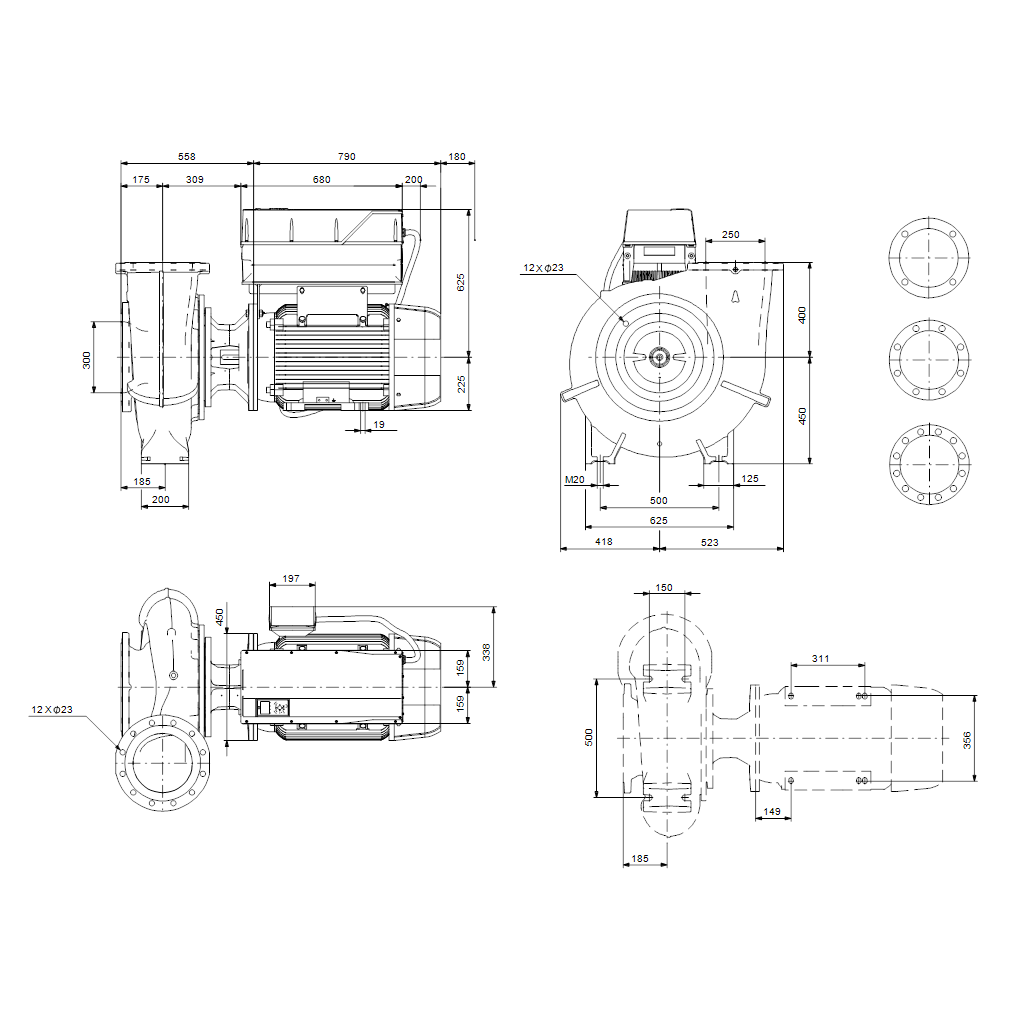

Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). Flanges are PN 10 with dimensions according to EN 1092-2. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The
| Controls: | |
| VFD product number: | 99616825 |
| Frequency converter: | Built-in |
| Type of frequency converter: | CUE 3X380-500V IP55 RUG 45KW |
| Appr. for VFD: | CE, CULUS, C-TICK |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -10 .. 90 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 1485 rpm |

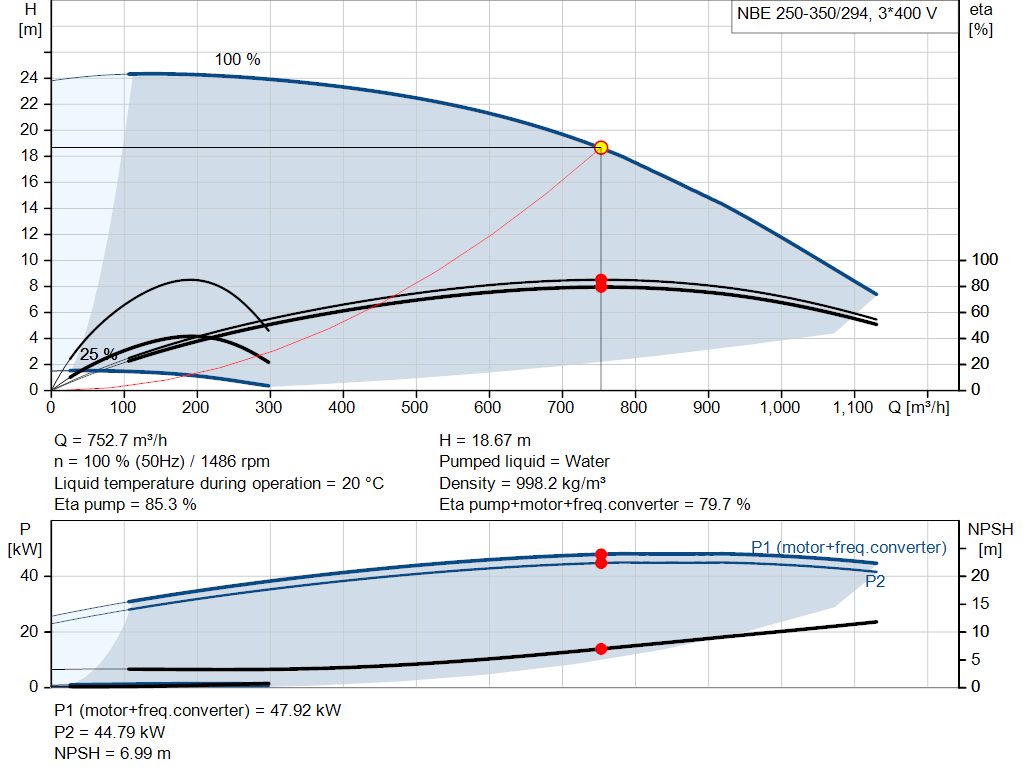

| Rated flow: | 752.7 m³/h |
| Rated head: | 18.67 m |
| Actual impeller diameter: | 294 mm |
| Nominal impeller diameter: | 350 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BQQV |
| Code for shaft seal: | BQQV |
| Curve tolerance: | ISO9906:2012 3B |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-250 | |
| ASTM class 35 | |
| Wear ring: | Brass |
| CuZn34Mn3AI2Fe1-C | |
| Impeller: | Cast iron |
| EN-GJL-200 | |
| ASTM class 30 | |
| Internal pump house coating: | CED |
| Shaft: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Range of ambient temperature: | -10 .. 50 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection standard: | EN 1092-2 |
| Size of inlet connection: | DN 300 |
| Size of outlet connection: | DN 250 |
| Pressure rating for connection: | PN 10 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | N |
| Electrical data: | |
| Rated power - P2: | 45 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-420D/660-725Y V |
| Rated current: | 81.0/47.0 A |
| Starting current: | 800 % |
| Cos phi - power factor: | 0.84 |
| Rated speed: | 1485 rpm |
| IE efficiency: | IE4 95,4% |
| IE Efficiency class: | IE4 |
| Motor efficiency at full load: | 95.4 % |
| Motor efficiency at 3/4 load: | 95.7 % |
| Motor efficiency at 1/2 load: | 95.4 % |
| Number of poles: | 4 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 92691594 |
| Bearing insulation type N-end: | CERAMIC SHAFT COATING |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 866 kg |
| Gross weight: | 967 kg |
| Shipping volume: | 2.59 m³ |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 96939613 | Kit, Wear ring |
| 97757707 | Spare, O-ring |
| 98164277 | Spare, Plug vent |
