Grundfos NB 250-350/366 AAF1AESBQQEQW5
Product ID: 98975468
Request Price and Availability
Grundfos NB 250-350/366 AAF1AESBQQEQW5
Grundfos NB 250-350/366 AAF1AESBQQEQW5
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

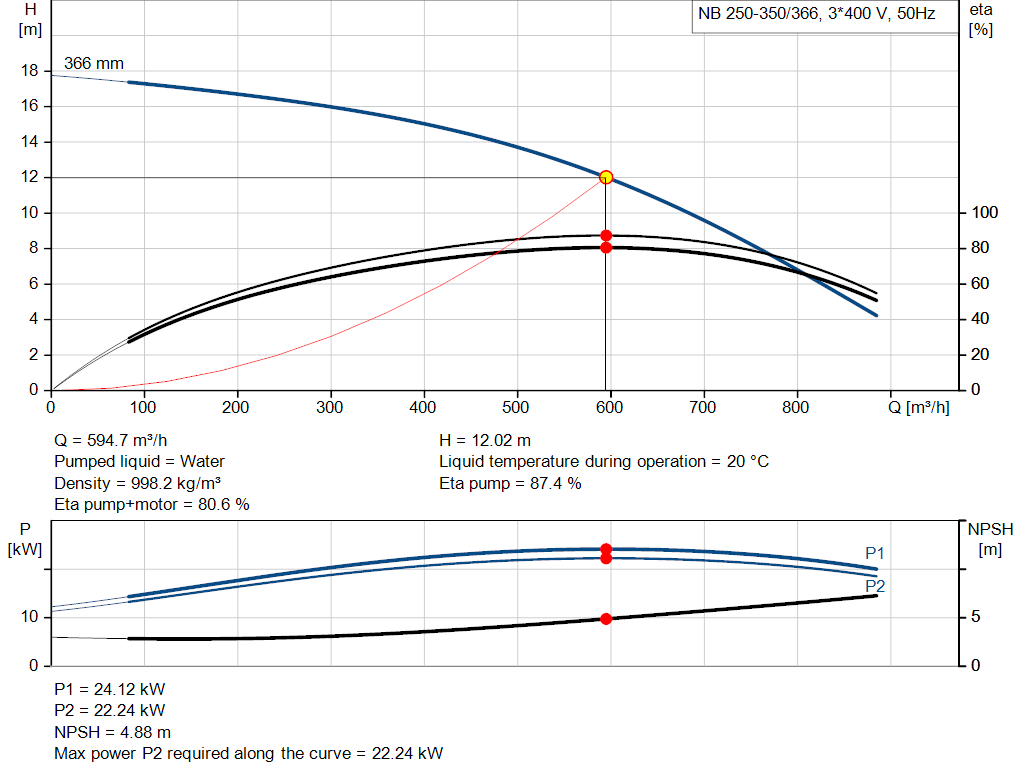

| Pump speed on which pump data are based: | 978 rpm |
| Rated flow: | 594.1 m³/h |
| Rated head: | 12 m |
| Actual impeller diameter: | 366 mm |
| Nominal impeller diameter: | 350 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Curve tolerance: | ISO9906:2012 3B |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-250 | |
| ASTM class 35 | |
| Wear ring: | Brass |
| CuZn34Mn3AI2Fe1-C | |
| Impeller: | Cast iron |
| EN-GJL-200 | |
| ASTM class 30 | |
| Internal pump house coating: | CED |
| Shaft: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum ambient temperature: | 55 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection standard: | EN 1092-2 |
| Size of inlet connection: | DN 300 |
| Size of outlet connection: | DN 250 |
| Pressure rating for connection: | PN 10 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | N |
| Electrical data: | |
| Motor type: | INNOMOTICS |
| Rated power - P2: | 22 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-420D/660-725Y V |
| Rated current: | 43.5/25.5 A |
| Starting current: | 560 % |
| Cos phi - power factor: | 0.79 |
| Rated speed: | 978 rpm |
| IE efficiency: | IE3 92,2% |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 92.2 % |
| Motor efficiency at 3/4 load: | 92.8 % |
| Motor efficiency at 1/2 load: | 92.3 % |
| Number of poles: | 6 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 83W15430 |
| Bearing insulation type N-end: | Steel Bearing |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 702 kg |
| Gross weight: | 748 kg |
| Shipping volume: | 1.39 m³ |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 96939613 | Kit, Wear ring |
| 97757676 | Spare, O-ring |
| 98164277 | Spare, Plug vent |
| 98434943 | Spare, Shaft seal |
