Grundfos NB 100-315/269 AAF2AESBQQE1W1
Product ID: 98844555
Request Price and Availability
Grundfos NB 100-315/269 AAF2AESBQQE1W1
Grundfos NB 100-315/269 AAF2AESBQQE1W1
Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). Flanges are PN 16 with dimensions according to EN 1092-2. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |

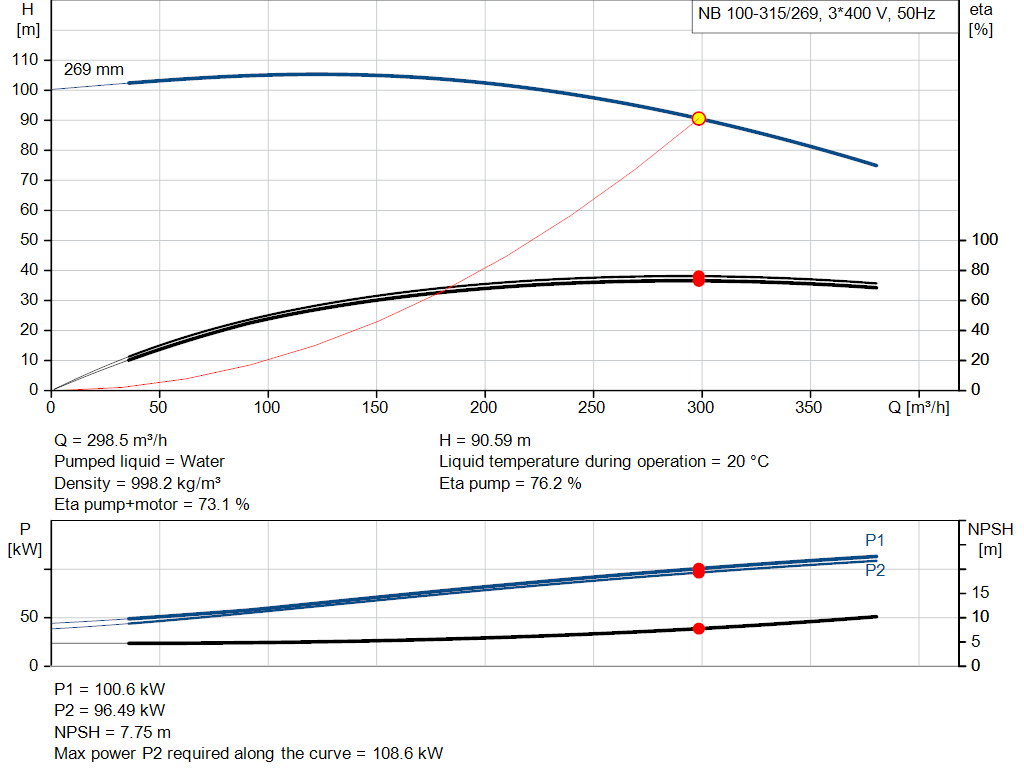

| Technical: | |
| Pump speed on which pump data are based: | 2988 rpm |
| Rated flow: | 298.6 m³/h |
| Rated head: | 90.66 m |
| Actual impeller diameter: | 269 mm |
| Nominal impeller diameter: | 315 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Curve tolerance: | ISO9906:2012 3B |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-250 | |
| ASTM class 35 | |
| Wear ring: | Brass |
| CuZn34Mn3AI2Fe1-C | |
| Impeller: | Cast iron |
| EN-GJL-200 | |
| ASTM class 30 | |
| Internal pump house coating: | CED |
| Shaft: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |

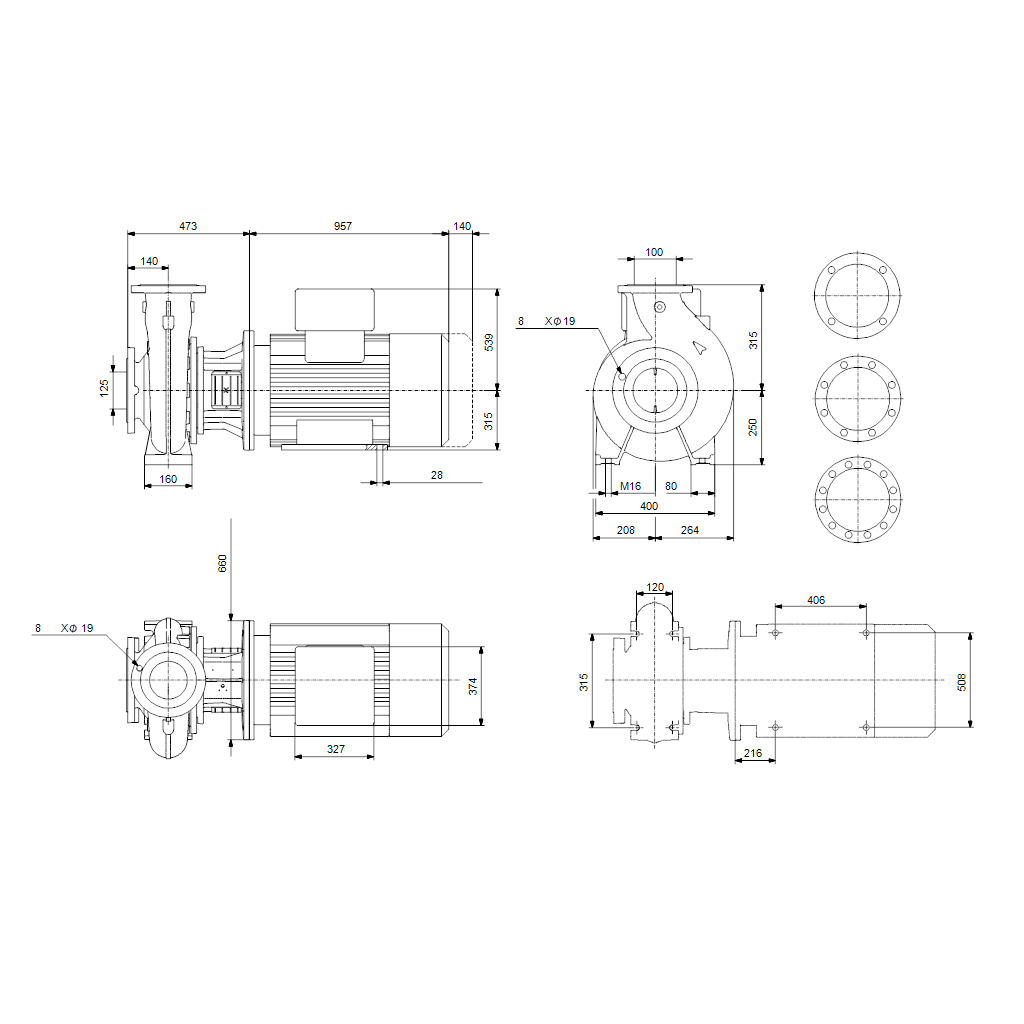

| Installation: | |
| Maximum ambient temperature: | 55 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-2 |
| Size of inlet connection: | DN 125 |
| Size of outlet connection: | DN 100 |
| Pressure rating for connection: | PN 16 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | N |

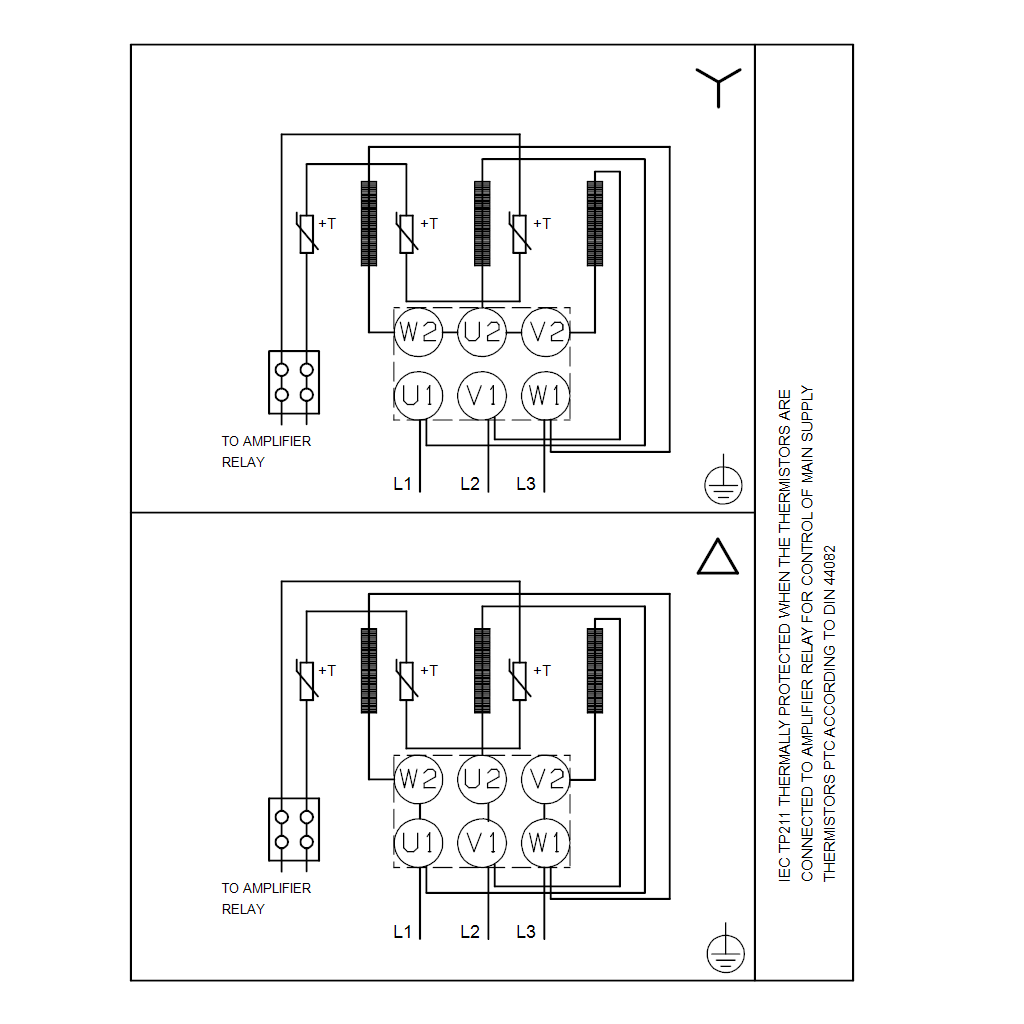

| Electrical data: | |
| Motor type: | INNOMOTICS |
| Rated power - P2: | 110 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-420D/660-725Y V |
| Rated current: | 184/107 A |
| Starting current: | 910 % |
| Cos phi - power factor: | 0.9 |
| Rated speed: | 2988 rpm |
| IE efficiency: | IE4 96% |
| IE Efficiency class: | IE4 |
| Motor efficiency at full load: | 96 % |
| Motor efficiency at 3/4 load: | 95.9 % |
| Motor efficiency at 1/2 load: | 95.1 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 92898814 |
| Bearing insulation type N-end: | Steel Bearing |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.63 |
| Net weight: | 1150 kg |
| Gross weight: | 1200 kg |
| Shipping volume: | 1.41 m³ |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 96939130 | Kit, Nut |
| 97757675 | Spare, O-ring |
| 98164277 | Spare, Plug vent |
| 98434906 | Spare, Shaft seal |
| 99208807 | Spare, Wear ring |
