Grundfos NB 32-160/163 AAF2LESBQQEKW1
Product ID: 98463699
Request Price and Availability
Grundfos NB 32-160/163 AAF2LESBQQEKW1
Grundfos NB 32-160/163 AAF2LESBQQEKW1
Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). Flanges are PN 16 with dimensions according to EN 1092-1. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

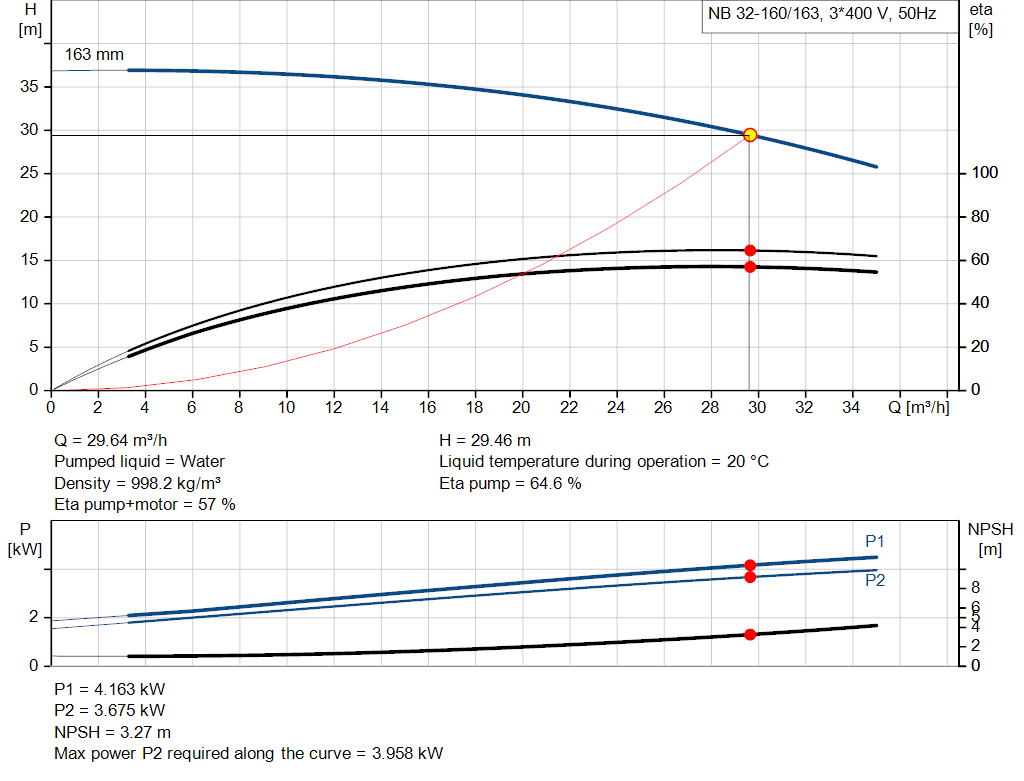

| Pump speed on which pump data are based: | 2950 rpm |
| Rated flow: | 29.6 m³/h |
| Rated head: | 29.39 m |
| Actual impeller diameter: | 163 mm |
| Nominal impeller diameter: | 160 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Curve tolerance: | ISO9906:2012 3B2 |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Wear ring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Impeller: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Internal pump house coating: | No coating |
| Shaft: | Stainless steel |
| EN 1.4462 | |
| SAF 2205 | |
| Installation: | |
| Maximum ambient temperature: | 55 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-1 |
| Size of inlet connection: | DN 50 |
| Size of outlet connection: | DN 32 |
| Pressure rating for connection: | PN 16 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | N |
| Electrical data: | |
| Motor type: | INNOMOTICS |
| Rated power - P2: | 4 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 220-240D/380-420Y V |
| Rated current: | 12.8/7.4 A |
| Starting current: | 870 % |
| Cos phi - power factor: | 0.89 |
| Rated speed: | 2950 rpm |
| IE efficiency: | IE3 88,1% |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 88.1 % |
| Motor efficiency at 3/4 load: | 88.7 % |
| Motor efficiency at 1/2 load: | 88.2 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 83U05213 |
| Bearing insulation type N-end: | Steel Bearing |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.59 |
| Net weight: | 67 kg |
| Gross weight: | 77 kg |
| Shipping volume: | 0.178 m³ |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 96658826 | Spare, Shaft seal |
| 96810134 | Kit, Wear ring |
| 96847110 | Kit, Pump shaft |
| 97757659 | Spare, O-ring |
