Grundfos NB 125-500/406 AASF2KESBQQEUW3
Product ID: 98309424
Request Price and Availability
Grundfos NB 125-500/406 AASF2KESBQQEUW3
Grundfos NB 125-500/406 AASF2KESBQQEUW3
Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). Flanges are PN 16 with dimensions according to EN 1092-1. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

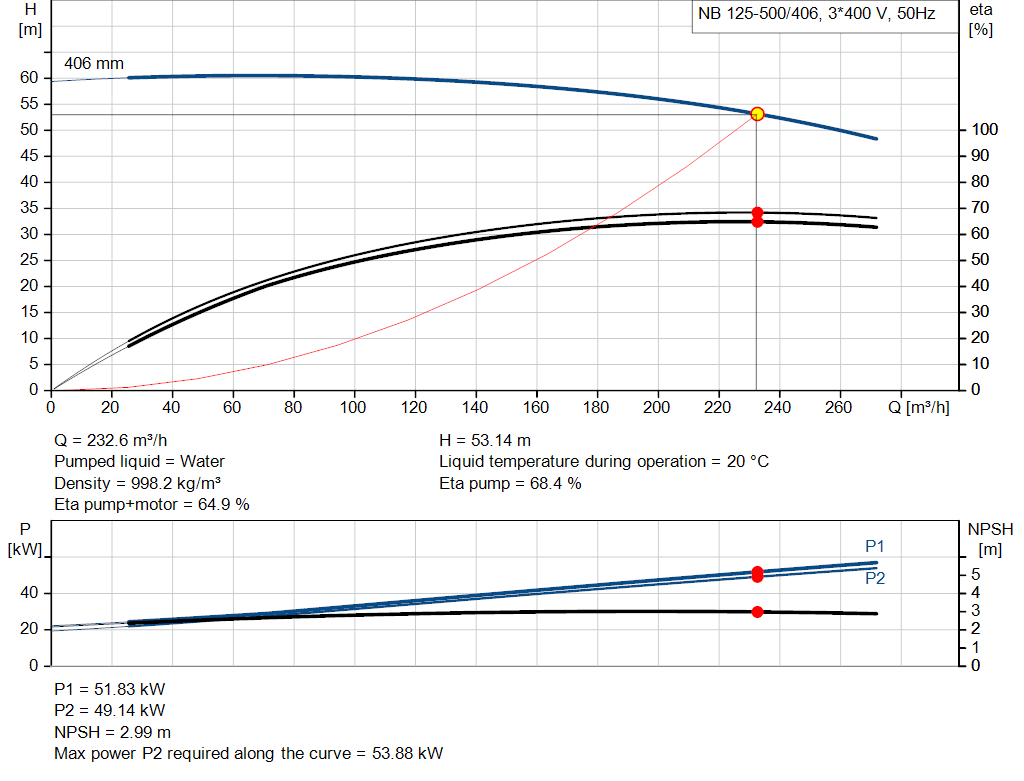

| Pump speed on which pump data are based: | 1482 rpm |
| Rated flow: | 232.2 m³/h |
| Rated head: | 52.96 m |
| Actual impeller diameter: | 406 mm |
| Nominal impeller diameter: | 500 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Curve tolerance: | ISO9906:2012 3B |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Wear ring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Flange: | Cast iron |
| EN-GJS-500-7 | |
| ASTM 70-50-05 | |
| Impeller: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Internal pump house coating: | No coating |
| Shaft: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Installation: | |
| Maximum ambient temperature: | 55 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-1 |
| Size of inlet connection: | DN 150 |
| Size of outlet connection: | DN 125 |
| Pressure rating for connection: | PN 16 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | Y |
| Electrical data: | |
| Motor type: | INNOMOTICS |
| Rated power - P2: | 55 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-420D/660-725Y V |
| Rated current: | 96/56 A |
| Starting current: | 680 % |
| Cos phi - power factor: | 0.87 |
| Rated speed: | 1482 rpm |
| IE efficiency: | IE3 94,6% |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 94.6 % |
| Motor efficiency at 3/4 load: | 95.1 % |
| Motor efficiency at 1/2 load: | 95 % |
| Number of poles: | 4 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 99032216 |
| Bearing insulation type N-end: | Steel Bearing |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.50 |
| Net weight: | 906 kg |
| Gross weight: | 954 kg |
| Shipping volume: | 1.44 m³ |
| Danish VVS No.: | 386076501 |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 97757679 | Spare, O-ring |
| 97757693 | Spare, O-ring |
| 98434945 | Spare, Shaft seal |
