Grundfos NB 32-160.1/139 AAF2KESBQQEHW1
Product ID: 98288133
Request Price and Availability
Grundfos NB 32-160.1/139 AAF2KESBQQEHW1
Grundfos NB 32-160.1/139 AAF2KESBQQEHW1
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |

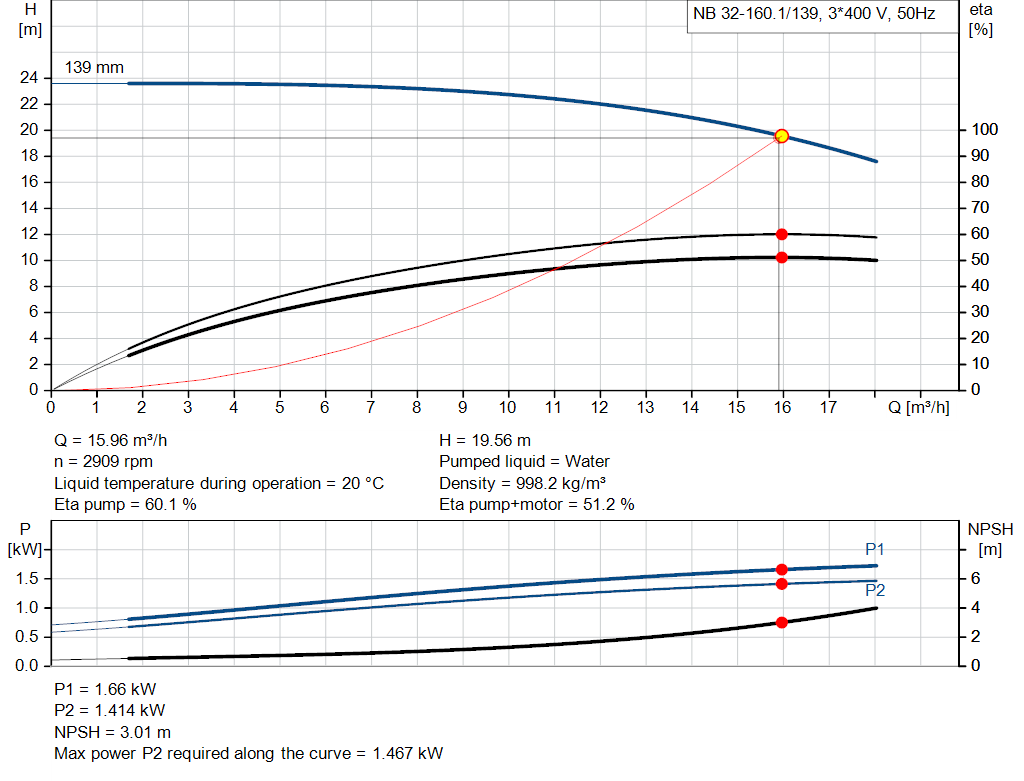

| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |
| Rated flow: | 15.9 m³/h |
| Rated head: | 19.4 m |
| Actual impeller diameter: | 139 mm |
| Nominal impeller diameter: | 160.1 |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Curve tolerance: | ISO9906:2012 3B2 |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Wear ring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Impeller: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Internal pump house coating: | No coating |
| Shaft: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |

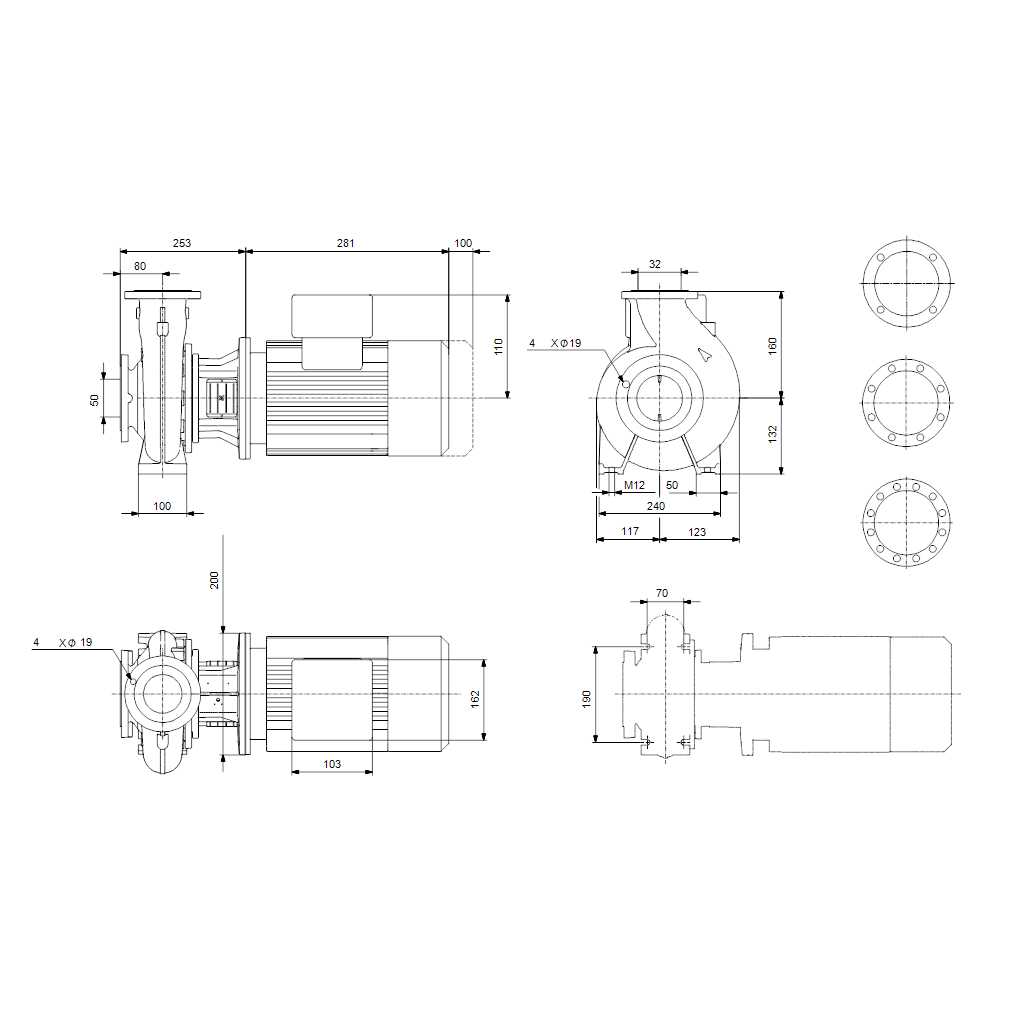

| Installation: | |
| Maximum ambient temperature: | 60 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-1 |
| Size of inlet connection: | DN 50 |
| Size of outlet connection: | DN 32 |
| Pressure rating for connection: | PN 16 |
| Bearing lubrication: | Grease |
| Pump housing with feet (Yes/No): | Yes |
| Support block (Yes/No): | N |

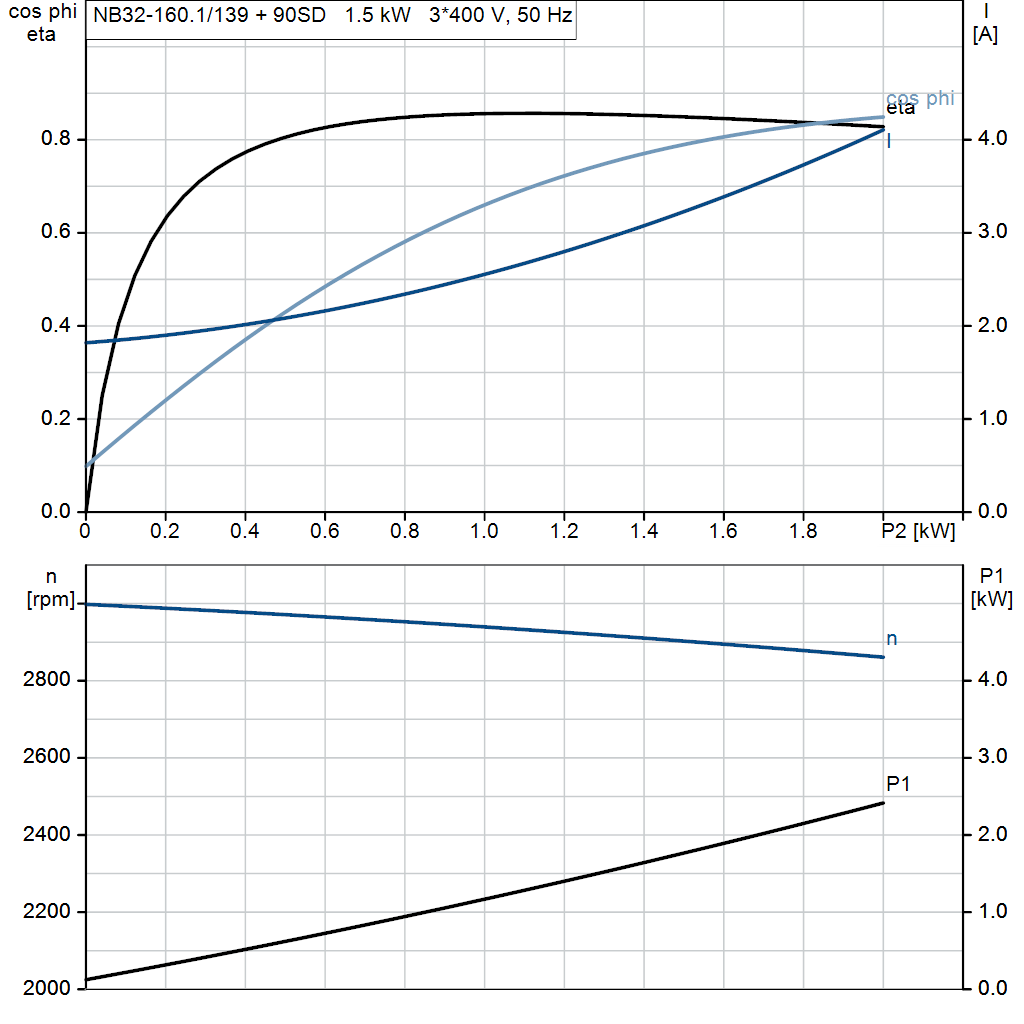

| Electrical data: | |
| Motor type: | 90SD |
| Rated power - P2: | 1.5 kW |
| Mains frequency: | 50 Hz |

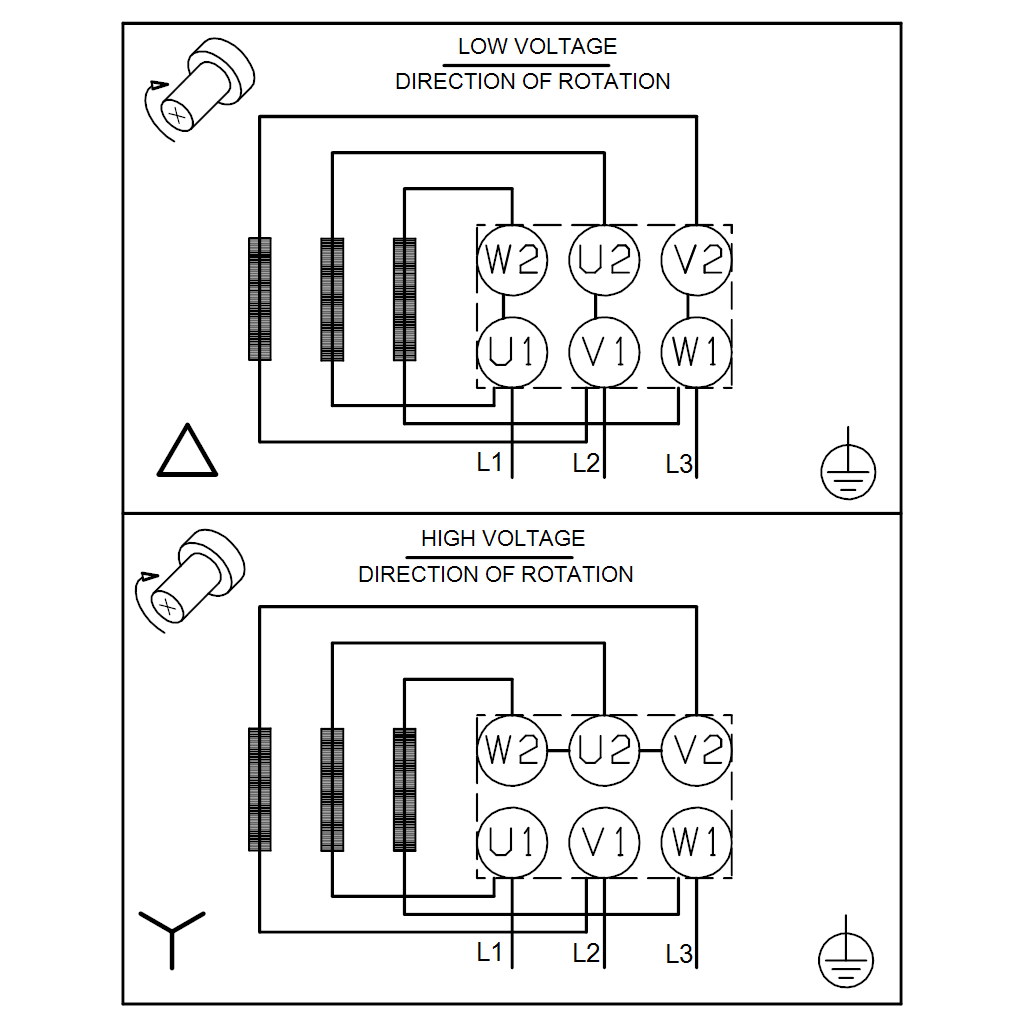

| Rated voltage: | 3 x 220-240D/380-415Y V |
| Rated current: | 5.70/3.30 A |
| Starting current: | 750-820 % |
| Rated speed: | 2890-2910 rpm |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 84.2 % |
| Motor efficiency at 3/4 load: | 86.4-84.9 % |
| Motor efficiency at 1/2 load: | 86.0-83.0 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting |
| Insulation class (IEC 85): | F |
| Motor No: | 99583820 |
| Bearing insulation type N-end: | Steel Bearing |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 47 kg |
| Gross weight: | 57 kg |
| Shipping volume: | 0.178 m³ |
| Danish VVS No.: | 386070181 |
| Language on pump nameplate: | GB |
Spare Parts
| Part Number | Product Name |
|---|---|
| 96847108 | Kit, Pump shaft |
| 96939128 | Kit, Nut |
| 97757659 | Spare, O-ring |
| 97939265 | Kit, Wear ring |
| 98434904 | Spare, Shaft seal |
