Grundfos CMBE 10-54 I-U-C-C-G-C
Product ID: 98563731
Request Price and Availability
Grundfos CMBE 10-54 I-U-C-C-G-C
Grundfos CMBE 10-54 I-U-C-C-G-C
| NB: | |
| Suction lift: | maximum 1 m, including inlet pipe pressure loss at a liquid temperature of 20 °C (not self-priming). |
| Controls: | |

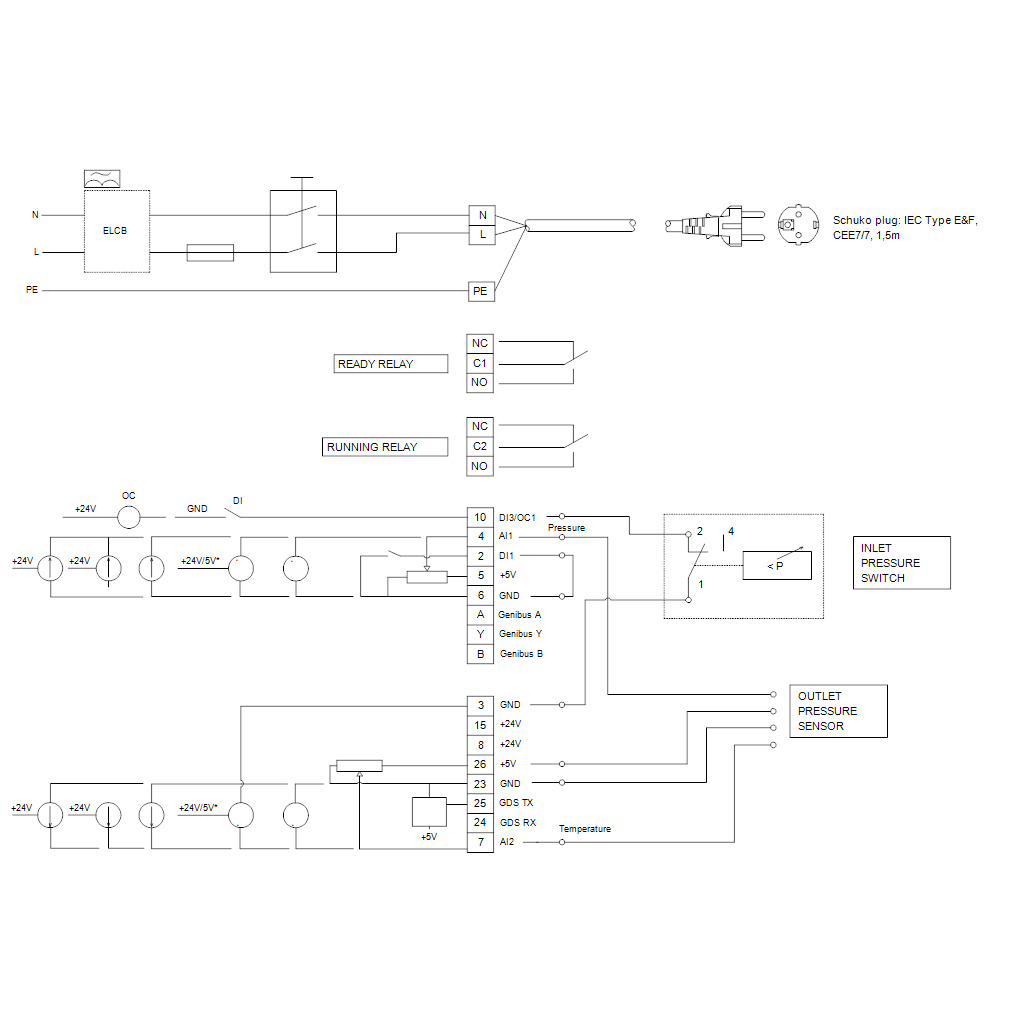

| Type of connector: | Type E/F (CEE7/7) |
| Frequency converter: | Built-in |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 0 .. 60 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 3868 rpm |

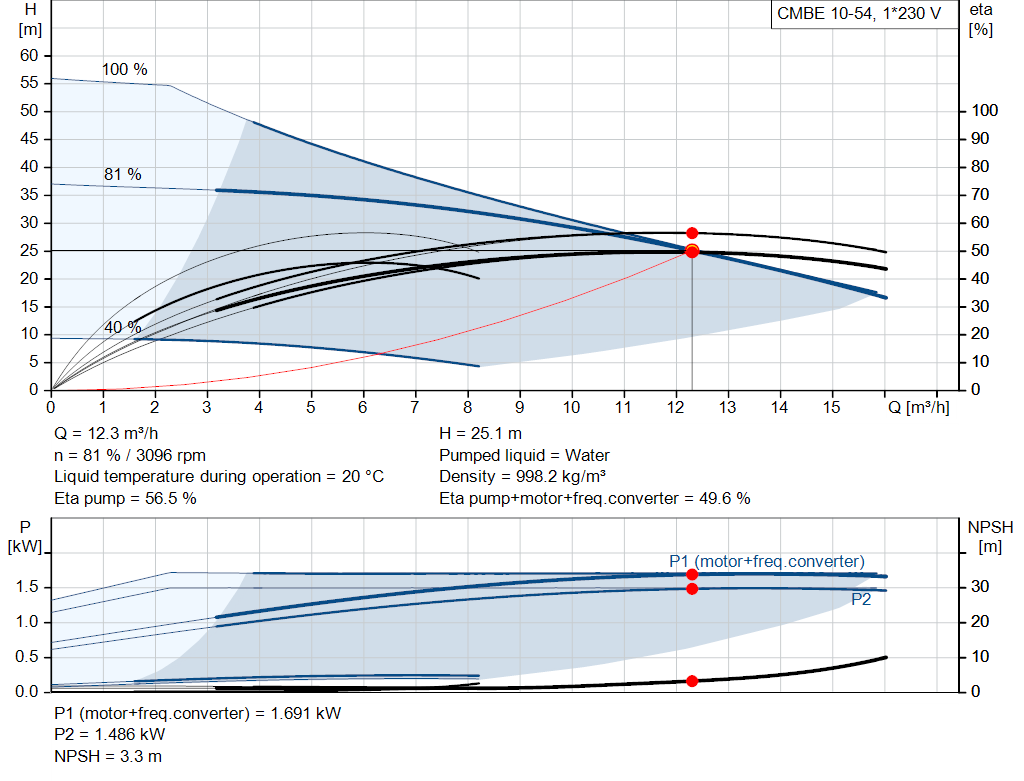

| Rated flow: | 12.3 m³/h |
| Rated head: | 25.1 m |
| Primary shaft seal: | AVBE |
| Code for shaft seal: | AVBE |
| Approvals: | CE,EAC,CN ROHS EXE,MORO |
| Approvals for drinking water: | UBA |
| Curve tolerance: | ISO9906:2012 3B |
| Return valve: | YES |
| Start pressure: | Integrated Frequency converter |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum ambient temperature: | 55 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection standard: | ISO 228-1 |
| Type of inlet connection: | Rp |
| Type of outlet connection: | Rp |

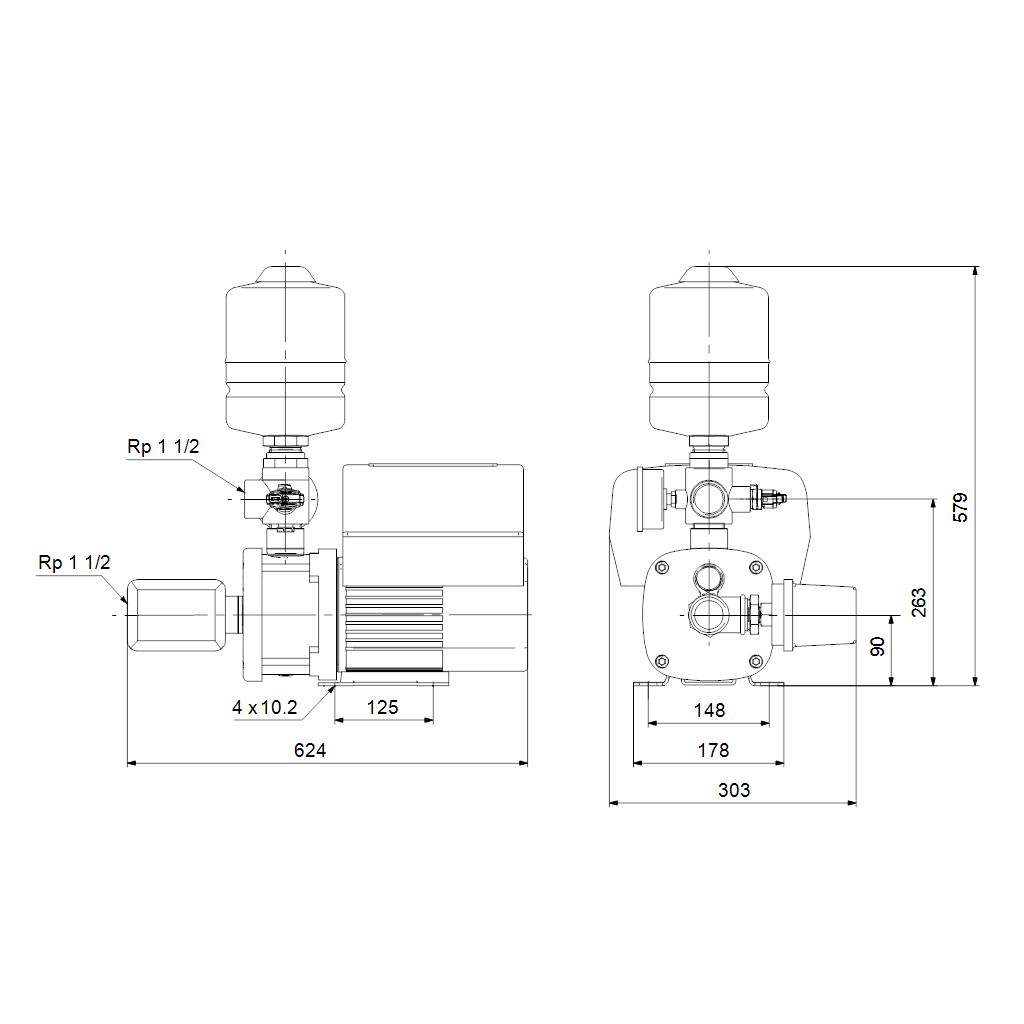

| Size of inlet connection: | 1 1/2 |
| Size of outlet connection: | 1 1/2 |
| Pressure rating for connection: | PN 10 |
| Electrical data: | |

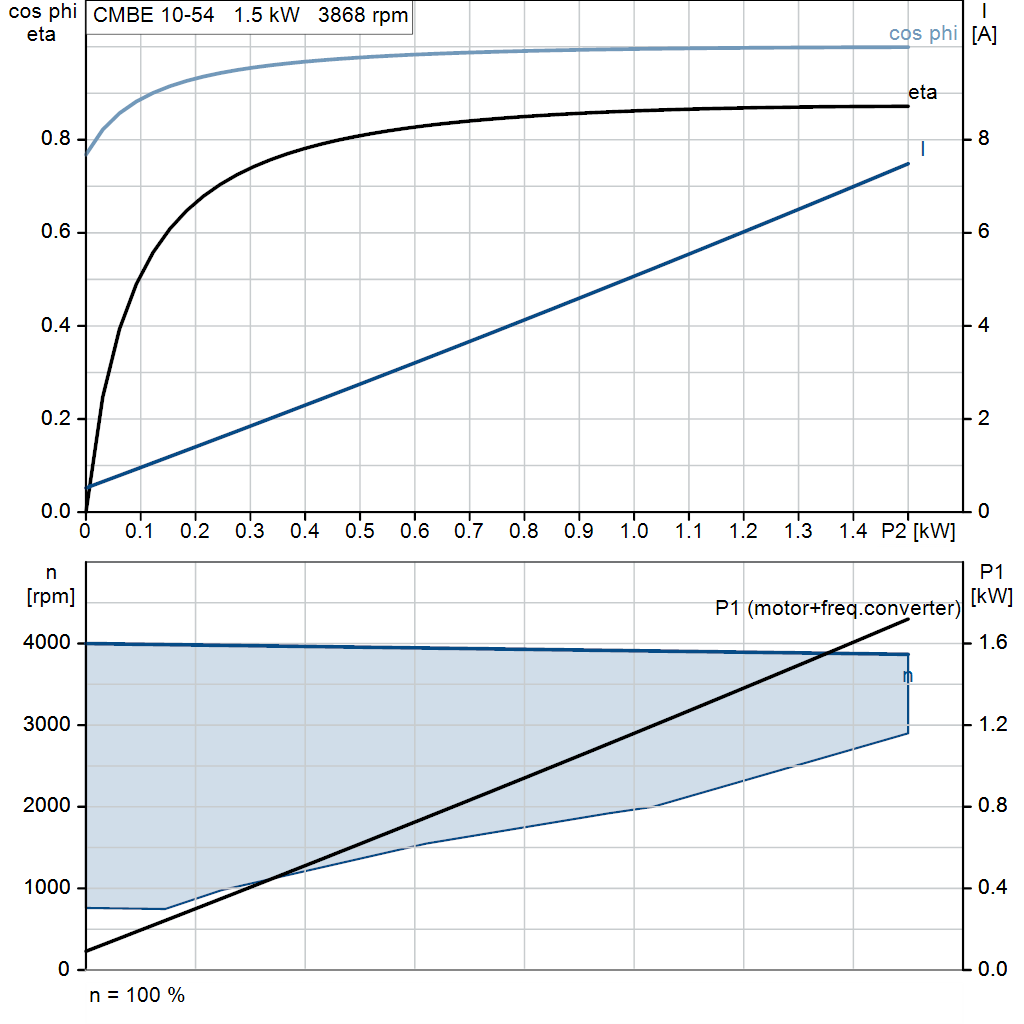

| Rated power - P2: | 1.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 200-240 V |
| Maximum current consumption: | 9.10-7.60 A |
| Rated speed: | 360-4000 rpm |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Length of cable: | 1.5 m |
| Power plug: | Schuko plug |
| Tank: | |
| Tank volume: | 2 l |
| Others: | |
| Net weight: | 24.2 kg |
| Gross weight: | 32.4 kg |
| Shipping volume: | 0.203 m³ |
| Environmental approvals: | WEEE |
