Grundfos CMBE 5-31 I-U-C-D-D-B
Product ID: 98374695
Request Price and Availability
Grundfos CMBE 5-31 I-U-C-D-D-B
Grundfos CMBE 5-31 I-U-C-D-D-B
| NB: | |
| Suction lift: | Max. 1 m, including suction-pipepressure loss at a liquid temperature of +20 °C. (not self-priming) |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 0 .. 60 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 3780 rpm |

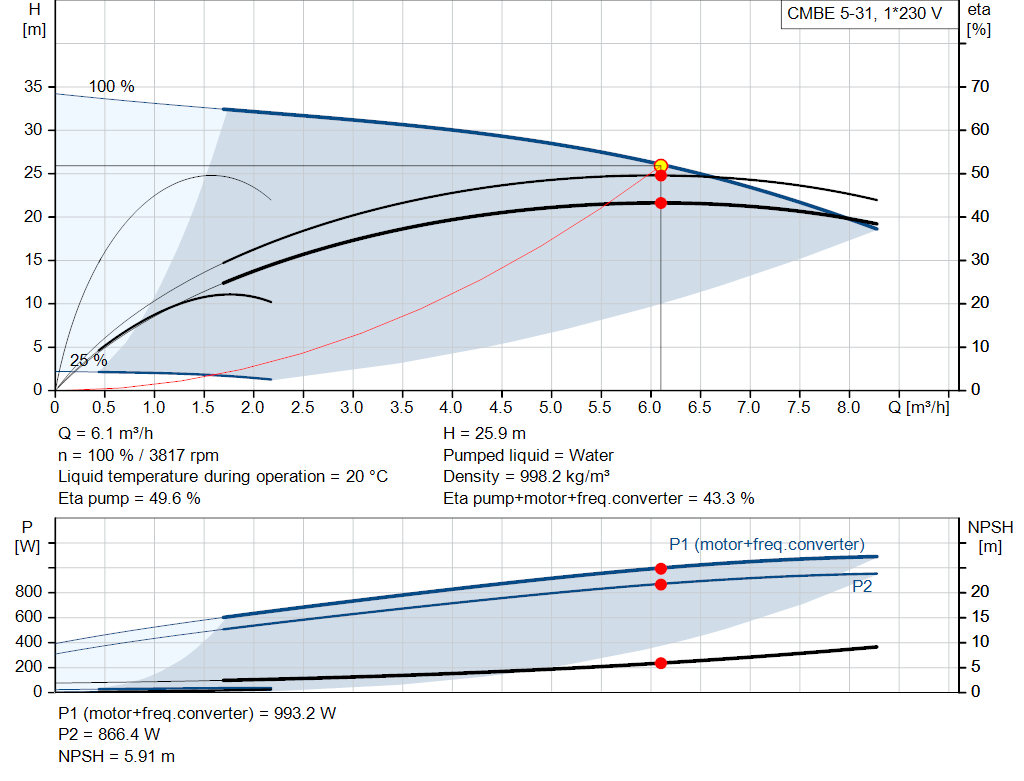

| Rated flow: | 6.1 m³/h |
| Rated head: | 25.9 m |
| Primary shaft seal: | AVBE |
| Code for shaft seal: | AVBE |
| Approvals: | CE |
| Curve tolerance: | ISO9906:2012 3B |
| Return valve: | YES |
| Start pressure: | Integrated Frequency converter |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum ambient temperature: | 55 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection standard: | ISO 228-1 |
| Type of inlet connection: | RP |
| Type of outlet connection: | RP |
| Size of inlet connection: | 1 1/4 |
| Size of outlet connection: | 1 |
| Electrical data: | |

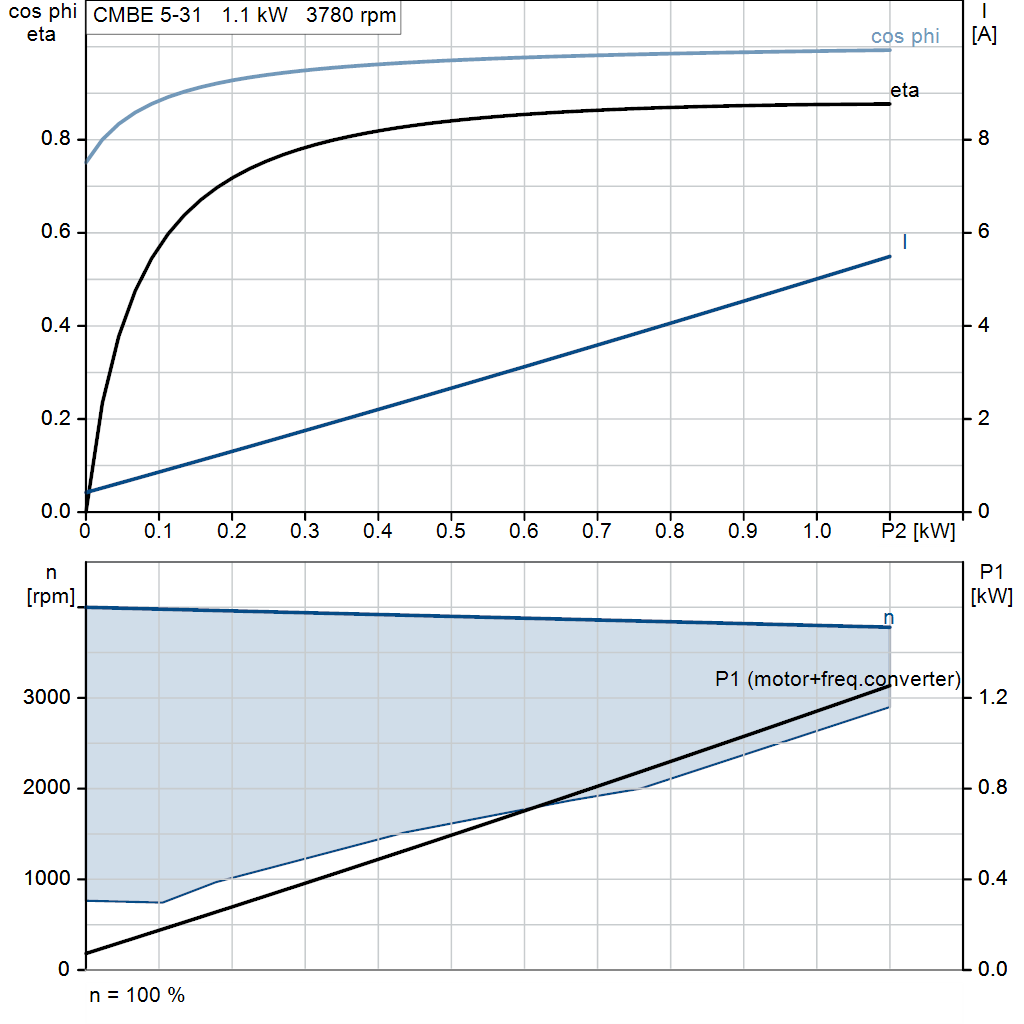

| Rated power - P2: | 1.1 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 200-240 V |
| Maximum current consumption: | 6.70-5.60 A |
| Rated speed: | 360-4000 rpm |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Length of cable: | 1.5 m |
| Power plug: | No plug |
| Tank: | |
| Tank volume: | 2 l |
| Others: | |
| Net weight: | 16.2 kg |
| Gross weight: | 26.3 kg |
Applications
- Domestic rainwater harvesting — Rainwater harvesting is used for collecting surface water, storing, and pumping it into the home for purposes such as flushing toilets, watering gardens, or even washing clothes. Rainwater harvesting pump systems from Grundfos are an efficient way to save significantly on domestic water consumption.
