Grundfos CMB 5-75 I-C-A-A-P-B
Product ID: 98117633
Request Price and Availability
Grundfos CMB 5-75 I-C-A-A-P-B
Grundfos CMB 5-75 I-C-A-A-P-B
| NB: | |
| Suction lift: | maximum 1 m, including inlet pipe pressure loss at a liquid temperature of 20 °C (not self-priming). |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 0 .. 60 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |

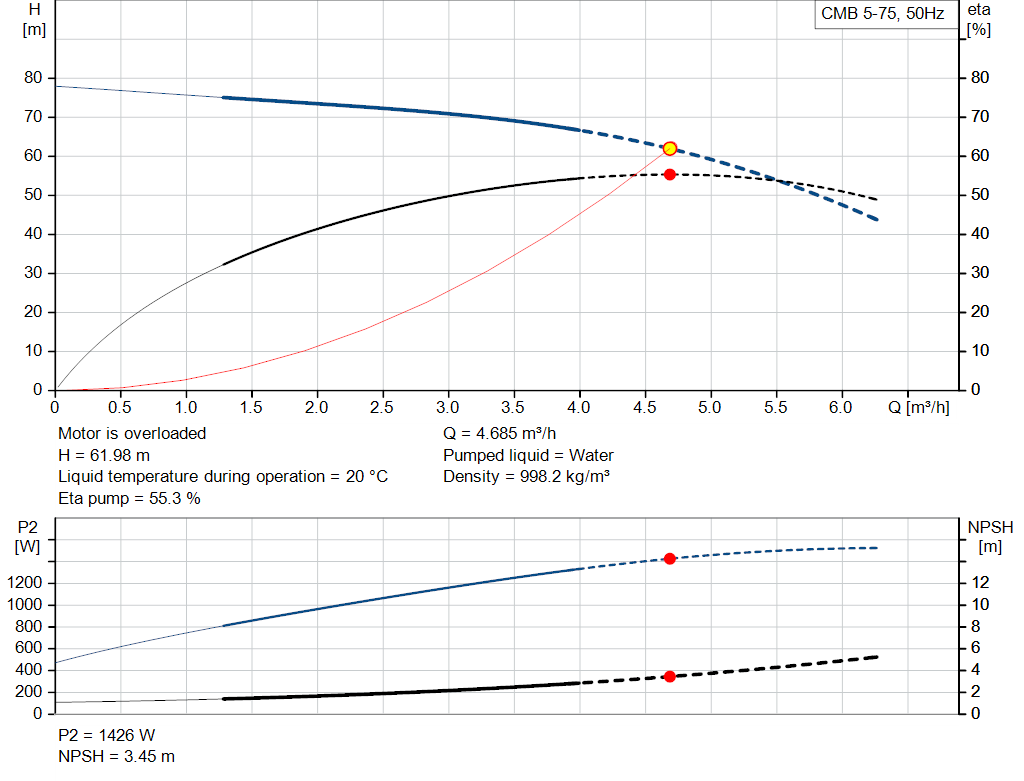

| Rated flow: | 4.7 m³/h |
| Rated head: | 62.4 m |
| Primary shaft seal: | AVBE |
| Code for shaft seal: | AVBE |
| Approvals: | CE |
| Return valve: | YES |
| Start pressure: | 3-12 bar |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum ambient temperature: | 60 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection standard: | WHITWORTH THREAD RP |
| Type of inlet connection: | RP |
| Type of outlet connection: | R |

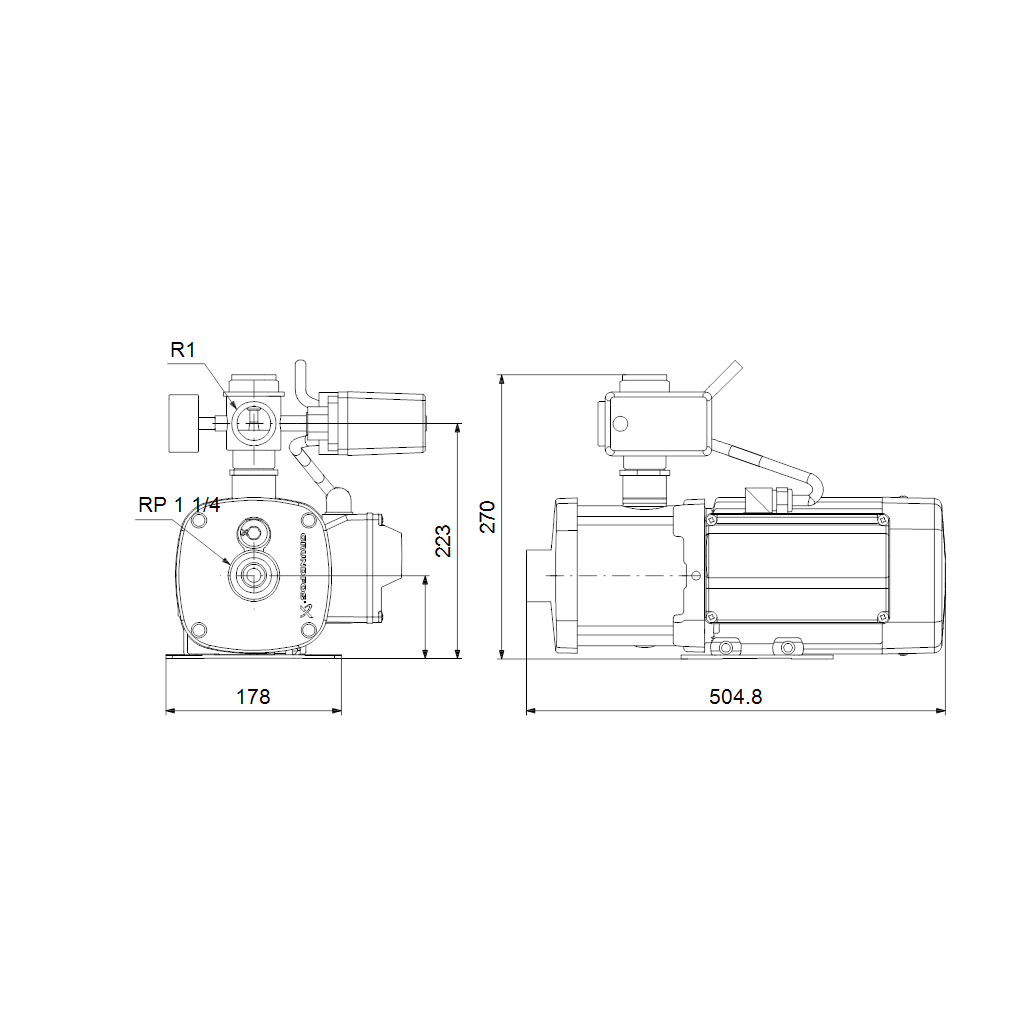

| Size of inlet connection: | 1 1/4 |
| Size of outlet connection: | 1 |

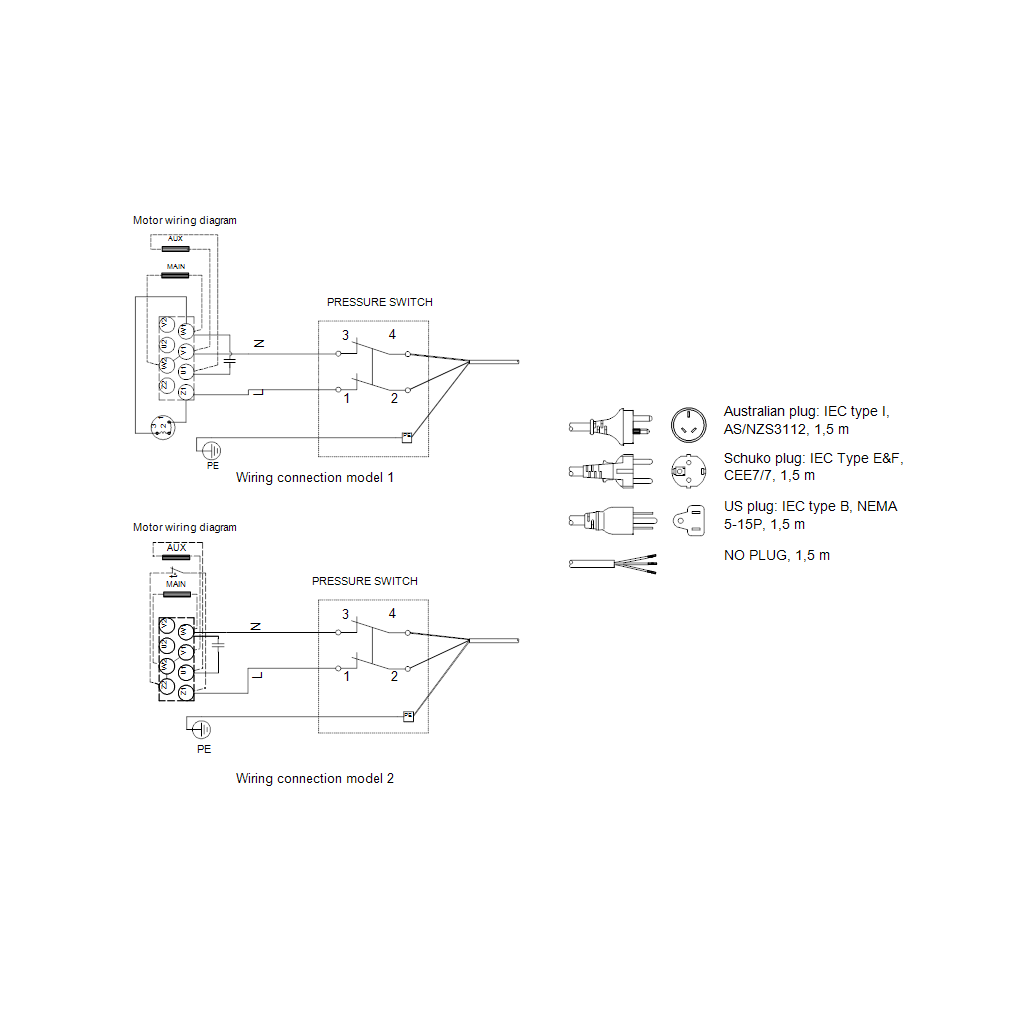

| Electrical data: | |
| Rated power - P2: | 1.3 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 220-240 V |
| Maximum current consumption: | 8.72-8.1 A |
| Rated speed: | 2710-2760 rpm |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | TP 211 |
| Length of cable: | 1.5 m |
| Power plug: | AU |
| Others: | |
| Net weight: | 24.2 kg |
| Gross weight: | 34.3 kg |
Applications
- Commercial water pressure boosting — Ensuring optimal water pressure can be a challenge. However, you can overcome that challenge by means of an efficient and reliable booster system, which communicates with the entire system, and thus reducing life-cycle costs.
- Domestic water pressure boosting — Low or varying water pressure in the home? A water pressure pump solves the very common problems of low-pressure showers and trickling taps that reduce comfort in one- or two-family homes.
