Grundfos CMB 3-27 A-C-A-D-A-A (98661934)
Product ID: 98661934
Request Price and Availability
Grundfos CMB 3-27 A-C-A-D-A-A (98661934)
Grundfos CMB 3-27 A-C-A-D-A-A (98661934)
| NB: | |
| Suction lift: | maximum 1 m, including inlet pipe pressure loss at a liquid temperature of 20 °C (not self-priming). |
| Controls: | |
| Type of connector: | No plug |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 0 .. 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

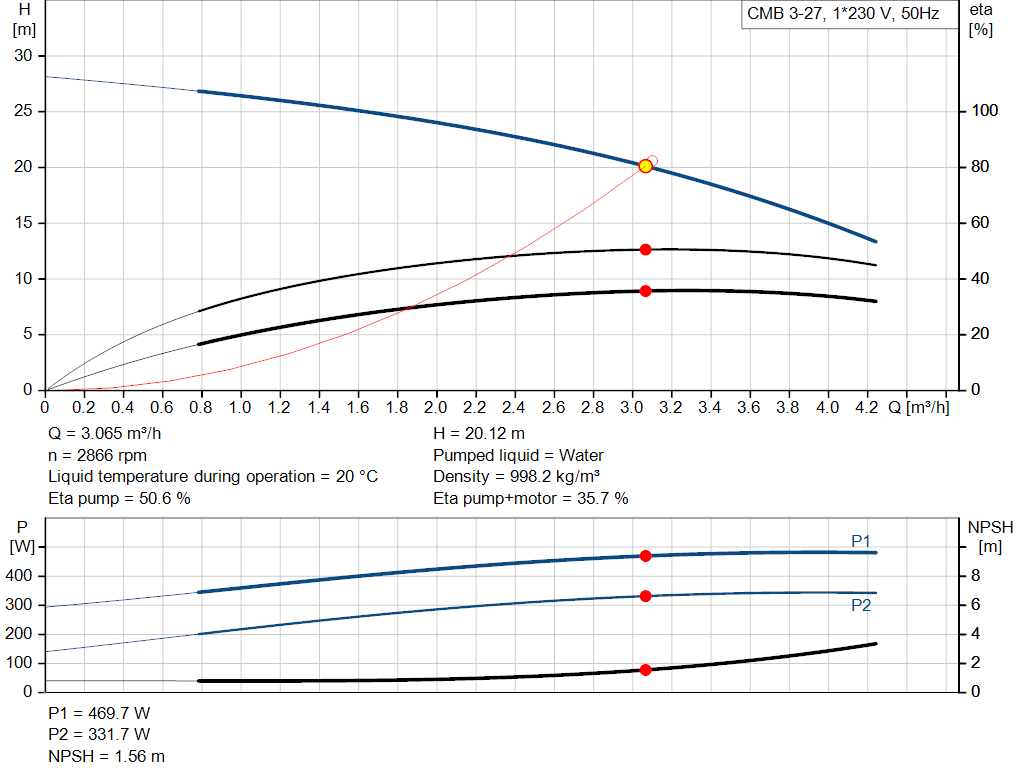

| Rated flow: | 3.1 m³/h |
| Rated head: | 20.6 m |
| Primary shaft seal: | AVBE |
| Code for shaft seal: | AVBE |
| Approvals: | CE,CN ROHS EXE |
| Return valve: | YES |
| Start pressure: | PM1 - 1.5 bar |
| Materials: | |
| Pump housing: | Cast iron |
| EN 1561 EN-GJL-200 | |
| ASTM A48-30B | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum ambient temperature: | 50 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection standard: | ISO 228-1 |
| Type of inlet connection: | Rp |
| Type of outlet connection: | G |
| Size of inlet connection: | 1 |
| Size of outlet connection: | 1 |
| Pressure rating for connection: | PN 10 |
| Electrical data: | |

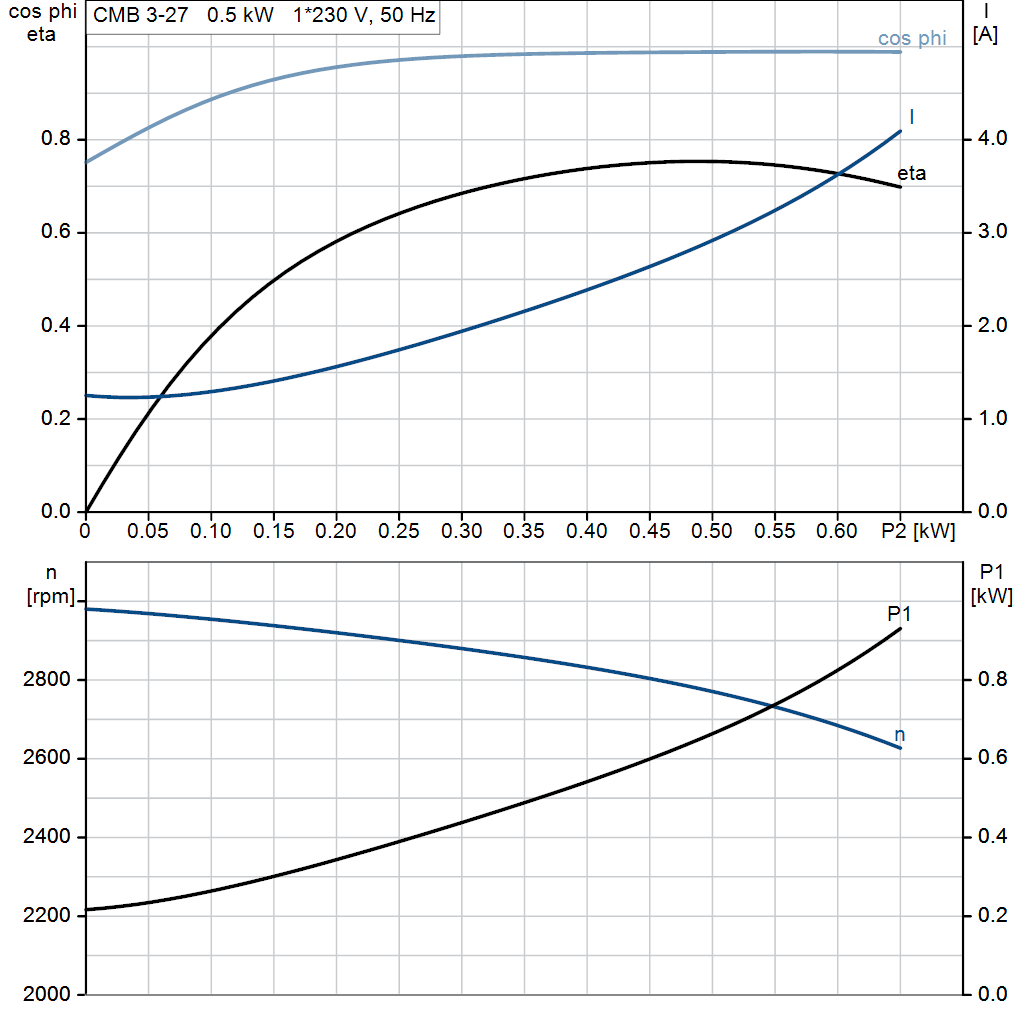

| Rated power - P2: | 0.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 220-230 V |
| Maximum current consumption: | 3.30-3.15 A |
| Rated speed: | 2750-2780 rpm |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | TP 211 |
| Length of cable: | 1.5 m |
| Power plug: | No plug |
| Tank: | |
| Tank volume: | NONE l |
| Others: | |
| Net weight: | 12.1 kg |
| Gross weight: | 15.9 kg |
| Environmental approvals: | WEEE |
Applications
- Commercial water pressure boosting — Ensuring optimal water pressure can be a challenge. However, you can overcome that challenge by means of an efficient and reliable booster system, which communicates with the entire system, and thus reducing life-cycle costs.
- Domestic water pressure boosting — Low or varying water pressure in the home? A water pressure pump solves the very common problems of low-pressure showers and trickling taps that reduce comfort in one- or two-family homes.
category
- Booster setsGrundfos offers booster sets for hospitals, high-rise apartment blocks, irrigation systems and other purposes where there is a need for constant pressure to meet varying demand on the water supply. Check out the broad selection of Grundfos booster sets here.
