Grundfos UPS 32-120 F B 220 (96401844)
Product ID: 96401844
Request Price and Availability
Grundfos UPS 32-120 F B 220 (96401844)
Grundfos UPS 32-120 F B 220 (96401844)
UPS 32-120 F B
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid.
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid.
In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible.
The pump is characterized by:
|
The motor is a 1-phase motor.

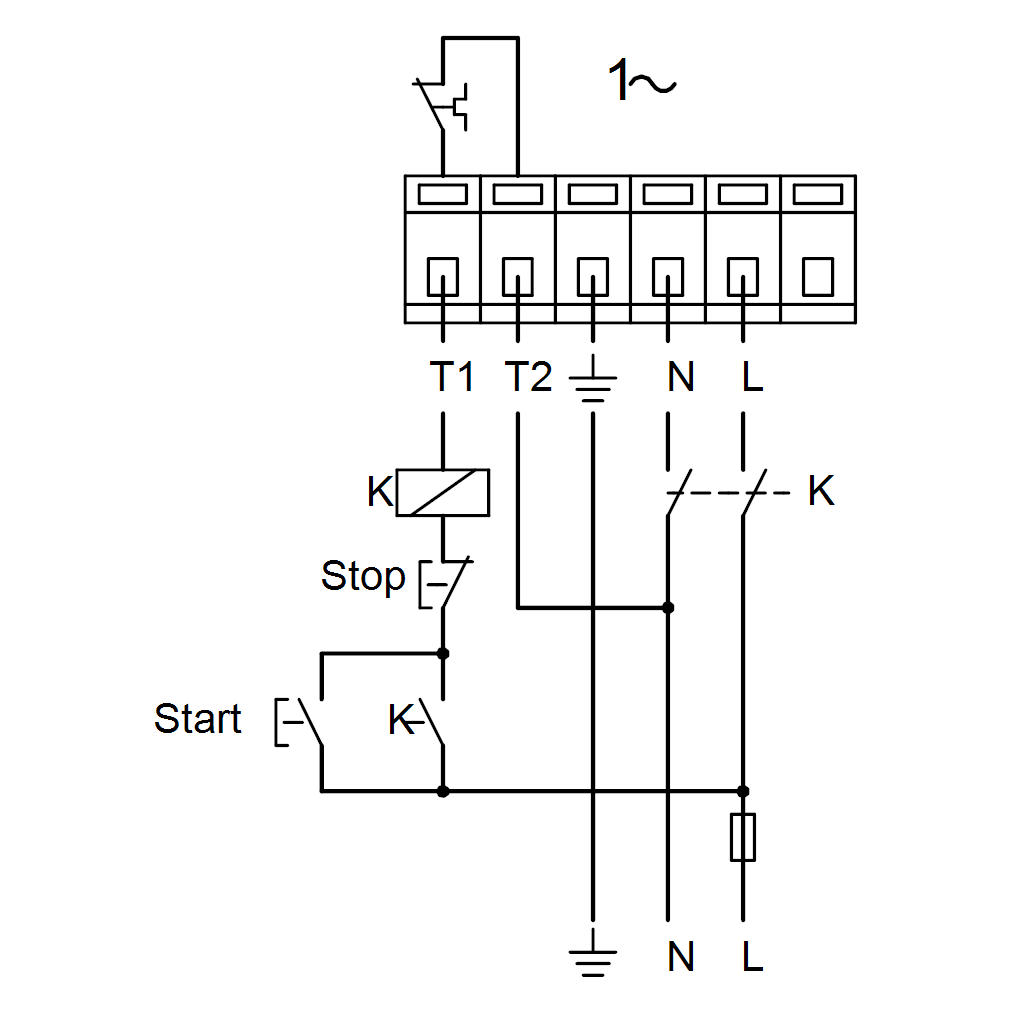

The pump is supplied with a standard module in the terminal box. The standard module is to be connected to the mains supply via external contactor.
| Controls: | |
| Relay: | without relay |
| Terminal box position: | 1.30H |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -10 .. 120 °C |
| Selected liquid temperature: | 60 °C |
| Density: | 983.2 kg/m³ |
| Technical: | |

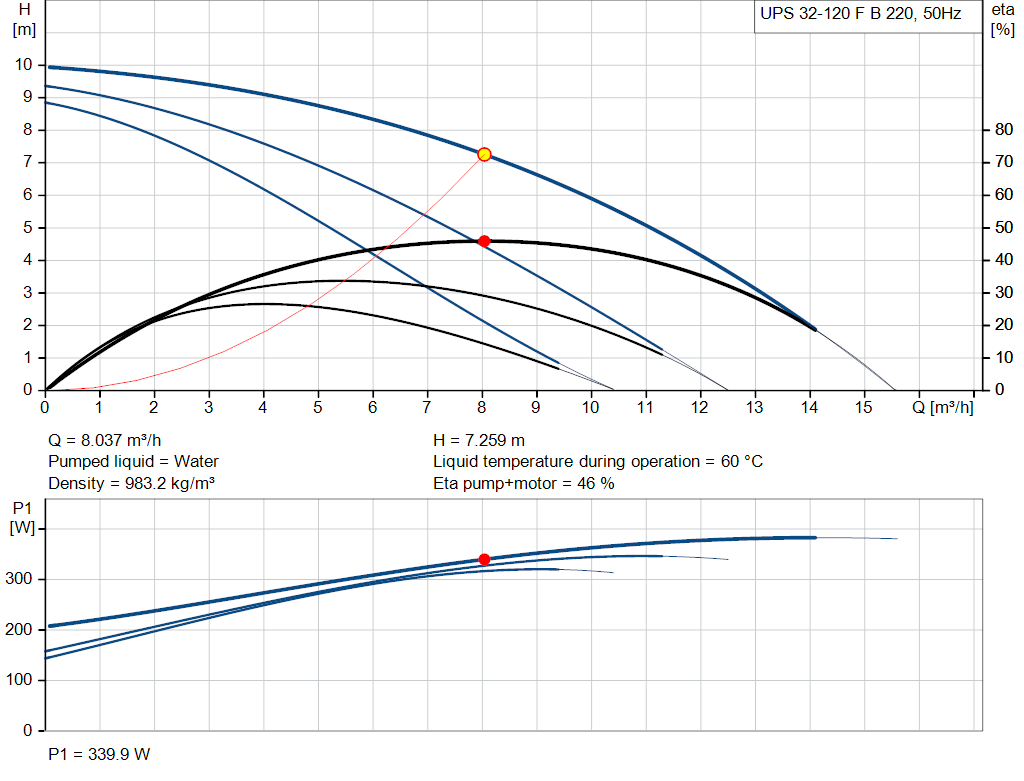

| Rated flow: | 8.04 m³/h |
| Rated head: | 7.26 m |
| Approvals: | CE,EAC,AAA,WEEE |
| Materials: | |
| Pump housing: | Bronze |
| 2.1176.01 | |
| B-271 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Range of ambient temperature: | 0 .. 80 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection standard: | EN 1092-3 |
| Type of connection: | DIN |
| Size of connection: | DN 32 |
| Pressure rating for connection: | PN 6/10 |

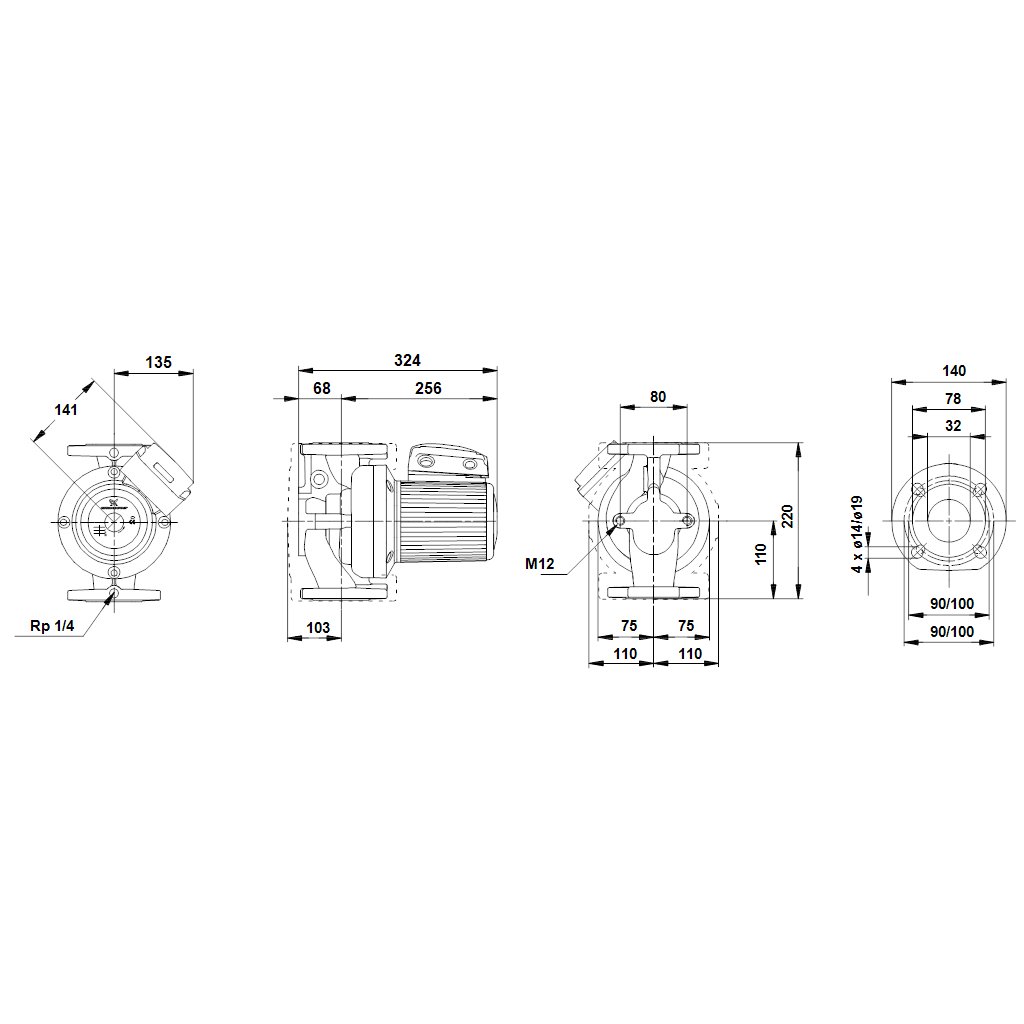

| Port-to-port length: | 220 mm |
| Electrical data: | |
| Power input in speed 1: | 320 W |
| Power input in speed 2: | 340 W |
| Max. power input: | 380 W |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 230-240 V |
| Current in speed 1: | 1.55 A |
| Current in speed 2: | 1.65 A |
| Current in speed 3: | 1.75 A |
| Cos phi in speed 1: | 0.9 |
| Cos phi in speed 2: | 0.9 |
| Cos phi: | 0.94 |
| Capacitor size - run: | 10 µF/400 V |
| Insulation class (IEC 85): | H |
| Enclosure class (IEC 60529): | X4D |
| Ex-protection standard: | CONTACT |
| Others: | |
| Terminal box position: | 1.30H |
| Net weight: | 19.3 kg |
| Gross weight: | 19 kg |
| Shipping volume: | 0.026 m³ |
