Grundfos UPS 25-40 N 180
Product ID: 96913060
Request Price and Availability
Grundfos UPS 25-40 N 180
Grundfos UPS 25-40 N 180
| Controls: | |
| Terminal box position: | 9H |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 2 .. 110 °C |
| Selected liquid temperature: | 60 °C |
| Density: | 983.2 kg/m³ |
| Technical: | |

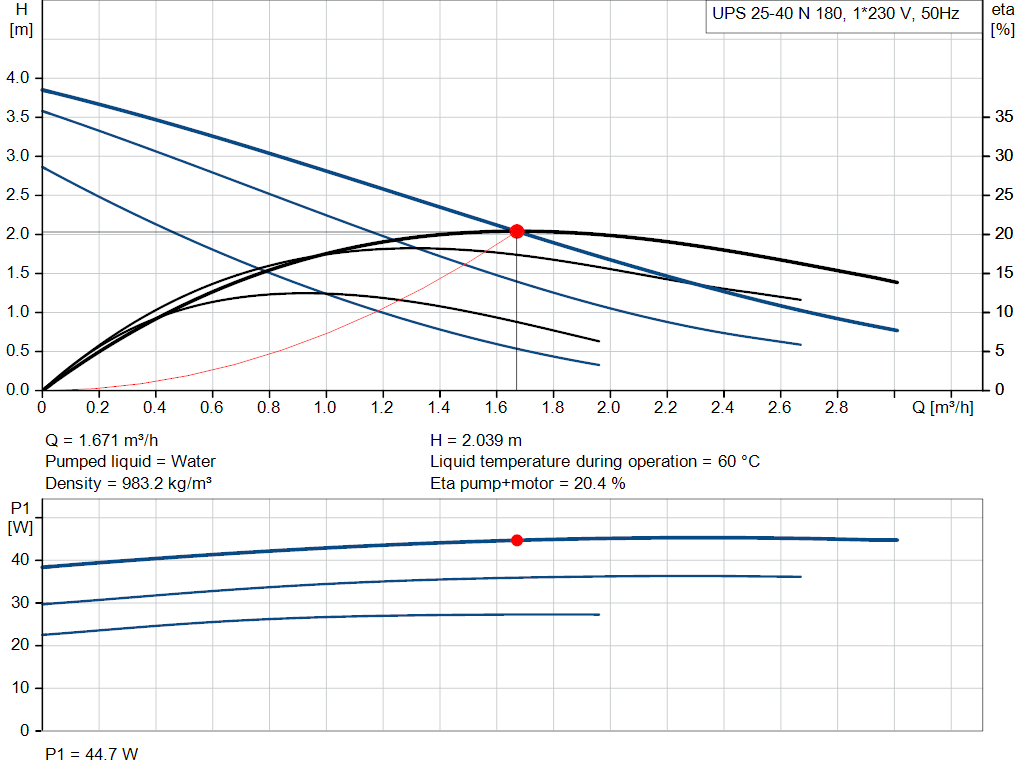

| Rated flow: | 1.67 m³/h |
| Rated head: | 2.03 m |
| TF class: | 110 |
| Approvals: | CE,VDE,EAC,WEEE |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4308 | |
| Impeller: | Composite |
| PES+30% GF | |
| Installation: | |
| Range of ambient temperature: | 0 .. 40 °C |
| Amb. max at 80 dgr C liquid: | 40 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection standard: | ISO 228-1 |
| Type of connection: | G |
| Size of connection: | 1 1/2 inch |
| Pressure rating for connection: | PN 10 |

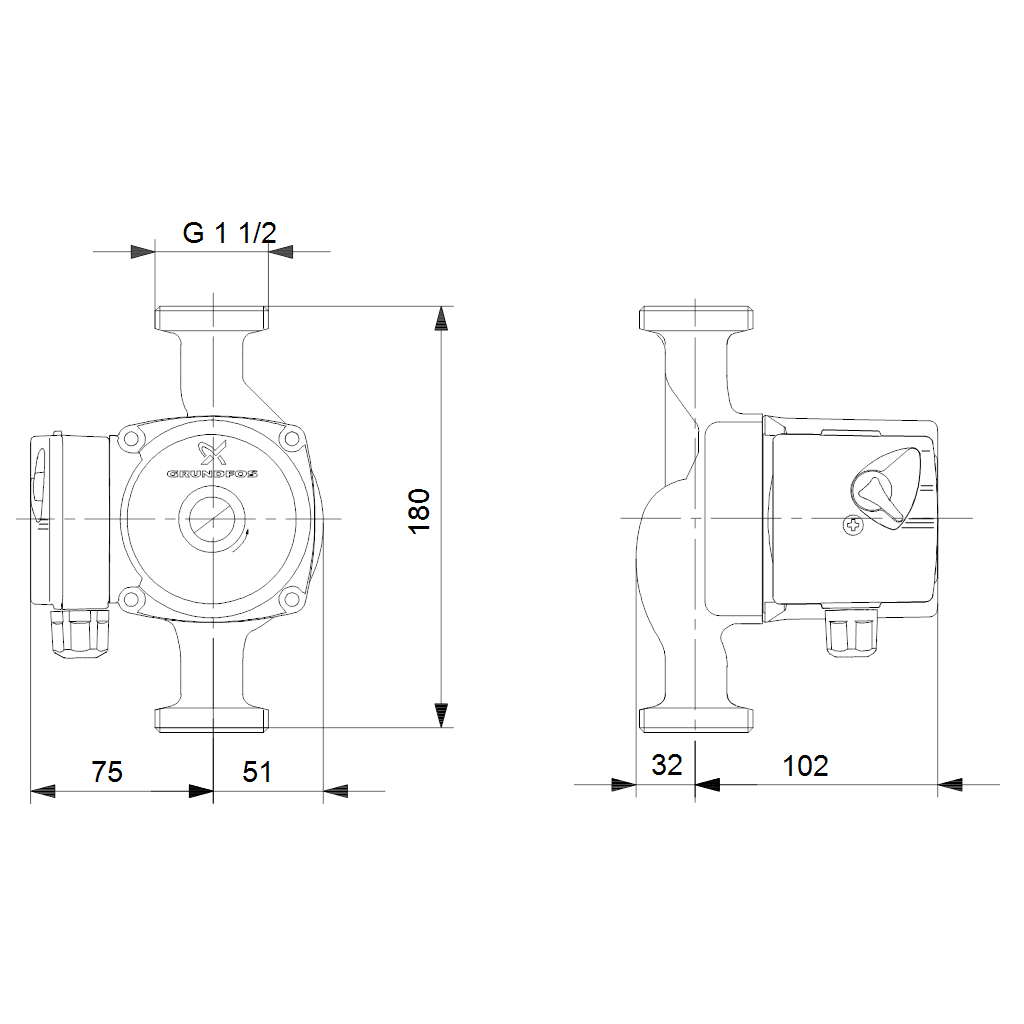

| Port-to-port length: | 180 mm |
| Electrical data: | |
| Power input in speed 1: | 25 W |
| Power input in speed 2: | 35 W |
| Max. power input: | 45 W |
| Mains frequency: | 50 Hz |

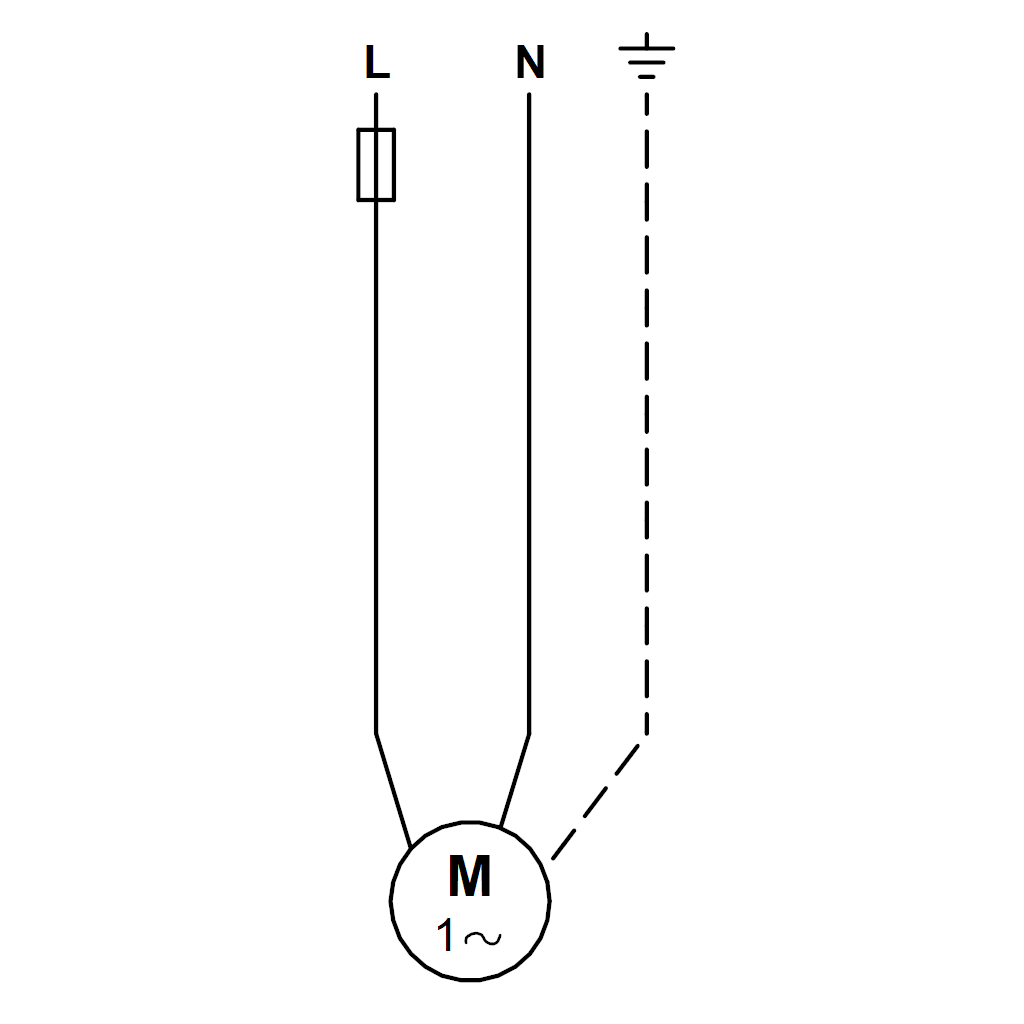

| Rated voltage: | 1 x 230 V |
| Current in speed 1: | 0.12 A |
| Current in speed 2: | 0.16 A |
| Current in speed 3: | 0.2 A |
| Capacitor size - run: | 1.5 µF |
| Enclosure class (IEC 34-5): | IP44 |
| Insulation class (IEC 85): | F |
| Ex-protection standard: | NONE |
| Others: | |
| Terminal box position: | 9H |
| Net weight: | 2.67 kg |
| Gross weight: | 2.8 kg |
| Shipping volume: | 0.004 m³ |
| Danish VVS No.: | 380481041 |
| Swedish RSK No.: | 5803098 |
