Grundfos UPS 32-100 N 180
Product ID: 95906489
Request Price and Availability
Grundfos UPS 32-100 N 180
Grundfos UPS 32-100 N 180
| Controls: | |
| Terminal box position: | 9H |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 110 °C |
| Selected liquid temperature: | 60 °C |
| Density: | 983.2 kg/m³ |
| Technical: | |

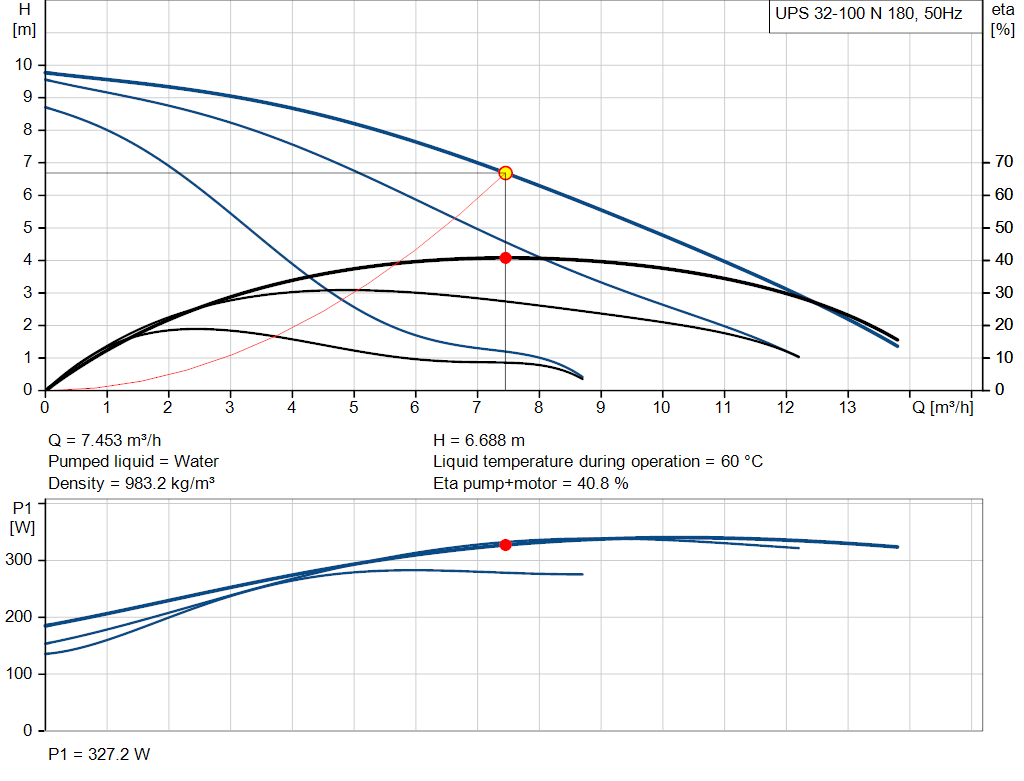

| Rated flow: | 7.45 m³/h |
| Rated head: | 6.69 m |
| TF class: | 95 |
| Approvals: | CE,EAC,WEEE,RCM |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4308 | |
| AISI 304 | |
| Impeller: | Composite |
| PES+30% GF | |
| Installation: | |
| Range of ambient temperature: | 0 .. 40 °C |
| Amb. max at 80 dgr C liquid: | 40 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection standard: | ISO 228-1 |
| Type of connection: | G |
| Size of connection: | 2 inch |
| Pressure rating for connection: | PN 10 |

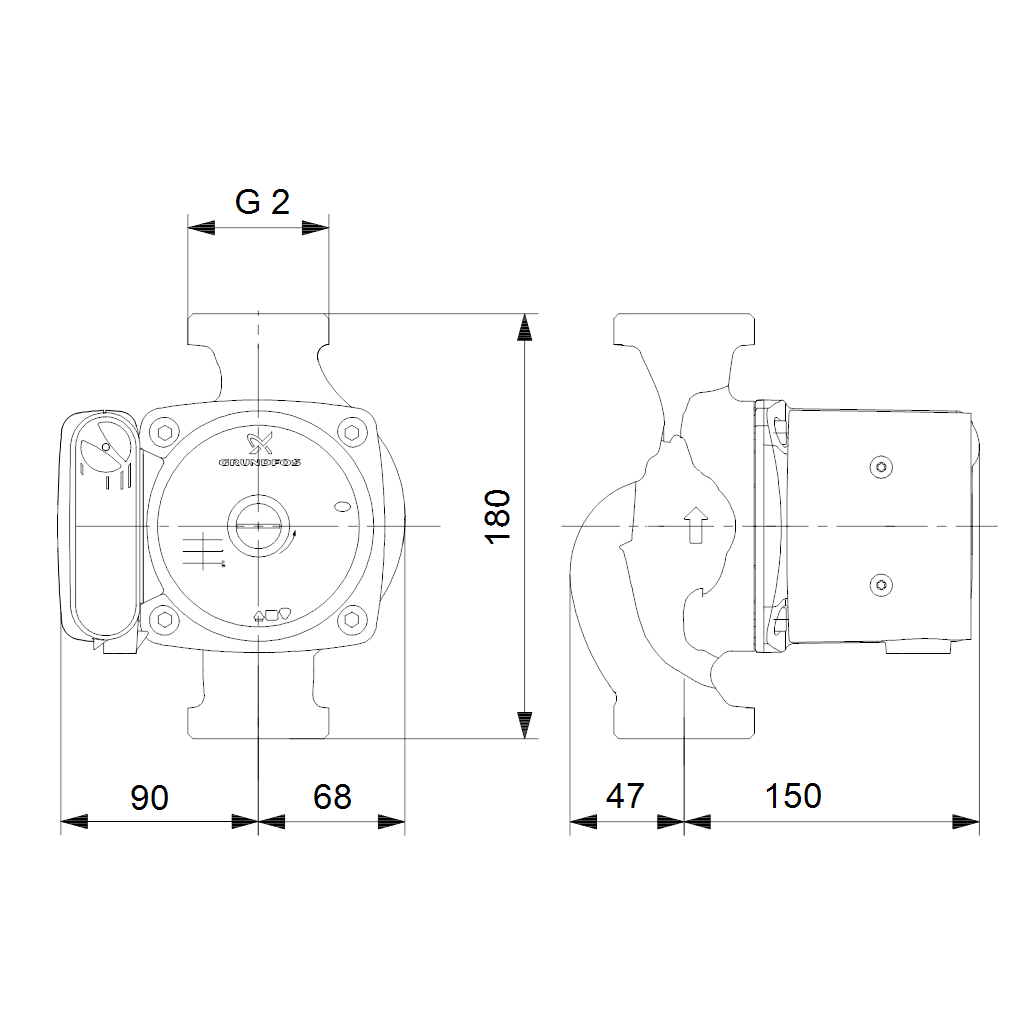

| Port-to-port length: | 180 mm |
| Electrical data: | |
| Power input in speed 1: | 280 W |
| Power input in speed 2: | 340 W |
| Max. power input: | 345 W |
| Mains frequency: | 50 Hz |

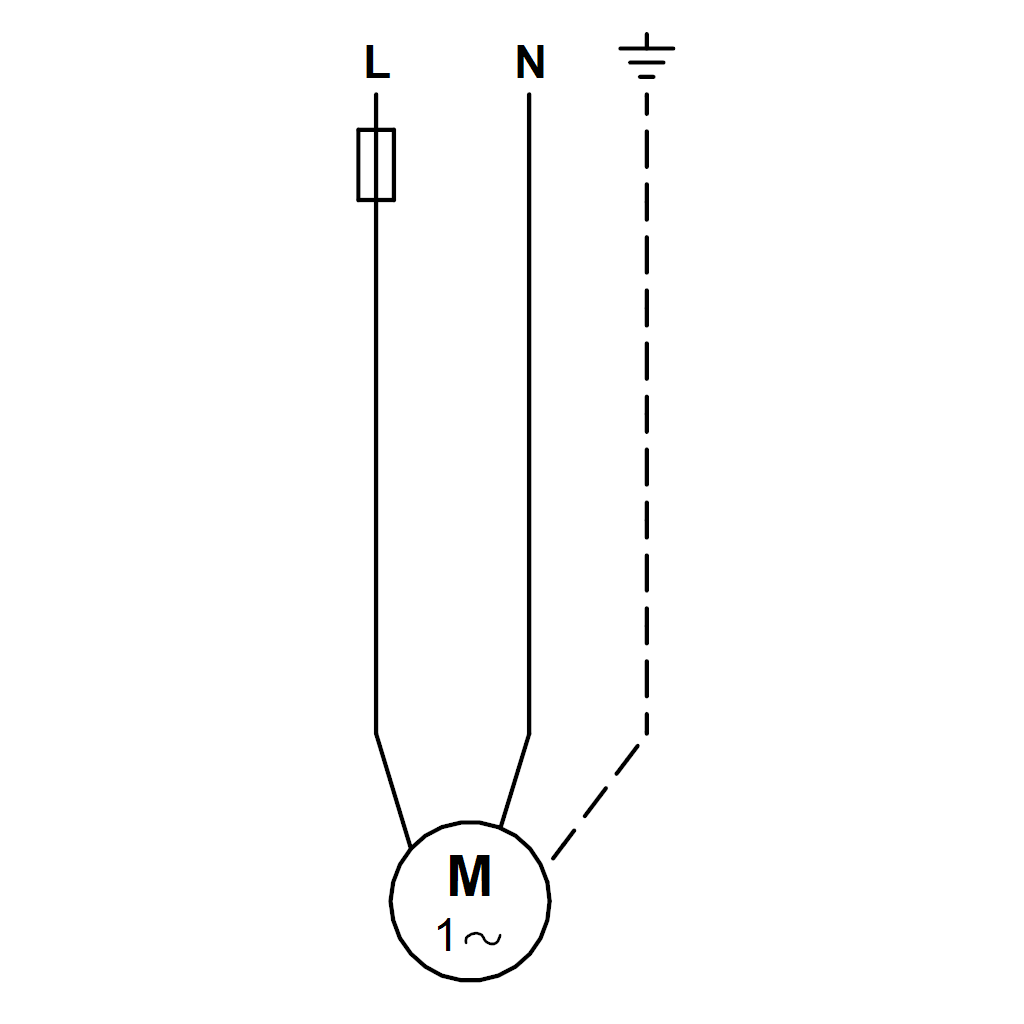

| Rated voltage: | 1 x 230 V |
| Current in speed 1: | 1.3 A |
| Current in speed 2: | 1.5 A |
| Current in speed 3: | 1.52 A |
| Capacitor size - run: | 8 µF |
| Enclosure class (IEC 34-5): | X4D |
| Insulation class (IEC 85): | H |
| Ex-protection standard: | CONTACT |
| Others: | |
| Terminal box position: | 9H |
| Net weight: | 6.65 kg |
| Gross weight: | 7.75 kg |
| Shipping volume: | 0.017 m³ |
| Finnish LVI No.: | 4615615 |
Applications
- Commercial heating — In a commercial heating system, energy-efficient pumps are only half the story. But with the right system design, you can truly reap the benefits and significantly reduce the energy bill.
- Domestic hot water recirculation — With a hot water circulator pump, you can provide hot water to your customers in an instant, eliminating water waste and reducing the annoying wait for hot water.
