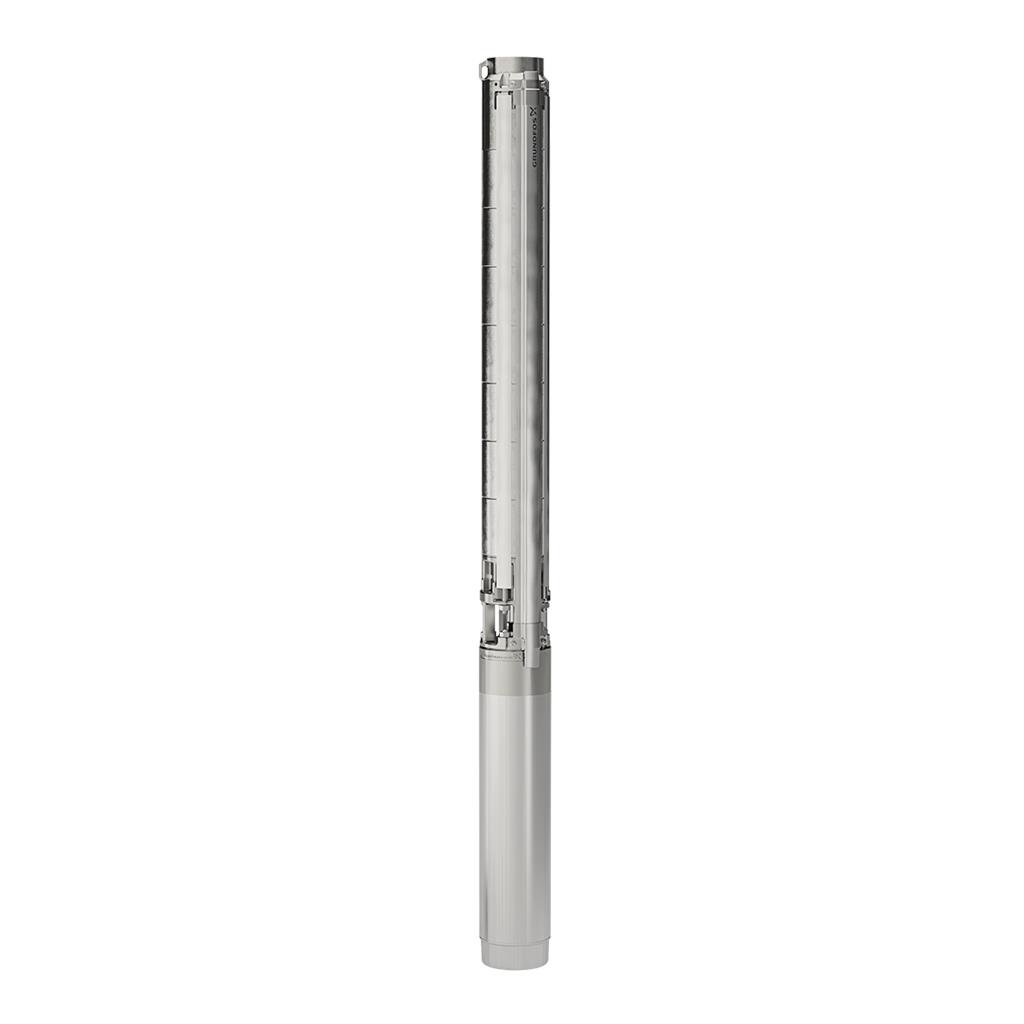

Grundfos SP 11-5
Product ID: 98699313
Request Price and Availability
Grundfos SP 11-5
Grundfos SP 11-5
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 40 °C |
| Max liquid t at 0.15 m/sec: | 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

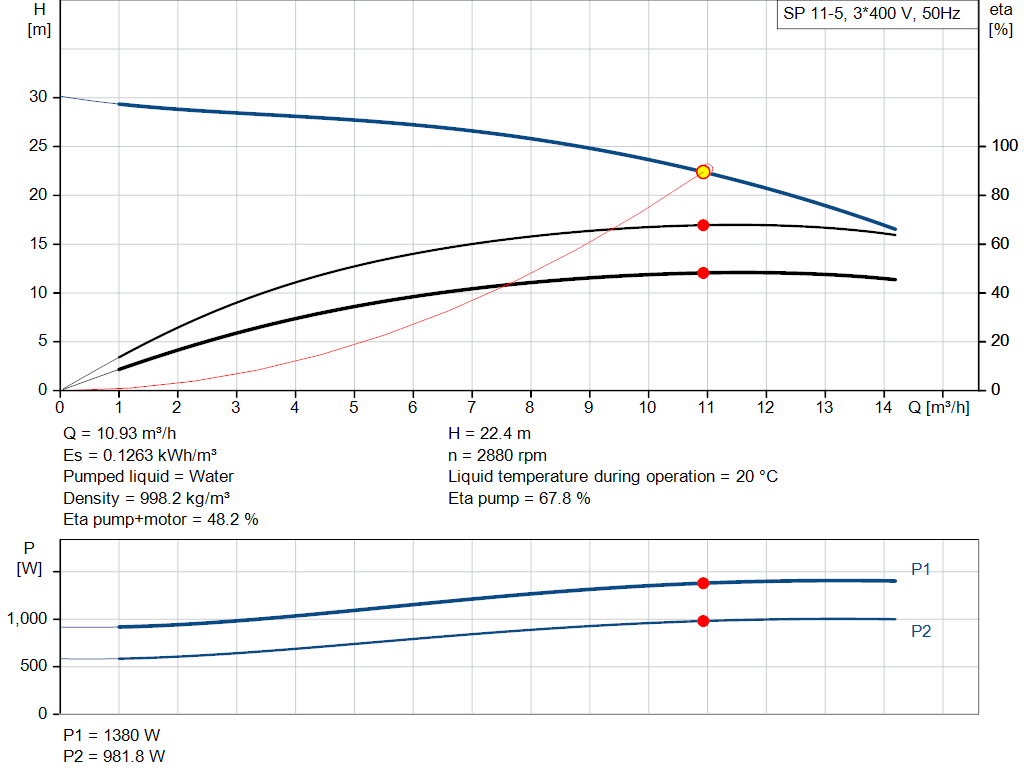

| Pump speed on which pump data are based: | 2900 rpm |
| Rated flow: | 11 m³/h |
| Rated head: | 22.7 m |
| Shaft seal for motor: | LIPSEAL |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Approvals for drinking water: | ACS,DM174 |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T40 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Motor: | Stainless steel |
| DIN W.-Nr. 1.4301 | |
| AISI 304 | |

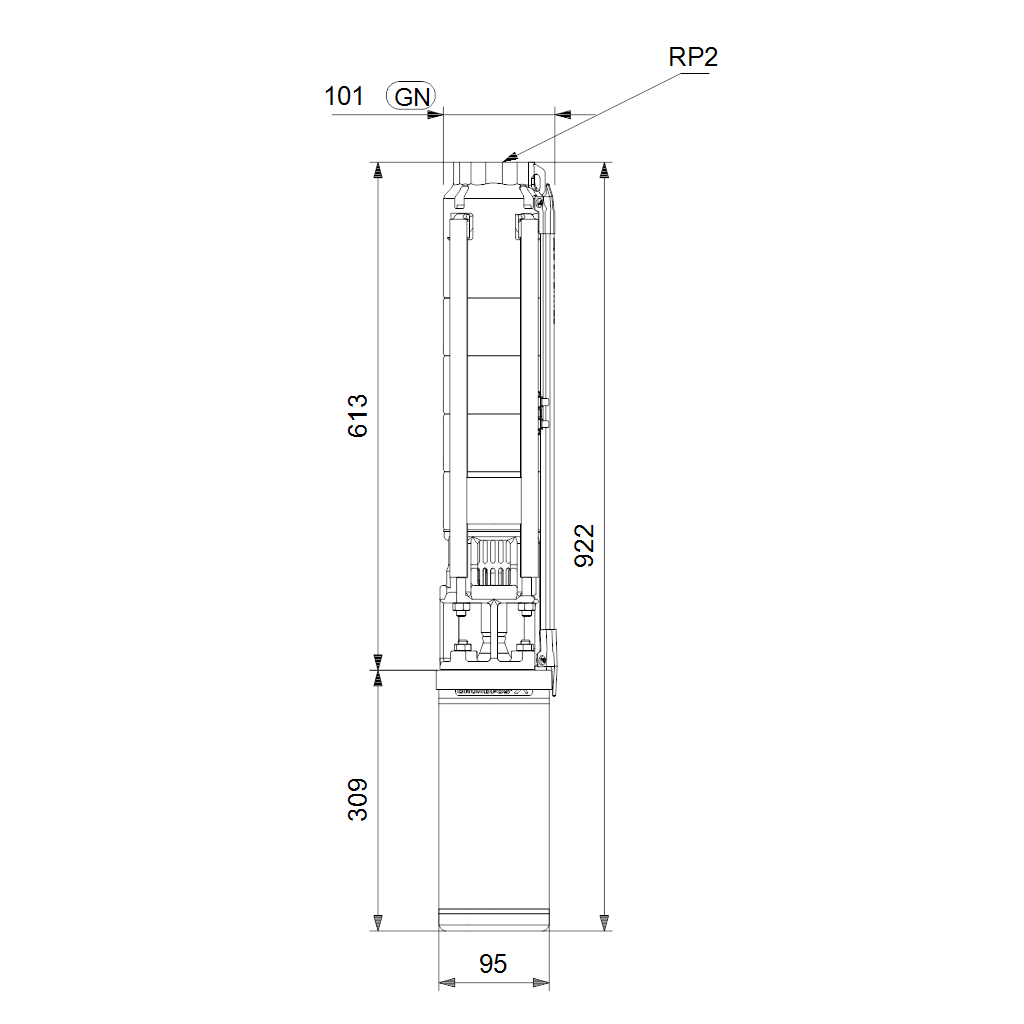

| Installation: | |
| Maximum ambient pressure: | 15 bar |
| Maximum operating pressure: | 15 bar |
| Maximum outlet pressure: | 3.1 bar |
| Type of connection: | Rp |
| Size of connection: | 2 inch |
| Motor diameter: | 4 inch |
| Minimum borehole diameter: | 105 mm |

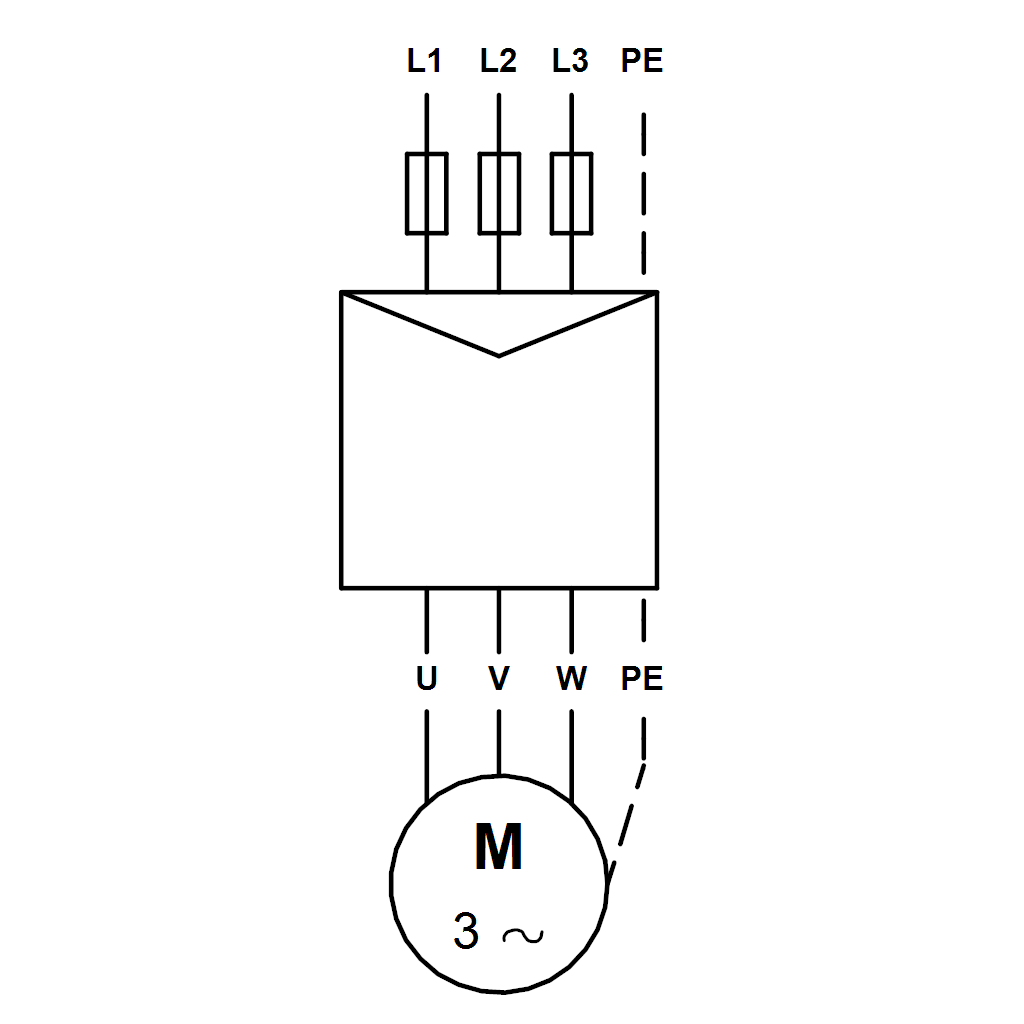

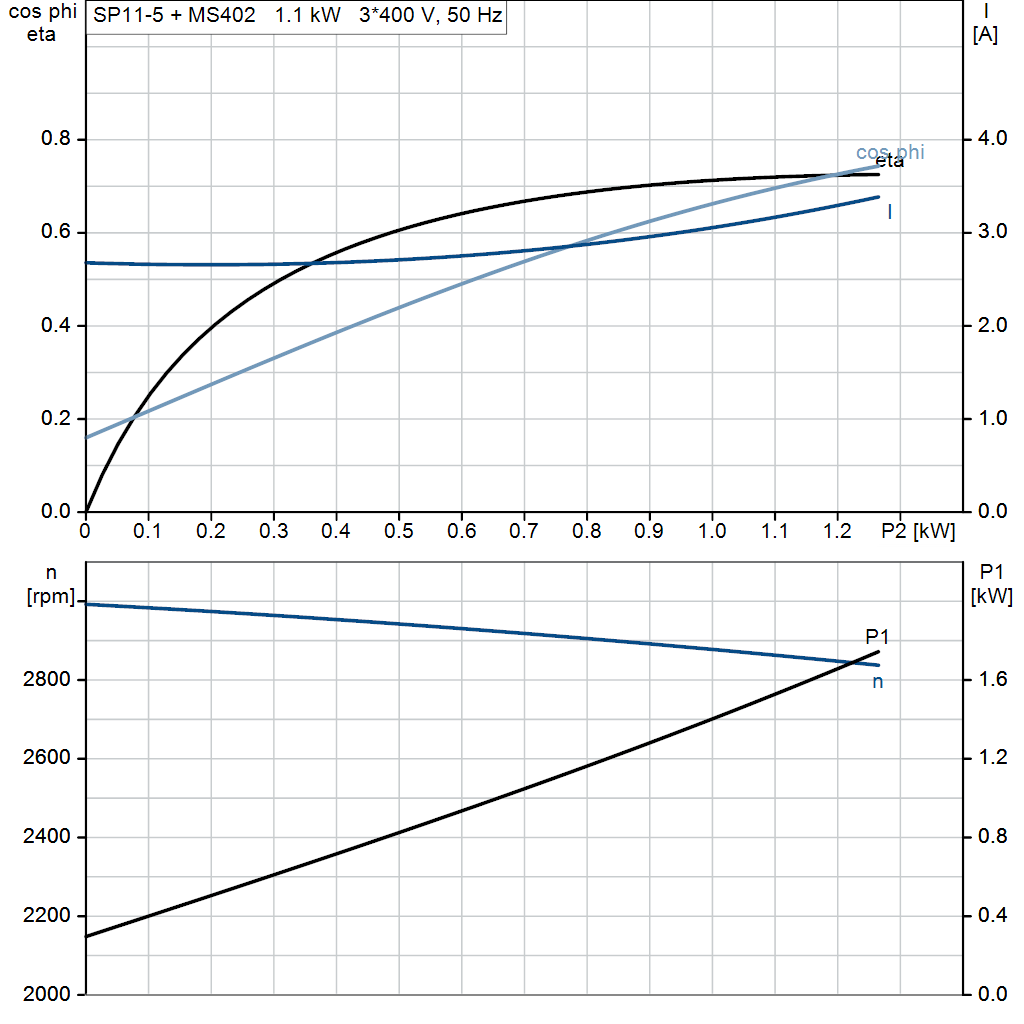

| Electrical data: | |
| Motor type: | MS402 |
| Motor flange design: | NEMA |
| Rated power - P2: | 1.1 kW |
| Power (P2) required by pump: | 1.1 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Rated current: | 3.25-3.40-3.65 A |
| Starting current: | 480-480-470 % |
| Cos phi - power factor: | 0.76-0.72-0.65 |
| Rated speed: | 2850-2860-2870 rpm |
| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | B |
| Built-in temp. transmitter: | no |
| Length of cable: | 1.7 m |
| Power cable type: | FLAT |
| Motor No: | 79192005 |
| Windings: | Enamelled |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.60 |
| Net weight: | 17.3 kg |
| Gross weight: | 18.7 kg |
| Shipping volume: | 0.016 m³ |
| Danish VVS No.: | 388481005 |
| Finnish LVI No.: | 4762700 |
| Country of origin: | DK |
| Custom tariff no.: | 84137029 |
| Environmental approvals: | WEEE |
Spare Parts
| Part Number | Product Name |
|---|---|
| 98766927 | Kit, Wear parts 1 Stg |
| 98766933 | Kit, Wear parts 5 Stg |
| 98766939 | Kit, Wear parts 10 Stg |
| 98766947 | Kit, Wear parts 50 Stg |
Applications
- Community water supply — Reliable, sustainable and low-risk community water systems from source to tap, including water management and revenue collection systems, for low-income remote or informal urban settlement areas in developing countries.
- Domestic ground water intake — Groundwater is essential for water supply. Providing a reliable, fresh supply of water for all homeowners is equally essential, particularly for those whose water source is a private groundwater well.
- Domestic water pressure boosting — Low or varying water pressure in the home? A water pressure pump solves the very common problems of low-pressure showers and trickling taps that reduce comfort in one- or two-family homes.
- Ground water intake — You require a cost-effective, reliable and energy-optimised submersible pumping solution for borehole installations. Our pumps and pump systems are optimised for the highest performance and reliability for groundwater installations.
- Irrigation — Our high-efficiency pumping solutions work seamlessly with modern irrigation systems for agricultural and non-agricultural applications and can operate with on- and off-grid energy sources.
category
- Submersible groundwater pumpsGrundfos submersible pumps represent advanced hydraulic design and offer high efficiency, high resistance to sand and other abrasives, motor burnout protection and easy maintenance. Made entirely of corrosion-resistant stainless steel, Grundfos submersible pumps are ideal for applications including groundwater supply, irrigation, groundwater lowering and pressure boosting.
