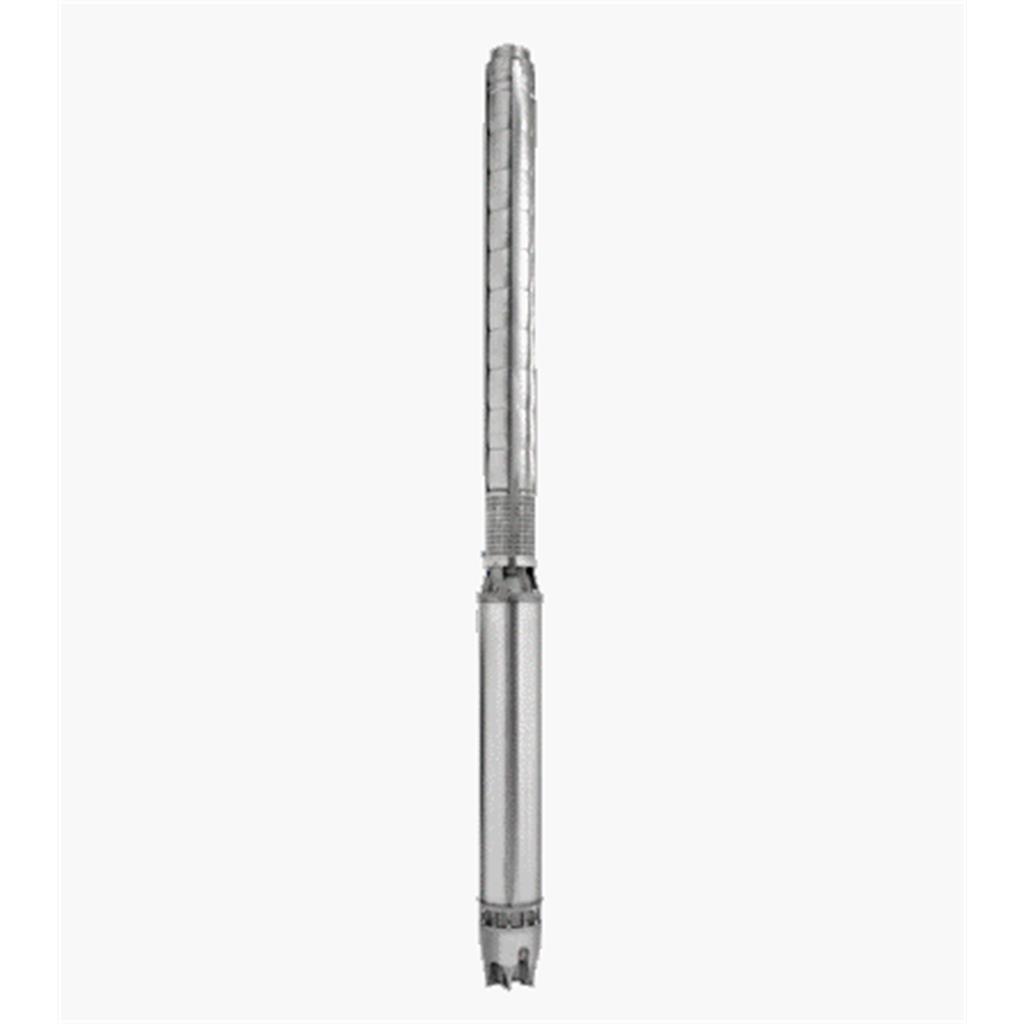

Grundfos SP 215-5

Product ID: 18A01905

Request Price and Availability

Grundfos SP 215-5
Part Number: 18A01905

Grundfos SP 215-5

Liquid:
Pumped liquid:Water
Maximum liquid temperature:40 °C
Max liquid t at 0.15 m/sec:30 °C
Selected liquid temperature:20 °C
Density:998.2 kg/m³
Technical:
Pump speed on which pump data are based:2900 rpm
Rated flow:215 m³/h
Rated head:123 m
Curve tolerance:ISO9906:2012 3B
Return valve:YES
Materials:
Pump:Stainless steel
 EN 1.4301
 AISI 304
Impeller:Stainless steel
 EN 1.4301
 AISI 304
Motor:Stainless steel
 DIN W.-Nr. 1.4301
 AISI 304
Installation:
Maximum ambient pressure:35 bar
Type of connection:Rp
Size of connection:6 inch
Motor diameter:8 inch
Electrical data:
Motor type:FRANKLIN
Motor flange design:Grundfos
Rated power - P2:93 kW
Power (P2) required by pump:93 kW
Mains frequency:50 Hz
Rated voltage:3 x 380-400-415 V
Rated current:194-190-191 A
Cos phi - power factor:0.86-0.83-0.80
Rated speed:2920-2930-2935 rpm
Start. method:direct-on-line
Enclosure class (IEC 34-5):IP58
Insulation class (IEC 85):F
Built-in temp. transmitter:yes
Motor No:82193226
Others:
Net weight:374 kg
Gross weight:440 kg
Danish VVS No.:388351350

Applications

  • Community water supply — Reliable, sustainable and low-risk community water systems from source to tap, including water management and revenue collection systems, for low-income remote or informal urban settlement areas in developing countries.
  • Domestic ground water intake — Groundwater is essential for water supply. Providing a reliable, fresh supply of water for all homeowners is equally essential, particularly for those whose water source is a private groundwater well.
  • Domestic water pressure boosting — Low or varying water pressure in the home? A water pressure pump solves the very common problems of low-pressure showers and trickling taps that reduce comfort in one- or two-family homes.
  • Ground water intake — You require a cost-effective, reliable and energy-optimised submersible pumping solution for borehole installations. Our pumps and pump systems are optimised for the highest performance and reliability for groundwater installations.
  • Irrigation — Our high-efficiency pumping solutions work seamlessly with modern irrigation systems for agricultural and non-agricultural applications and can operate with on- and off-grid energy sources.

category

  • Submersible groundwater pumps
    Grundfos submersible pumps represent advanced hydraulic design and offer high efficiency, high resistance to sand and other abrasives, motor burnout protection and easy maintenance. Made entirely of corrosion-resistant stainless steel, Grundfos submersible pumps are ideal for applications including groundwater supply, irrigation, groundwater lowering and pressure boosting.
