Grundfos DWK.O.13.80.55.5.0D
Product ID: 96922653
Request Price and Availability
Grundfos DWK.O.13.80.55.5.0D
Grundfos DWK.O.13.80.55.5.0D

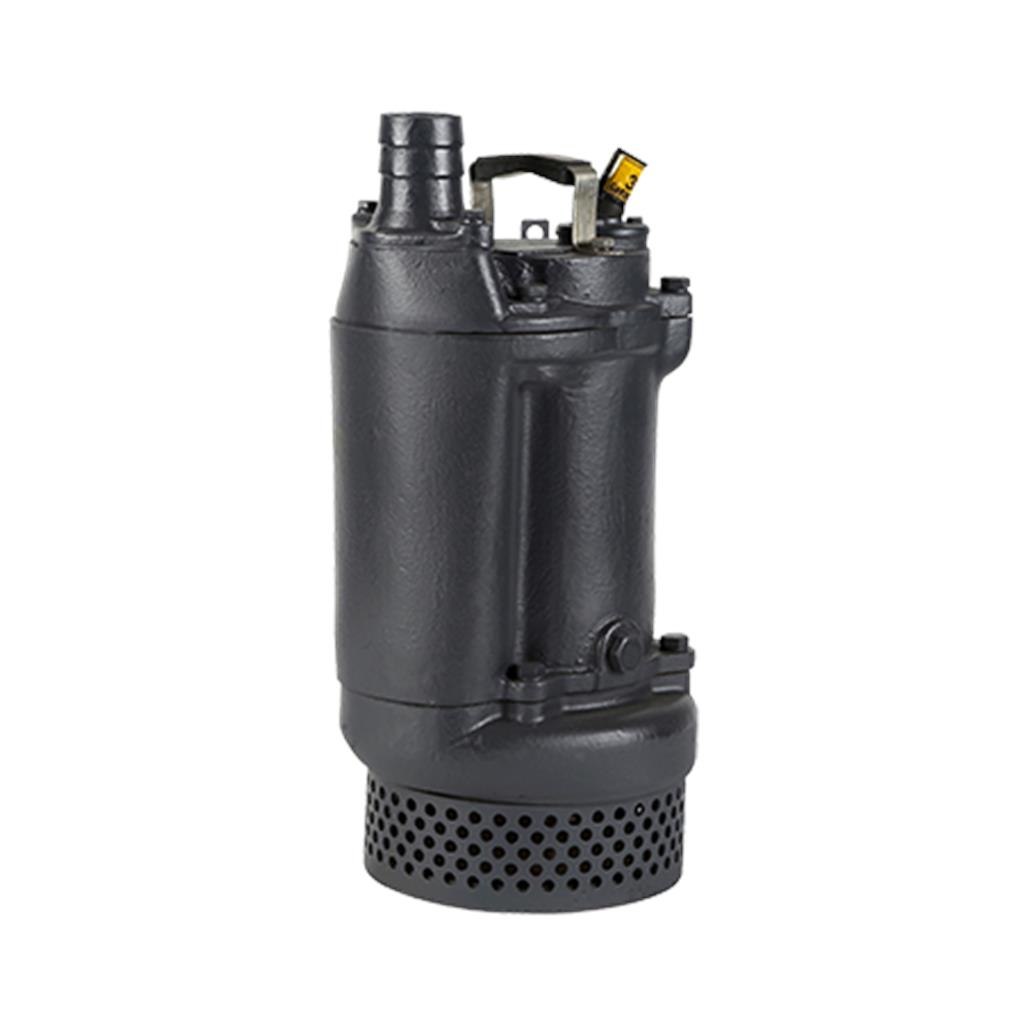

Submersible Contractor Pump
Grundfos DWK pump is a submersible pump for dewatering and drainage applications.
The pump is suitable for pumping
|
The compact design makes the pump suitable for both temporary and permanent installation.
The pump is cast iron, with vertical discharge port and integrated submersible 3-phase totally enclosed motor in insulation class F (155°C).
The pump has a rise pipe, a double mechanical seal and semi-open impeller type

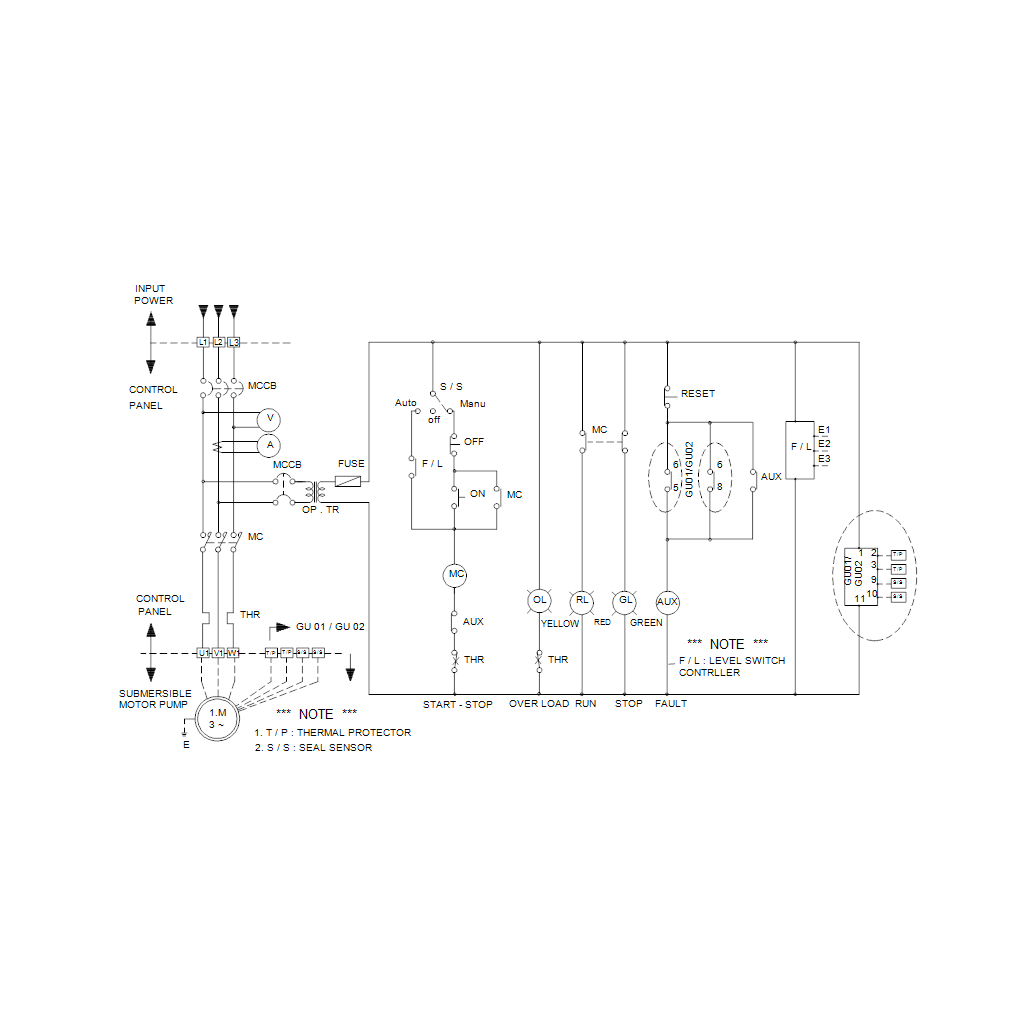

The pump is equipped with a temperature Bi-metal sensor for motor protection in case of overheating and electrode seal sensor to detect water penetration in to the motor housing.
The pump is fitted with suction strainer, lifting handle and 10 m cable.
| Controls: | |
| Water-in-oil sensor: | without water-in-oil sensor |
| Seal sensor: | Y |
| Liquid: | |
| Liquid temperature range: | 0 .. 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

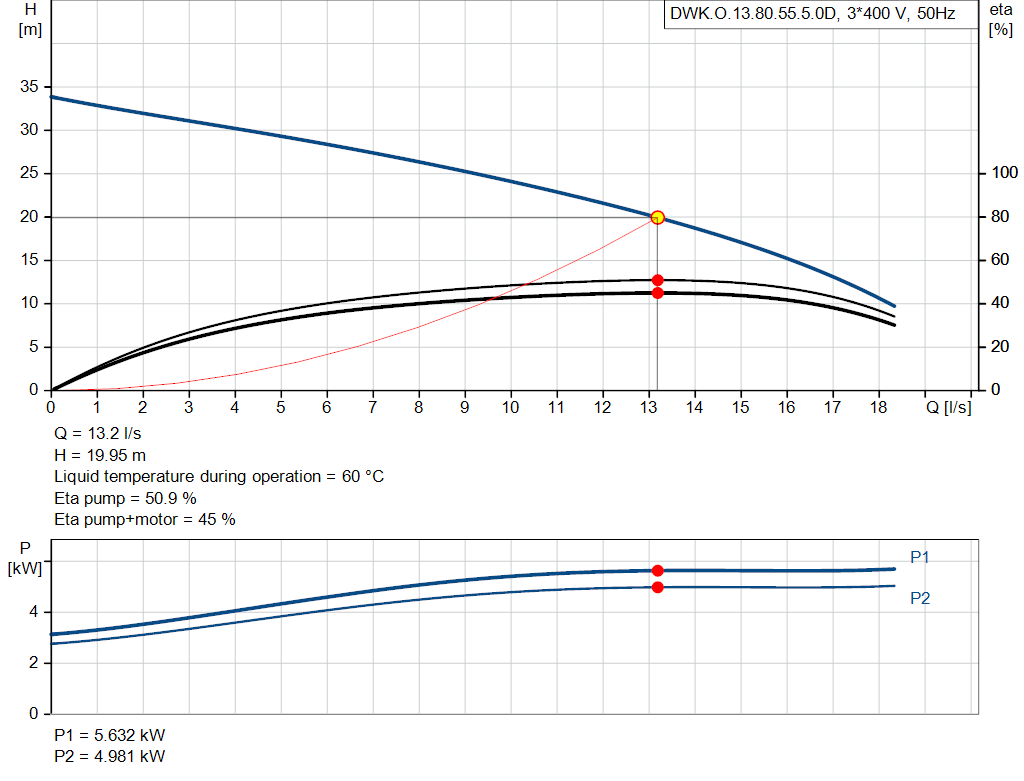

| Rated flow: | 13.2 l/s |
| Maximum flow: | 18.3 l/s |
| Rated head: | 19.92 m |
| Actual impeller diameter: | 174 mm |
| Type of impeller: | Open impeller |
| Max. Particle: | 13 mm |
| Max. hydraulic efficiency: | 51 % |
| Curve tolerance: | NONE |
| Materials: | |
| Pump housing: | Cast iron |
| EN 1561 EN-GJL-200 | |
| Impeller: | Ductile cast iron |
| Motor house: | Cast iron |
| EN 1561 EN-GJL-250 | |
| ASTM A48 35B | |
| Shaft seal: | SIC |
| Secondary shaft seal: | CERAMIC-CARBON |
| Installation: | |
| Range of ambient temperature: | 0 .. 40 °C |
| Maximum operating pressure: | 5.7 bar |
| Type of outlet connection: | DIN |

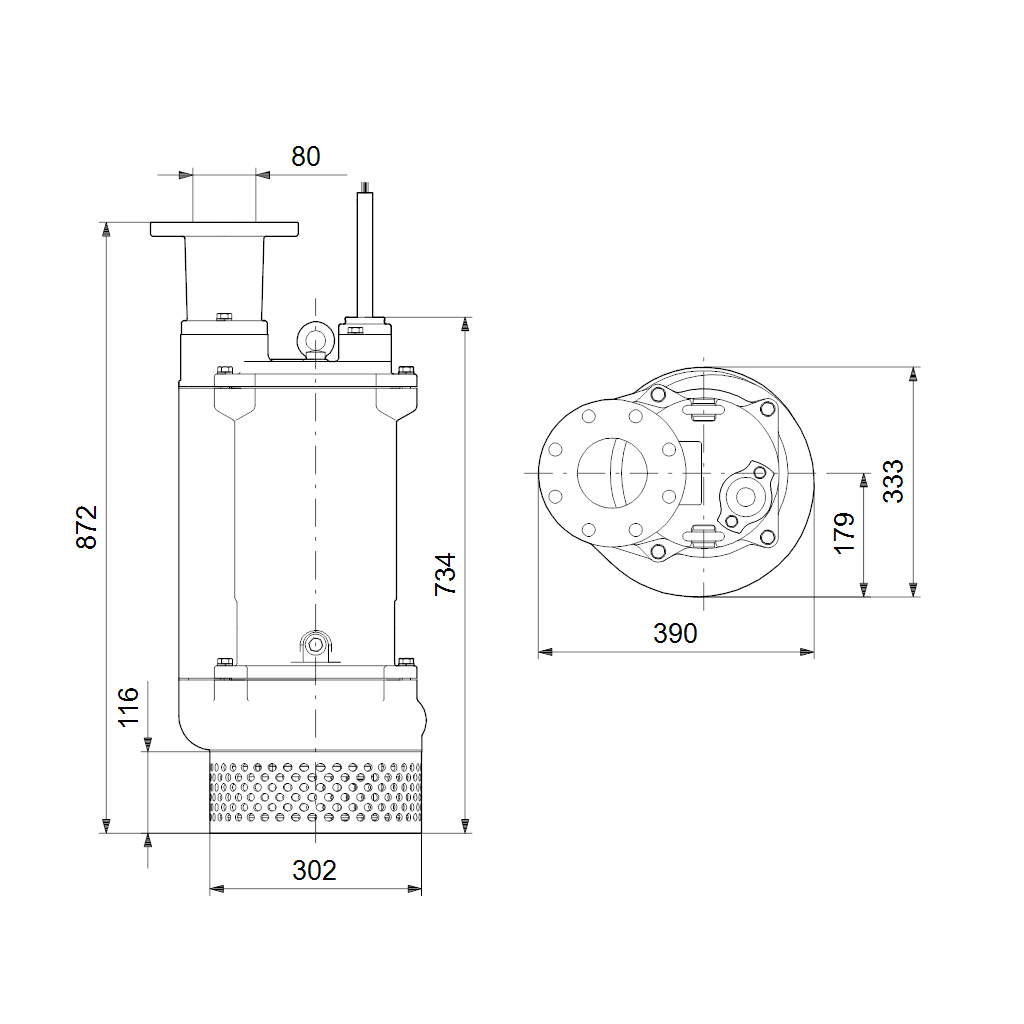

| Size of outlet connection: | DN 80 |
| Pressure rating for outlet connection: | PN 10 |
| Maximum installation depth: | 25 m |
| Electrical data: | |
| Power input P1: | 6.236 kW |
| Rated power - P2: | 5.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-415 V |
| Voltage tolerance: | +5/-5 % |
| Max starts per hour: | 30 |
| Rated current: | 10.5 A |
| Rated current at 3/4 load: | 8 A |
| Rated current at 1/2 load: | 5.9 A |
| Cos phi - power factor: | 0.91 |
| Cos phi - p.f. at 3/4 load: | 0.88 |
| Cos phi - p.f. at 1/2 load: | 0.82 |
| Rated speed: | 2850 rpm |
| Efficiency at full load: | 88.2 % |
| Efficiency at 3/4 load: | 88.8 % |
| Efficiency at 1/2 load: | 88.2 % |
| Number of poles: | 2 |
| Method of start: | DOL |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Explosion proof: | no |
| Built-in motor protection: | PTO |
| Power cable type: | PNCT |
| Length of power cable: | 10 m |
| Others: | |
| Net weight: | 140 kg |
| Gross weight: | 158 kg |
| Shipping volume: | 381 m³ |
| Country of origin: | CN |
| Custom tariff no.: | 84137021 |
