Grundfos UNILIFT AP50B.50.08.A1V
Grundfos UNILIFT AP50B.50.08.A1V

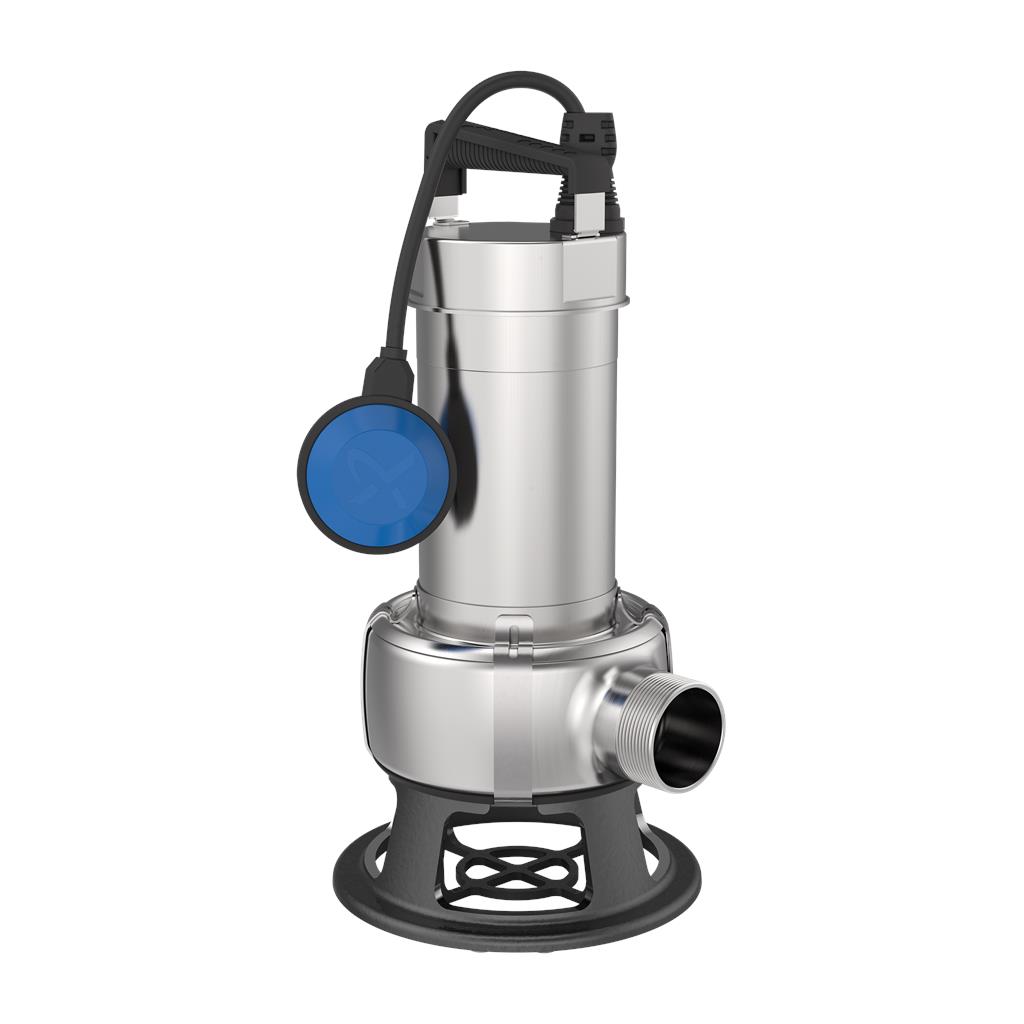

Submersible effluent pump
Vertical single-stage stainless steel submersible pump with integrated submersible 1-phase motor.
The pump is fitted with ring stand and carrying handle and is supplied with a 5 m mains cable and a level switch for automatic start and stop.
The impeller is a VORTEX impeller for 50 mm free passage suitable for pumping surface water, groundwater, wastewater and similar.
The pump has a double shaft seal and an intermediate oil chamber pre-filled with non-toxic special oil.
The motor is insulation class F with thermal overload protection and has long-life deep-groove greased-for-life ball bearings.
The pump has Rp 2 inch discharge port and is ready for installation either free-standing or on an auto-coupling system.
| Specification | Value | |
|---|---|---|
| Liquid: | ||
| Maximum liquid temperature: | 40 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Type of impeller: | VORTEX | |
| Maximum particle size: | 50 mm | |
| Materials: | ||
| Pump housing: | Stainless steel | |
| DIN W.-Nr. 1.4301 | ||
| AISI 304 | ||
| Impeller: | Stainless steel | |
| DIN W.-Nr. 1.4301 | ||
| AISI 304 | ||
| Installation: | ||
| Pump outlet: | R 2" | |
| Maximum installation depth: | 2 m | |
| Auto-coupling: | Y | |
| Electrical data: | ||
| Type of motor: | PSC | |
| Power input - P1: | 1.2 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 1 x 230 V | |
| Rated current: | 5.37 A | |
| Cos phi - power factor: | 0,97 | |
| Rated speed: | 2790 rpm | |
| Capacitor size - run: | 16 µF/400 V | |
| Enclosure class (IEC 34-5): | IP68 | |
| Insulation class (IEC 85): | F | |
| Length of cable: | 5 m | |
| Type of cable plug: | SCHUKO | |
| Others: | ||
| Net weight: | 10.2 kg | |
| Gross weight: | 11.2 kg | |
| Danish VVS No.: | 391272312 | |
| Swedish RSK No.: | 5885936 | |
Applications
- Commercial wastewater — Commercial buildings have vastly different requirements for wastewater transfer. Grundfos supplies wastewater pumps and lift station pumps ensure superior reliability and safety, as well as high efficiency.
- Domestic wastewater — With a series of optimised drainage pump systems, lifting stations and sump pumps, you can gain full control of domestic wastewater.
category
- Submersible wastewater pumpsGrundfos submersible wastewater pumps are designed as sealed units combining a pump and integrated motor that can operate below the surface of wastewater. Submersible wastewater pumps are perfect in permanent installations for efficient removal of wastewater from a property whether from washing machines, sinks and showers or drainage from the garden.
