Nominal cartridge filter type Lenn-LX

Nominal cartridge filter type Lenn-LX

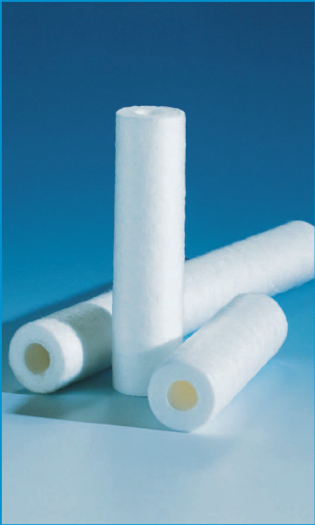

Lenn-LX filter cartridges are made of pure polypropylene (melt blown) micro fibers, thermally bonded to prevent any fiber migration. The filter cartridges do not contain an inner core.
Lenn-LX filter cartridges comply with FDA requirements and are free of any binding agents.
Lenn-LX filter cartridges are depth filters. They have a high pore volume and high dirt holding capacity and are resistant to temperature up to 80°C. The polypropylene material offers excellent chemical compatibility.

Applications Examples:
Water treatment, pure water pre-filtration, edible oils, fine chemicals, resins, reverse osmosis, DI-water, sea water desalination, wine (pre-filtration), beverages, film development, fixing baths, solvents, cosmetics, galvanic baths.

Technical Data:
Filter Fineness (nominal) 1-3-5-10-20-30-50-75 µm
Length: 5" - 40" (50" on request)
Inside Diameter: 28 mm
Outside Diameter: 64 mm
Max. Working Temperature: 80°C
Max. Differential Pressure: 2.5 bar at 30°C

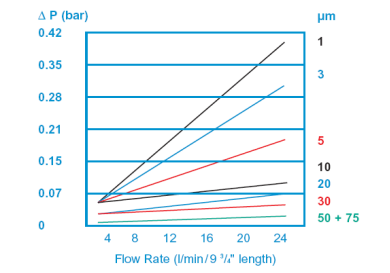

Pressure Drop (∆P)
The table below details the pressure drop-flow rate characteristics of Lenn-LX cartridges flowing water at 20°C. Flow rate is stated as flow per 9 3/4” length. For fluids of other viscosities, multiply the indicated ∆P by
the fluid viscosity in centipoises.
download as PDF file

Explanation product code: LX-20-10”

Filter Fineness: (µm)
1 - 3 - 5 - 10 - 20 - 30 - 50 – 75

Length:
5 = 5" ( 127 mm)
9 = 9 ¾" ( 248 mm)
10 = 10" ( 254 mm)
19 = 19 ½" ( 496 mm)
20 = 20" ( 508 mm)
29 = 29 ¼” ( 744 mm)
30 = 30" ( 762 mm)
39 = 39" ( 992 mm)
40 = 40" (1016 mm)
50 = 50" (1270 mm)

Note: Technical changes possible without prior notice, given data not to understand as warranty figures.
