Chlorine dioxide systems

Chlorine dioxide generator

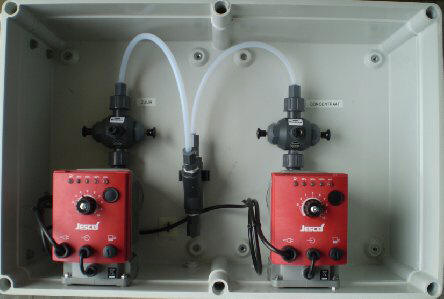

Control panel and dosing pumps
75 g/h

Lenntech ClO2 generators can produce up to 150 g/h of ClO2 for horticulture, bottled water disinfection or CIP applications.
ClO2 concentrations 0.2 to 2.5 mg/L
Water flowrate up to 100 m3/h
Reagent 1 Purogene (NaClO2 at 3.36%)
Reagent 2 HCl 15%

Our ClO2 systems includes:

- 2 dosing pumps in a
- 1 reaction vessel (optional)
- 1 redox probe (optional)
- 1 pump cabinet
- 1 control cabinet
- 1 Pulse flowmeter (optional)
- 1 static mixer
- Chemical drums
- Secondary containers

We strongly recommend to add a ClO2 on-line measurement device to control ClO2 concentration.

More on ClO2 disinfection Recommended concentrations:

Horticulture: 2.5 mg/L
Bottled water: 0.2 mg/L
Drinking water: 0.8 mg/L max.

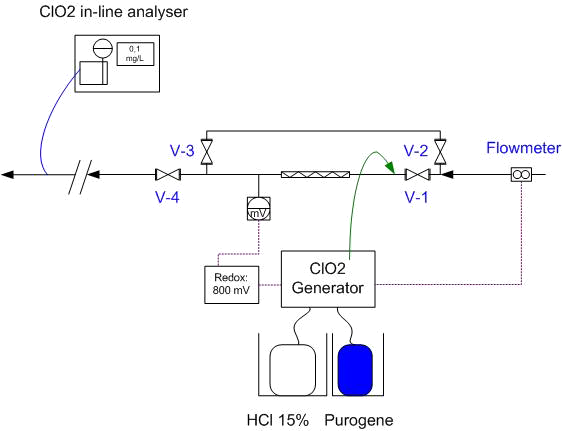

Typical ClO2 injection installation:
