Codeline Parts Membrane Housings

CODELINE® - 40E SERIES - 40E30N, 40E60, 40E100

Drg Reg Qty Description Material 40E30N 40E60 40E100
Part number Part number Part number
1 1 Shell Filament wound Epoxy / glass composites.  Head locking grooves integrally wound in place Order Section Order Section Order Section
2 AR PWT Seal Ethylene propylene – o ring NA As required As required
3 2 Adapter Engineering Thermoplastic NA As required As required
4 2 Adapter Seal Ethylene propylene – o ring 45296 45294 45294
5 2 Permeate Port Engineering Thermoplastic NA NA 47469
6 2 Permeate Port Seal Ethylene propylene – o ring NA NA 45299
7 2 Plug Seal Ethylene propylene – o ring 45317 45317 45317
8 2 Sealing Plate Engineering Thermoplastic NA NA 50481
9 2 Port retainer Set Cf8M Cast SST, Two-piece Set NA NA 50489
10 2 End plug Sub Assembly / bearing plate Engg. Thermoplastic*** / 6061-T6 hard anodized Alum. Alloy 95927***  50312*** 47471
11 2 Port retainer pH 15-7 Mo SST NA NA 45244
12 2 F / C port Seal Ethylene propylene – o ring NA NA 45299
13 2 F / C port unS32750 NA NA 47472
14 2 Retainer Ring 316 Stainless Steel 45260 45260 45260
15 AR Saddle Engineering Thermoplastic 45058 45058 45058
16 AR Strap Assembly 304 Stainless Steel Cushion 47459 47459 47459

CODELINE® - 40S SERIES - 40S30, 40S45, 40S60

Drg Reg Qty Description Material 40S30 40S45 40S60
Part number Part number Part number
1 1 Shell Filament Wound Expoxy / Glass composites.  Head locking grooves integrally wound in place
2 AR F / C port CF8M / CF3M CF8M as required CF3M as required CF3M as required
3 AR F / C port Seal Ethylene propylene - o Ring as required as required as required
4 AR F / C port rETAINER 300 Series Stainless Steel as required as required as required
5 AR PWT Seal Ethylene propylene - o Ring as required as required as required
6 2 Adapter Engineering Thermoplastic as required as required as required
7 2 Adapter Seal Ethylene propylene - o Ring 45296 45296 45296
8 2 Permeate Port Engineering Thermoplastic 96807 96807 96807
9 2 Permeate Port Seal Ethylene propylene - o Ring 45335 45335 45335
10 2 Head Seal Ethylene propylene - o Ring 45317 45317 45317
11 2 Sealing Plate Engineering Thermoplastic 96855 96855 96855
12 2 Bearing Plate 316l Stainless Steel 96803 96803 96803
13 2 Perm Port Retainer 300 Series Stainless Steel 45242 45242 45242
14 2 Retainer Ring 316 Stainless Steel 45260 45260 45260
15 AR Saddle Engineering Thermoplastic 45058 45058 45058
16 AR Strap Assembly 304 Stainless Steel Cushion 47459 47459 47459

CODELINE® - 80E SERIES - 80E30, 80E45, 80E60, 80E100, 80E120

Drg Reg Qty Description Material 80E30 80E45 80E60 80E100 80E120
Part number Part number Part number Part number Part number
1 1 Shell Filament wound Epoxy / glass composites. Head locking grooves integrally wound in place. Order Section Order Section Order Section Order Section Order Section
2 4 PWT Seal Ethylene propylene - o ring As required As required As required As required As required
3 2 Adapter Engineering Thermoplastic As required As required As required As required As required
4 2 Adapter Seal Ethylene propylene – o ring 52245 52245 52245 52245 52245
5 2 Permeate port Engineering Thermoplastic 50608 50569 50569 50558 50558
6 1 Thrust ring Engineering Thermoplastic 45069 45069 45069 45069 45069
7 2 Head Seal Ethylene propylene - o ring 96000 96000 96000 96000 96000
8 2 Perm port Seal Ethylene propylene - o ring 45312 45312 45312 45312 45312
9 2 Sealing plate Engineering Thermoplastic 96003 96003 96003 96003 96003
10 2 Port retainer / Set FC port Seal 45247 45090 45090 45090 45090
11 2 FC port Seal Ethylene propylene - o ring 45312 45312 45312 45312 45312
12 2 Bearing plate 6061-T6 Aluminum Alloy -  Hard Anodized  51050 51051 51052 47317 47317
13 2 Feed / Conc port Stainless Steel 316l** /  Super Duplex Stainless Steel 50607** 50607** 50607** 50556 50556
14 2 Port retainer / port nut Stainless Steel / Engineering Thermoplastic 45247 45066 45066 45066 45066
15 2 Retaining ring 316 Stainless Steel 47336 47336 47336 47336 47336
16 AR Saddle Engineering Thermoplastic 52169 52169 52169 52169 52169
17 AR Strap Assembly 304 Stainless Steel - PVC Cushion 45042 45042 45042 45042 45042
18 AR Strap Screw 5/16-18 UNC, 18-8 Stainless Steel 46265 46265 46265 46265 46265

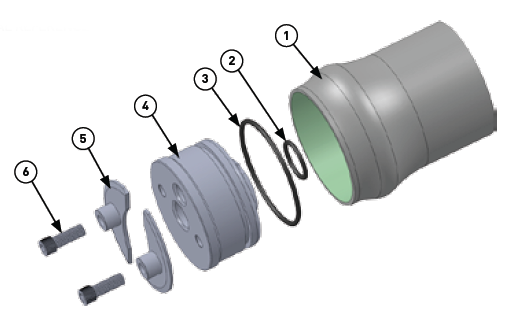

CODELINE® - ECOLINE 25-300

Drg Reg Qty Description Material 25 - 300
Part number
1 1 Shell Filament Wound Expoxy / Glass composite - Head Locking grooves integrally
wound in place.
Order section
2 2 PWT Seal Ethylene Propylene - O Ring 45296
3 2 Head Seal Ethylene Propylene - O Ring 45313
4 2 End Plug Engineering Thermoplastic 96005
5 4 Locking Segment 316 Stainless Steel 50371
6 4 Screw 304 Stainless Steel 45232
7 AR Saddle - Optional Engineering Thermoplastic 45058
8 AR Strap - Optional 304 Stainless Steel - PVC Cushion RO 1057

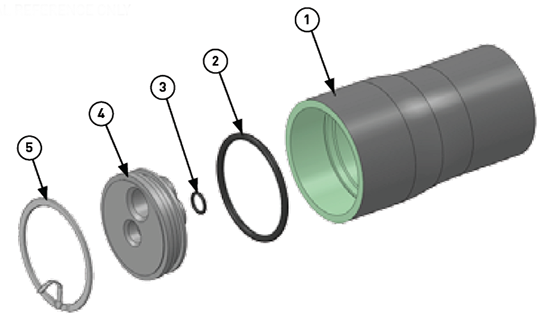

CODELINE® - ECOLINE 40L30N

Drg Reg Qty Description Material 40L30N
Part number
1 1 Shell Filament Wound Expoxy / Glass composite - Head Locking grooves integrally wound in place. Order section
2 2 Head Seal Ethylene Propylene - O Ring 45317
3 2 PWT Seal Ethylene Propylene - O Ring 45296
4 2 End Plug Sub Assembly Engineering Thermoplastic 95929
5 2 Retaining Ring 316 Stainless Steel 46414
6 2 Saddle - optional Engineering Thermoplastic 45058
7 2 Strap Assembly - optional 304 Stainless Steel - PVC Cushion 47459

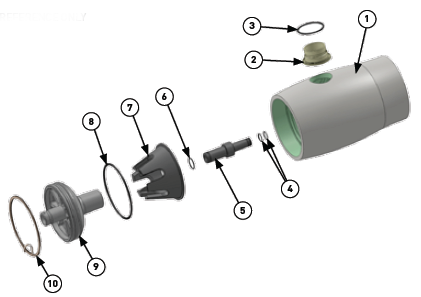

CODELINE® - ECOLINE 8 inch Series 80 - 300, 80 - 450

Drg Reg Qty Description Material 80 - 300 80 -450
part number Part number
1 1 Shell Filament Wound Epoxy / Glass composites.
Head Locking grooves integrally wound in place
Order section Order section
2 AR 1.5 Inch F / C Port CF3M 98024 98024
3 AR 1.5 Inch F / C Port Seal Ethylene Propylene 96077 96077
4 4 PWT Seal Ethylene Propylene – O Ring As required As required
5 2 Adapter Engineering Thermoplastic As required As required
6 2 Adapter Seal Ethylene Propylene – O Ring 52245 52245
7 1 Thrust Cone Engineering Thermoplastic 97014 97014
8 2 Head Seal Ethylene Propylene – O Ring 96000 96000
9 2 Elliptical Head
Sub Assembly
Engineering Thermoplastic 96668 96668
10 2 Retaining Ring 316 Stainless Steel 47336 47336
11 AR Saddle Engineering Thermoplastic 52169 52169
12 AR Strap Assembly 304 Stainless Steel – PVC Cushion 45042 45042
13 AR Strap Screw 5/16-18 UNC, 18-8 Stainless Steel 46265 46265

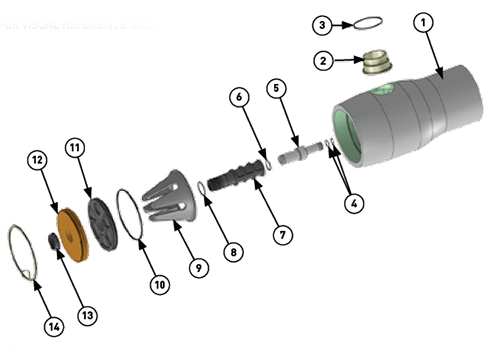

CODELINE® - OCTA 80H Series - 80H15, 80H30, 80H45, 80H60, 80H100, 80H120

Drg Reg Qty Description Material 80H15 80H30 80H45 80H60 80H100
part number part number part number part number part number
1 1 Shell Filament Wound Epoxy / Glass
composites. Head Locking
grooves integrally wound in place
Order
section
Order
section
Order
section
Order
section
Order
section
2 AR F / C Port CF3M / CD3MWCuN CF3M CF3M CF3M CD3MWCuN CD3MWCuN
3 AR F / C Port Seal Ethylene Propylene As required As required As required As required As required
4 4 PWT Seal Ethylene Propylene - O Ring As required As required As required As required As required
5 2 Adapter Engineering Thermoplastic As required As required As required As required As required
6 2 Adapter Seal Ethylene Propylene - O Ring 52245 52245 52245 52245 52245
7 2 Permeate Port Engineering Thermoplastic 96161 96161 96161 96161 96161
8 2 Permeate Port Seal Ethylene Propylene - O Ring 45312 45312 45312 45312 45312
9 1 Thrust Cone Engineering Thermoplastic 96163 96163 96163 96163 96163
10 2 Head Seal Ethylene Propylene - O Ring 96000 96000 96000 96000 96000
11 2 Sealing Plate Engineering Thermoplastic 96159 96159 96159 96159 96159
12 2 Bearing Plate 6061-T6 Aluminum Alloy -
Hard Anodized
96156 96156 96157 96157 96158
13 2 Port Nut Engineering Thermoplastic 45066 45066 45066 45066 45066
14 2 Retaining Ring 316 Stainless Steel 47336 47336 47336 47336 47336
15 AR Saddle Engineering Thermoplastic 52169 52169 52169 52169 52169
16 AR Strap Assembly 304 Stainless Steel - PVC Cushion 45042 45042 45042 45042 45042
17 AR Strap Screw 5/16-18 UNC, 18-8 Stainless Steel 46265 46265 46265 46265 46265

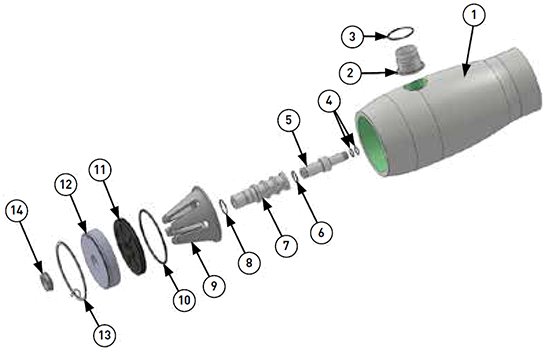

CODELINE® - OCTA 80S Series - 80S15, 80S30, 80S45, 80S60, 80S100, 80S120

Drg Reg Qty Description Material 80S15 80S30 80S45 80S60 80S100
part number part number part number part number part number
1 1 Shell Filament Wound Epoxy / Glass
composites. Head Locking
grooves integrally wound in place.
Order
section
Order
section
Order
section
Order
section
Order
section
2 AR F / C Port CF3M / CD3MWCuN CF3M CF3M CF3M CF3M CD3MWCuN
3 AR F / C Port Seal Ethylene Propylene As required As required As required As required As required
4 4 PWT Seal Ethylene Propylene - O Ring As required As required As required As required As required
5 2 Adapter Engineering Thermoplastic As required As required As required As required As required
6 2 Adapter Seal Ethylene Propylene - O Ring 52245 52245 52245 52245 52245
7 2 Permeate Port Engineering Thermoplastic 96162 96162 96162 96162 96162
8 2 Permeate Port Seal Ethylene Propylene - O Ring 45312 45312 45312 45312 45312
9 1 Thrust Cone Engineering Thermoplastic 96163 96163 96163 96163 96163
10 2 Head Seal Ethylene Propylene - O Ring 96000 96000 96000 96000 96000
11 2 Sealing Plate Engineering Thermoplastic 96160 96160 96160 96160 96160
12 2 Bearing Plate 6061-T6 Aluminum Alloy -
Hard Anodized
96156 96156 96157 96157 96158
13 2 Retaining Ring 316 Stainless Steel 47336 47336 47336 47336 47336
14 2 Port Nut Engineering Thermoplastic 45066 45066 45066 45066 45066
15 AR Saddle Engineering Thermoplastic 52169 52169 52169 52169 52169
16 AR Strap Assembly 304 Stainless Steel - PVC Cushion 45042 45042 45042 45042 45042
17 AR Strap Screw 5/16-18 UNC, 18-8 Stainless Steel 46265 46265 46265 46265 46265

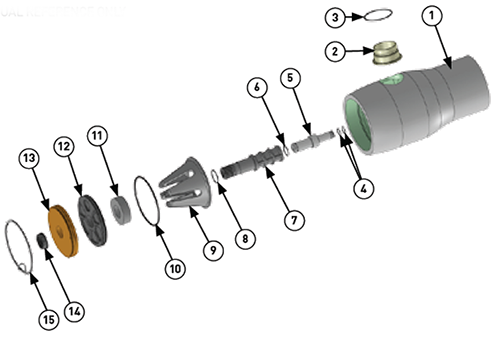

CODELINE® - OCTA 80U Series - 80U30, 80U45, 80U60

Drg Reg Qty Description Material 80U30 80U45 80U60
part number part number part number
1 1 Shell Filament Wound Epoxy / Glass composites.
Head Locking grooves integrally wound in place.
Order section Order section Order section
2 AR F / C Port CF3M As required As required As required
3 AR F / C Port Seal Ethylene Propylene As required As required As required
4 4 PWT Seal Ethylene Propylene - O Ring As required As required As required
5 2 Adapter Engineering Thermoplastic As required As required As required
6 2 Adapter Seal Ethylene Propylene - O Ring 52245 52245 52245
7 2 Permeate Port Engineering Thermoplastic 96263 96263 96263
8 2 Permeate Port Seal Ethylene Propylene - O Ring 45312 45312 45312
9 1 Thrust Cone Engineering Thermoplastic 96163 96163 96163
10 2 Head Seal Ethylene Propylene - O Ring 96000 96000 96000
11 2 Spacer Engineering Thermoplastic 96262 96262 96262
12 2 Sealing Plate Engineering Thermoplastic 96159 96159 96159
13 2 Bearing Plate 6061-T6 Aluminium Alloy - Hard Anodized 96156 96157 96157
14 2 Port Nut Engineering Thermoplastic 45066 45066 45066
15 2 Retaining Ring 316 Stainless Steel 47336 47336 47336
16 AR Saddle Engineering Thermoplastic 52169 52169 52169
17 AR Strap Assembly 304 Stainless Steel - PVC Cushion 45042 45042 45042
18 AR Strap Screw 5/16-18 UNC, 18-8 Stainless Steel 46265 46265 46265
CodeLine Sparepart list

For RO design questions and engineering calculations and manuals or handbooks please contact us at info@lenntech.com. Lenntech also supplies the reverse osmosis membranes from Knappe Composites, Dow Filmtec, Koch, Toray, Trisep, Phoenix, Ropur, GE-Osmonics & Hydranautics. Lenntech the water purification manufacturer
