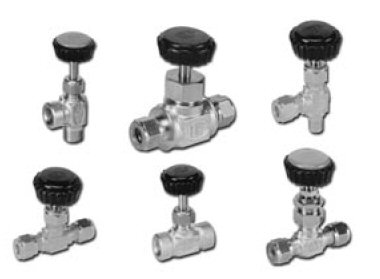

HOKE Needle valves 3700, 3800 & 3900 Series

3700 , 3800 and 3900 Series:
Forged Body, Integral Bonnet Needle Valves

Offered in four different body materials, this group of valves can handle a wide range of general purpose liquid and gas applications. Six types of stem tips are available, including two styles of vee-points.

Typical Applications
Instrument air lines Sampling Gas chromatography Test stands Cylinder valves
Technical Data
BODY:	316 stainless steel, Monel®, carbon steel, brass
MAXIMUM OPERATING PRESSURE:	316 stainless steel, Monel®, carbon steel: 345 Bar @ 21° C Brass: 207 Bar @ 21° C
OPERATING TEMPERATURE RANGE:	Metal stem tip: -54° to +232° C PCTFE stem tip: -29° to +121° C
ORIFICE:	1.5 mm to 7.9 mm
Cv FACTOR:	0.07 to 1.10

Safety

Integral bonnet provides differential thread pitch between stem threads and packing nut thread preventing accidental stem removal

Stem tip options

Helps eliminate fugitive emissions

Dyna-Pak® packing provides a leak-tight seal with low operating torque in deep vacuum or high pressure applications

Dependability

Installation variety

Broad selection of male NPT, female NPT, and HOKE Gyrolok® fractional or metric tube fitting connections

Handle options

Panel mounting available

Easy maintenance

All models can be panel mounted without packing disruption. Packing can be adjusted without removal from panel
